Hayauchi 6.3 Replacement Parts
SKU: Silky Fox | SF-177-02-03
Key Features
- 27 individual Hayauchi 6.3 replacement parts

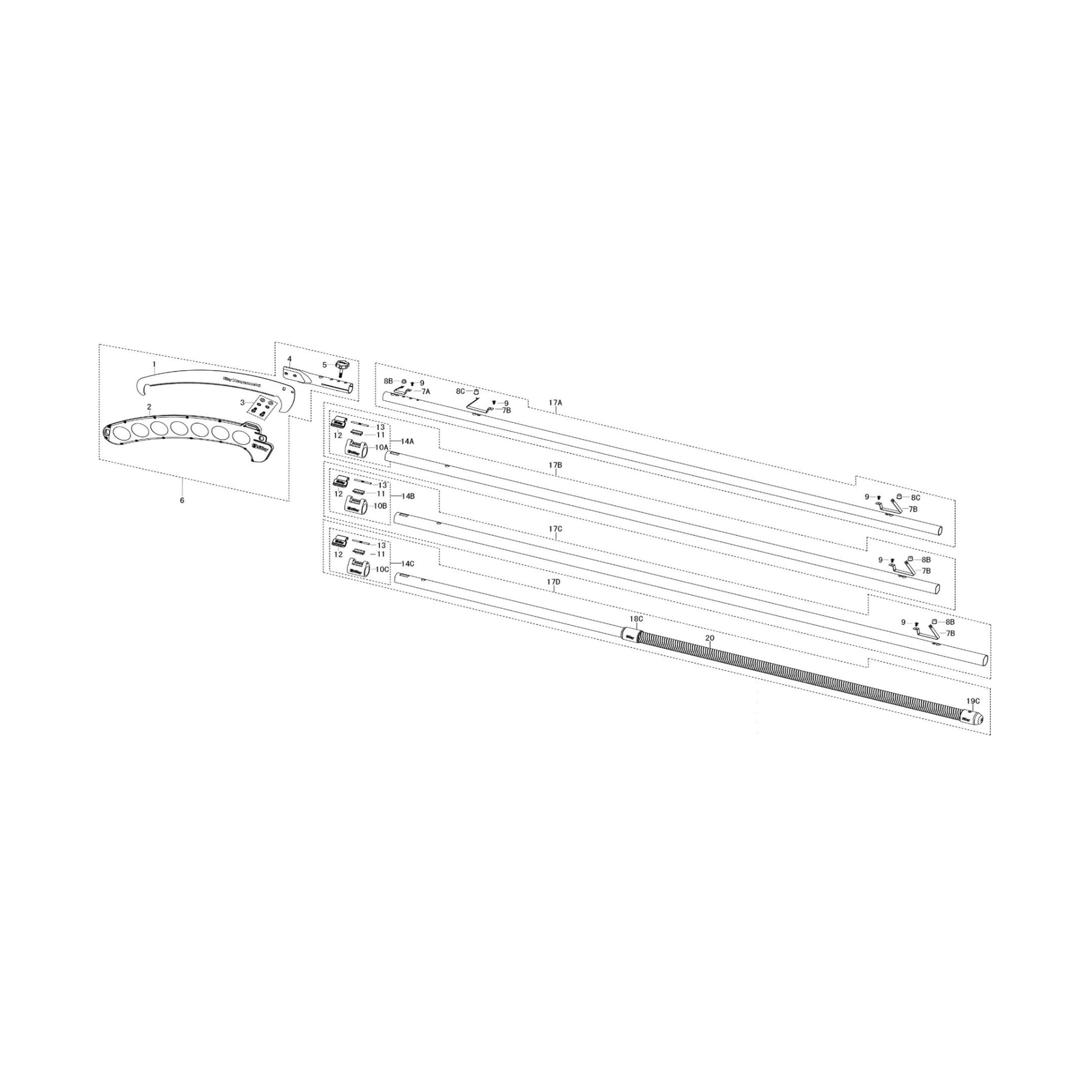

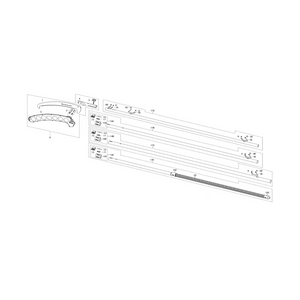

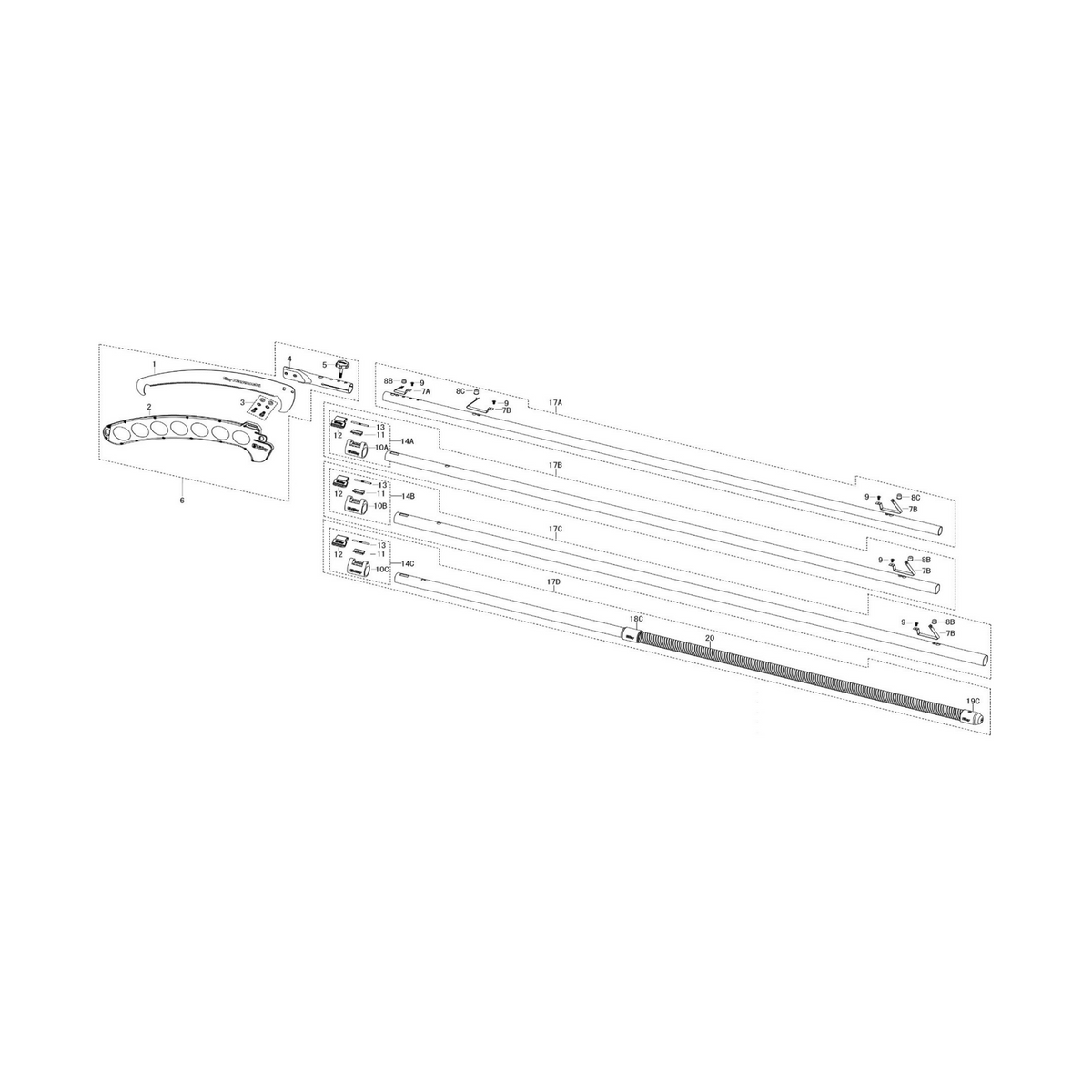

- Ref numbers match the exploded parts diagram
- Blade, cover, poles, shaking-proof parts and fixings
- Choose the exact part from the Part option
- Regular price
- $85.00
- Sale price
- $85.00 $85.00 Ex VAT
- Regular price
-
Saturday delivery (), £13.99 ex VAT
Seaton Burn, Newcastle upon Tyne,
Tyne and Wear, NE13 6DA
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications
Silky Hayauchi 6.3 Pole Saw Replacement Parts
Keep your Silky Hayauchi 6.3 (6300) pole saw working like new by replacing only the part that has worn or broken. Choose from 27 individual parts, from the 390 blade and cover to the telescopic poles, shaking-proof components, push buttons and fixings. Reference numbers match the exploded parts diagram so you can pick the exact part.
Silky is a Japanese precision saw brand with a long-standing reputation among professional arborists. Gustharts is an authorised Silky Fox dealer.
Check before ordering: match the Ref number on the parts diagram to the option you select. Part codes are listed in the table below and on the product page.
Updated parts: Ref 5 (bolt fixing pipe) and Ref 7A (spring push button) are the new 2011 versions. Ref 7B is the earlier spring push button, so compare against your saw before ordering.
Hayauchi 6.3 Parts Guide
Select your part from the Part option. Poles run from the upper section (Ref 17A) down to the lower section (Ref 17D), and the complete blade with cover and pipe (Ref 6) and pole-only (SF-177-00-24) options cover larger replacements.
| Ref | Part | Part Code |
|---|---|---|
| 1 | Blade Hayauchi 390 | SF-177-02-03 |
| 2 | Cover Hayauchi 390 | SF-177-04-02 |
| 3 | Boltset Blade Assembling | SF-KZSI177001-4N |
| 4 | Blade Fixing Pipe | SF-KZSI177013 |
| 5 | Bolt Fixing Pipe (new 2011) | SF-KZSI1770450 |
| 6 | Blade Complete with Cover & Pipe | SF-177-02-41 |
| 7A | Spring Push Button (new 2011) | SF-KZSI1770448 |
| 7B | Spring Push Button | SF-KZSI3700478 |
| 8B | Push Button Middle | SF-KZSI1770459/96 |
| 8C | Push Button Large | SF-KZSI1770497 |
| 9 | Spring Fixing Bolt | SF-KZSI3700477 |
| 10A | Shaking-Proof Cover Small | SF-KZSI1770466 |
| 10B | Shaking-Proof Cover Middle | SF-KZSI1770467 |
| 10C | Shaking-Proof Cover Large | SF-KZSI1770472 |
| 11 | Shaking-Proof Spacer | SF-KZSI1770468/71 |
| 12 | Shaking-Proof Red Lever | SF-KZSI1770469 |
| 13 | Shaking-Proof Rod Pin | SF-KZSI3700470 |
| 14A | Shaking-Proof Stopper Set Small | SF-KZSI1773952 |
| 14B | Shaking-Proof Stopper Set Middle | SF-KZSI1773953 |
| 14C | Shaking-Proof Stopper Set Large | SF-KZSI1773954 |
| 17A | Upper Pole 6300 | SF-KZSI1770474 |
| 17B | Middle/Upper Pole 6300 | SF-KZSI1770475 |
| 17C | Middle/Lower Pole 6300 | SF-KZSI1770476 |
| 17D | Lower Pole 6300 | SF-KZSI1770477 |
| 19C | Rubber Sole | SF-KZSI1770495 |
| 20 | Rubber Grip Tape | SF-KZSI1770402 |
| - | Pole Only 6300 | SF-177-00-24 |
Why Buy Individual Parts?
A worn push button, a lost bolt or a damaged shaking-proof cover does not mean a new pole saw. Replacing just the failed part keeps a well-built Hayauchi in service for far longer and costs a fraction of a new unit. The shaking-proof stopper sets come in small, middle and large sizes, so match the size to the pole section on your saw using the diagram.
Often Replaced Alongside
Often replaced alongside: the Hayauchi Replacement Blade, the Hayauchi Head Complete and the Hayauchi Blade Scabbard.
Also Known As
Also searched for as: Silky Hayauchi spare parts, Hayauchi 6300 parts, Hayauchi 6.3 replacement parts, Silky pole saw spares, Hayauchi pole saw pole sections.
FAQs
How do I find the right part number?
Use the Ref number on the exploded parts diagram, then select the matching option from the Part list. Each option shows its Ref and name.
Which pole section do I need?
Ref 17A is the upper pole, 17B the middle/upper, 17C the middle/lower and 17D the lower pole. Check the diagram against your saw to see which section is damaged.
Do I need the whole blade assembly or just the blade?
If only the blade is worn, choose Ref 1. Ref 6 supplies the blade complete with cover and pipe, for when more of the blade end needs replacing.
What size shaking-proof stopper set do I need?
Stopper sets (Ref 14A, 14B, 14C) and covers (Ref 10A, 10B, 10C) come in small, middle and large. Check the diagram against your saw to pick the matching size.
Are these parts for the Hayauchi 6.3 only?
This listing covers the Hayauchi 6.3 (6300) parts diagram, including the 6300 pole sections.
