シンブルアンカーコンポーネント 8mm
SKU: DMM | DD-S2908
Key Features
- 17-4 PH stainless steel construction
- Protects textile and wire cordage from abrasion
- Maintains consistent bend radius and load distribution
- Corrosion resistant for outdoor use
- Regular price
- £16.87 Ex VAT
- £20.24 Inc VAT
- RRP: £18.75 Ex VATSave 10%
- Sale price
- £16.87 £16.87 Ex VAT
- Regular price
-
- £20.24 £20.24 Inc VAT
Seaton Burn, Newcastle upon Tyne,
Tyne and Wear, NE13 6DA
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Highlights
-

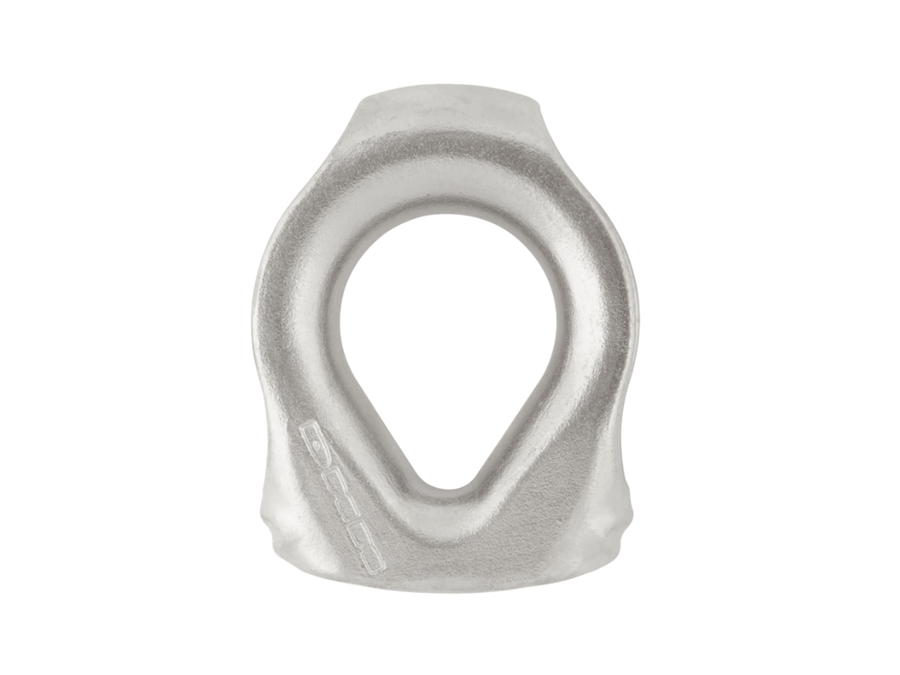

17-4 PH stainless steel
Manufactured from 17-4 PH stainless steel for durability and corrosion resistance in outdoor, professional use.
-

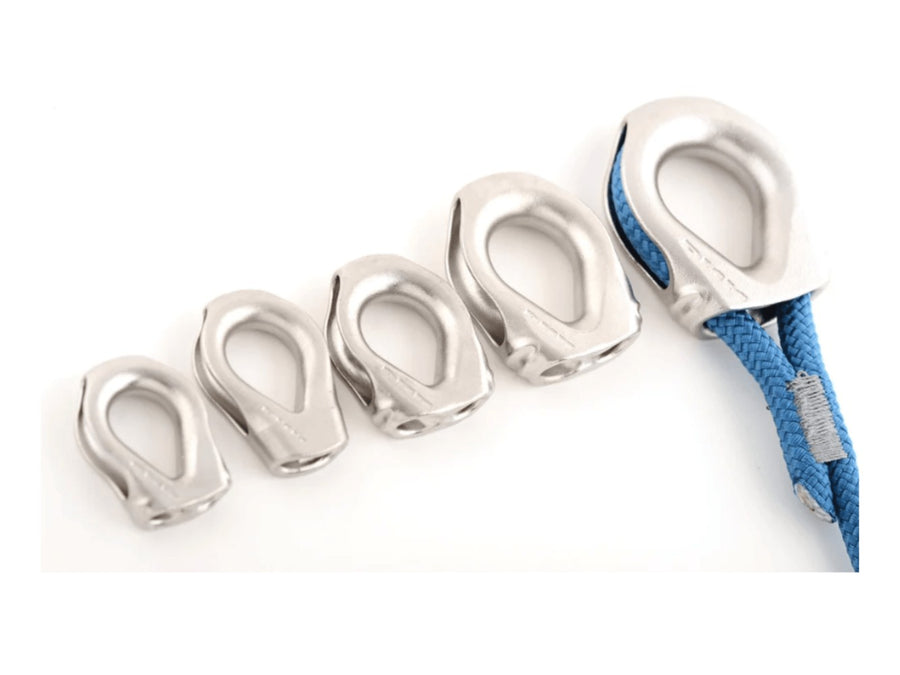

Protects rope and wire
Protects both textile ropes and wire cordage from abrasion, keeping rope shape and load distribution at connection points.
-

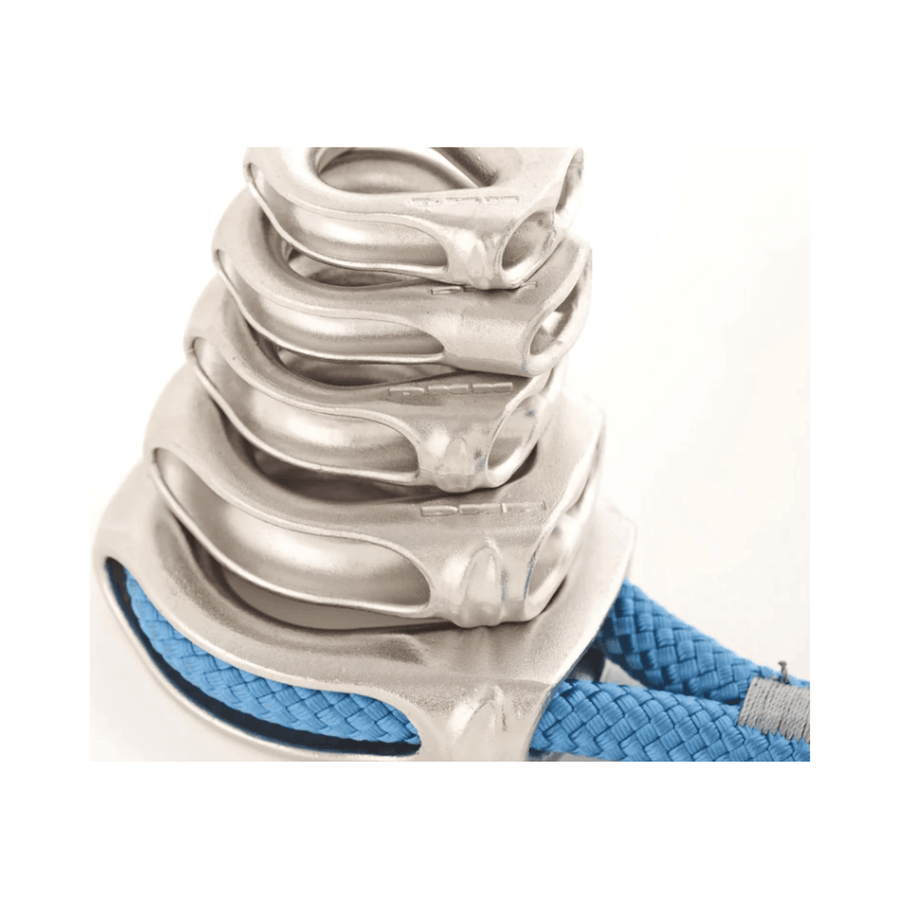

For rigging systems
Suited to rigging and mechanical advantage systems, helping extend rope life at high-wear points.
製品情報と仕様
DMMシンブルシリーズは、高強度、低摩擦、耐腐食性を備えた端末処理を必要とするあらゆるシステムに組み込むために開発されました。金属コードにも繊維コードにも同様に使用できる当社のシンブルは、両方のストランドにかかる荷重を均等化するだけでなく、摩耗や過度の曲げ半径による損傷からコードを保護します。
メインアイの内面は極めて滑らかな仕上げで、コンパクトでシンプルなメカニカルアドバンテージシステムのリギングを容易にし、張力線などの上でのスムーズな走行を促進します。オープンサイドのロープチャネルにより、索具の点検が容易です。ステンレススチールを精密鋳造し、手作業で仕上げ、電解研磨を施しています。
仕様
強度 寸法 重量
シンブル 8mm 40kN 60 x 44 x 17mm 86g
シンブル 8mm (タブ) 40kN 60 x 44 x 17mm 92g
シンブル 10mm 40kN 71 x 53 x 18mm 136g
| Product Type | Rope / wire thimble |
|---|---|
| Material | 17-4 PH stainless steel |
| Primary Function | Protects cordage from abrasion and supports load distribution |
| Compatibility | Textile ropes and wire cordage |
| Thimble Standard 6mm (S2900) | 6mm x 19mm, 56g |
| Thimble Standard 8mm (S2908) | 8mm x 24.5mm, 86g |
| Thimble With Tab 8mm (S2908T) | 8mm x 24.5mm, 92g |
| Thimble Standard 10mm (S2910) | 10mm x 29mm, 136g |
| Thimble Standard 12mm (S2912) | 12mm x 34mm, 232g |
DMMシンブルシリーズは、高強度、低摩擦、耐腐食性を備えた端末処理を必要とするあらゆるシステムに組み込むために開発されました。金属コードにも繊維コードにも同様に使用できる当社のシンブルは、両方のストランドにかかる荷重を均等化するだけでなく、摩耗や過度の曲げ半径による損傷からコードを保護します。
メインアイの内面は極めて滑らかな仕上げで、コンパクトでシンプルなメカニカルアドバンテージシステムのリギングを容易にし、張力線などの上でのスムーズな走行を促進します。オープンサイドのロープチャネルにより、索具の点検が容易です。ステンレススチールを精密鋳造し、手作業で仕上げ、電解研磨を施しています。
仕様
強度 寸法 重量
シンブル 8mm 40kN 60 x 44 x 17mm 86g
シンブル 8mm (タブ) 40kN 60 x 44 x 17mm 92g
シンブル 10mm 40kN 71 x 53 x 18mm 136g
| Product Type | Rope / wire thimble |
|---|---|
| Material | 17-4 PH stainless steel |
| Primary Function | Protects cordage from abrasion and supports load distribution |
| Compatibility | Textile ropes and wire cordage |
| Thimble Standard 6mm (S2900) | 6mm x 19mm, 56g |
| Thimble Standard 8mm (S2908) | 8mm x 24.5mm, 86g |
| Thimble With Tab 8mm (S2908T) | 8mm x 24.5mm, 92g |
| Thimble Standard 10mm (S2910) | 10mm x 29mm, 136g |
| Thimble Standard 12mm (S2912) | 12mm x 34mm, 232g |
