Silky Hayate 5.0 Pole Saw Replacement Parts

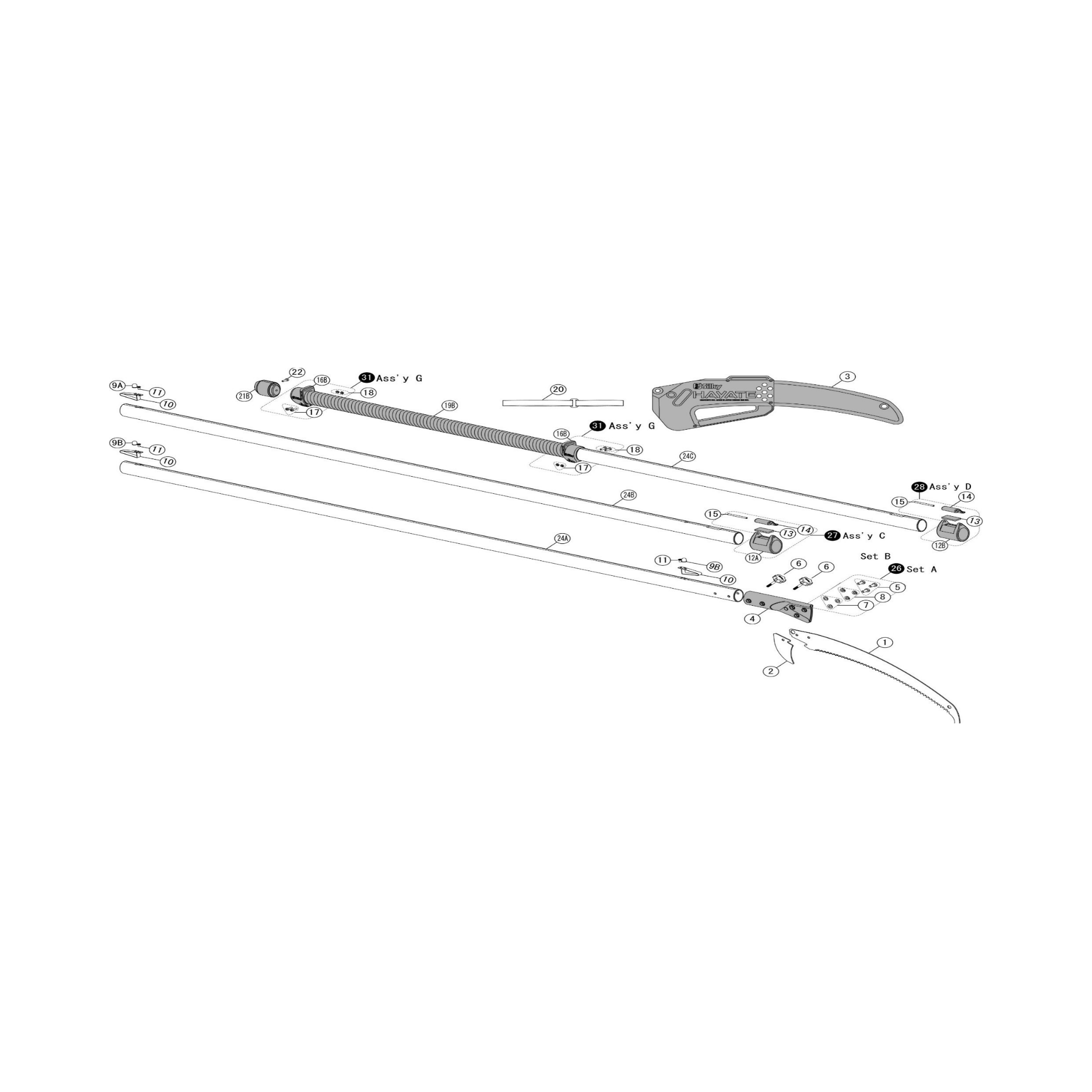

Keep your Silky Hayate 5.0 (5000) pole saw working like new by replacing only the part that has worn or broken. Choose from 29 individual parts, from the cutting blade and cover to the telescopic poles, clamp housings, push buttons and fixings. Reference numbers match the exploded parts diagram so you can pick the exact part.
Silky is a Japanese precision saw brand with a long-standing reputation among professional arborists. Gustharts is an authorised Silky Fox dealer.
Check before ordering: match the Ref number on the parts diagram to the option you select. Part codes are listed in the table below and on the product page.
Blade fixing bolts (Ref 6): two bolts are required, so order a quantity of 2 if you are replacing both.
Hayate 5.0 Parts Guide
Select your part from the Part option. Poles run from the upper section (Ref 24A) down to the lower section (Ref 24C), and the complete head (SF-374-42) and pole-only (SF-371-43) options cover larger replacements.
| Ref | Part | Part Code |
|---|---|---|
| 1 | Blade Hayate 420-6.5 | SF-373-42 |
| 2 | Sickle Hayate | SF-375-42 |
| 3 | Cover Hayate | SF-370-04-02 |
| 4 | Yellow Pipe | SF-KZSI3700091 |
| 6 | Bolt Yellow Pipe (2 required) | SF-KZSI3700441 |
| 9A | Push Button Middle | SF-KZSI1770459/96 |
| 9B | Push Button Large | SF-KZSI1770497 |
| 10 | Spring Push Button | SF-KZSI3700478 |
| 11 | Spring Fixing Bolt | SF-KZSI3700477 |
| 12A | Cramp Housing (S) | SF-KZSI3700461 |
| 12B | Cramp Housing (M) | SF-KZSI3700462 |
| 13 | Spacer | SF-KZSI3700472 |
| 14 | Lever | SF-KZSI3700471 |
| 15 | Rod Pin | SF-KZSI3700470 |
| 31/16B | Bracket (M) 5000 (Assy G) | SF-KZSI3703957 |
| 17 | Bracket Bolt | SF-KZSI3700435 |
| 18 | Bracket Nut | SF-KZSI3700436 |
| 19B | Rubber Grip Tape 5000/6100/7700 | SF-KZSI3700422 |
| 20 | Strap | SF-KZSI3700420 |
| 21B | Rubber Sole 5000 | SF-KZSI3700465 |
| 22 | Bolt Rubber Sole | SF-KZSI3700437 |
| 24A | Upper Pole 5000 | SF-KZSI3700033 |
| 24B | Middle Pole 5000 | SF-KZSI3700034 |
| 24C | Lower Pole 5000 | SF-KZSI3700035 |
| 26 | Boltset Blade Assembling (Set A) | SF-KZSI3703959 |
| 27 | Cramp Housing (S) (Assy C) | SF-KZSI3703953 |
| 28 | Cramp Housing (M) (Assy D) | SF-KZSI3703954 |
| - | Pole Only 5000 | SF-371-43 |
| - | Hayate Complete Head | SF-374-42 |
Why Buy Individual Parts?
A worn push button, a lost bolt or a cracked cramp housing does not mean a new pole saw. Replacing just the failed part keeps a well-built Hayate in service for far longer and costs a fraction of a new unit. The numbered assemblies (Set A, Assy C, D and G) are the quickest route when several related fixings need replacing together, and the diagram shows which small parts each one groups.
Often Replaced Alongside
Often replaced alongside: the Hayate Pole Saw Replacement Blade, the Hayate Pole Saw Replacement Head Complete and the Hayate Blade Scabbard.
Also Known As
Also searched for as: Silky Hayate spare parts, Hayate 5000 parts, Hayate 5.0 replacement parts, Silky pole saw spares, Hayate pole saw pole sections.
FAQs
How do I find the right part number?
Use the Ref number on the exploded parts diagram, then select the matching option from the Part list. Each option shows its Ref and name.
Which pole section do I need?
Ref 24A is the upper pole, 24B the middle pole and 24C the lower pole. Check the diagram against your saw to see which section is damaged.
Do I need to replace the whole head?
Not usually. If only the blade or small fixings are worn, replace those parts. The Hayate Complete Head option is for when the whole cutting head needs replacing.
How many blade fixing bolts do I need?
Two bolts (Ref 6) are required, so order a quantity of 2.
Are these parts for the Hayate 5.0 only?
This listing covers the Hayate 5.0 (5000) parts diagram. Ref 19B grip tape is listed for the 5000, 6100 and 7700 models.
