Hayauchi 367 Replacement Parts
SKU: Silky Fox | SF-177-02-03
Key Features
- 20 individual Hayauchi 367 replacement parts

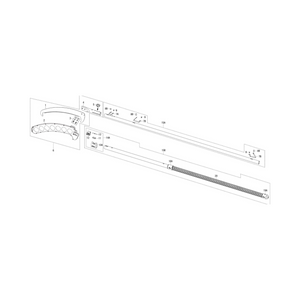

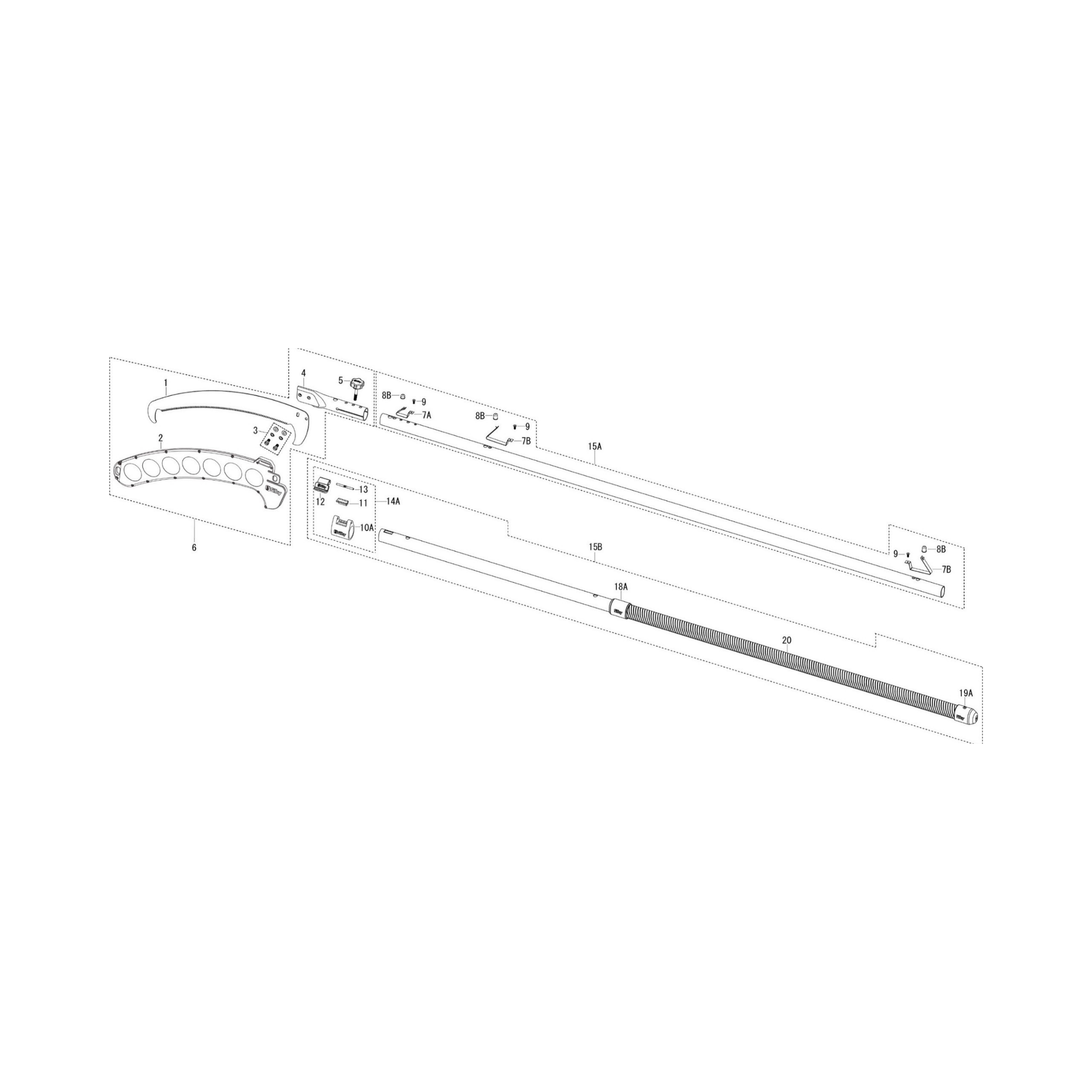

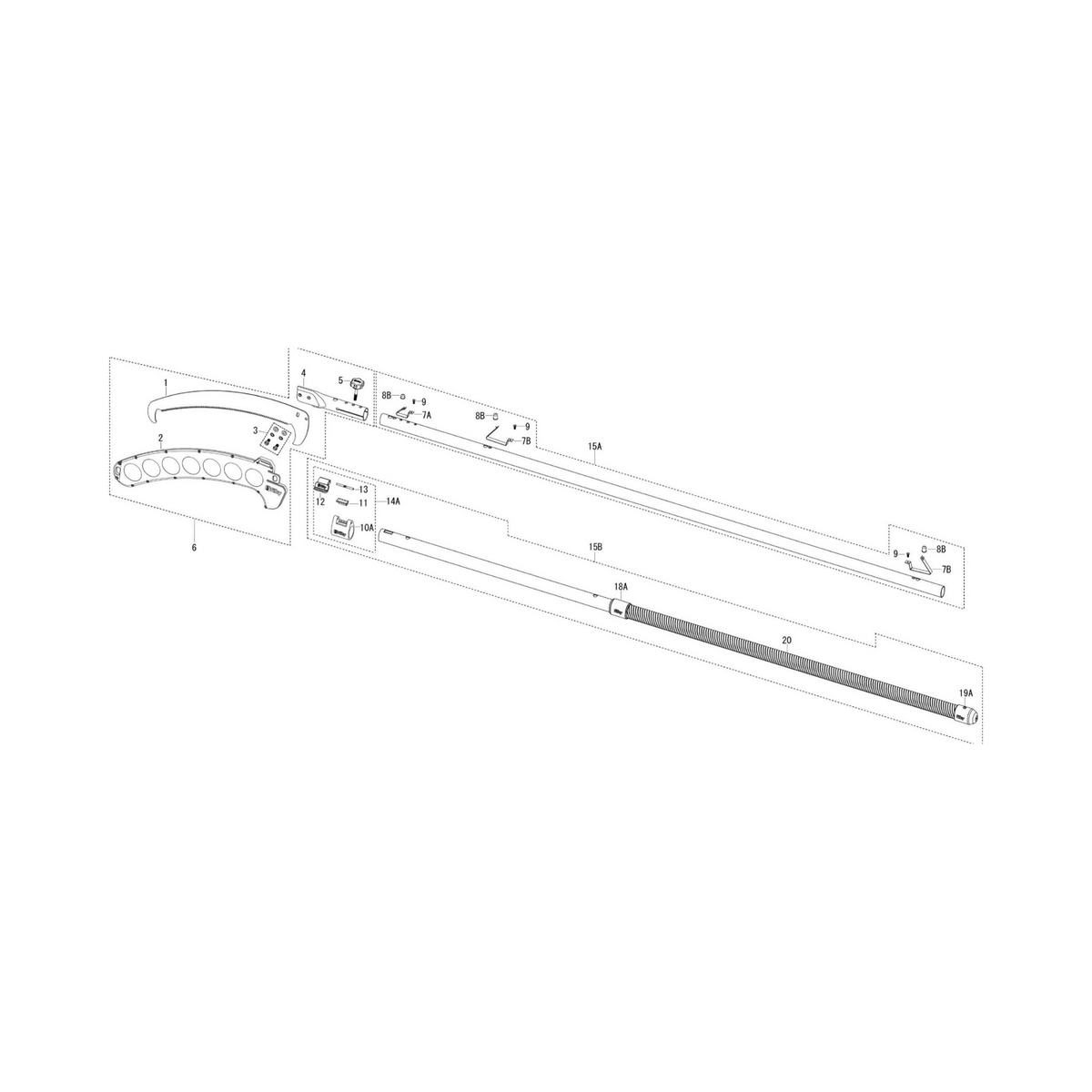

- Ref numbers match the exploded parts diagram
- Blade, cover, poles, shaking-proof parts and fixings
- Choose the exact part from the Part option
- Regular price
- £62.01 Ex VAT
- £74.41 Inc VAT
- RRP: £68.89 Ex VATSave 9%
- Sale price
- £62.01 £62.01 Ex VAT
- Regular price
-
- £74.41 £74.41 Inc VAT
Saturday delivery (), £13.99 ex VAT
Seaton Burn, Newcastle upon Tyne,
Tyne and Wear, NE13 6DA
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
產品資訊和規格
Silky Hayauchi 367 Pole Saw Replacement Parts
Keep your Silky Hayauchi 367 (3670) pole saw working like new by replacing only the part that has worn or broken. Choose from 20 individual parts, from the 390 blade and cover to the telescopic poles, shaking-proof components, push buttons and fixings. Reference numbers match the exploded parts diagram so you can pick the exact part.
Silky is a Japanese precision saw brand with a long-standing reputation among professional arborists. Gustharts is an authorised Silky Fox dealer.
Check before ordering: match the Ref number on the parts diagram to the option you select. Part codes are listed in the table below and on the product page.
Updated parts: Ref 5 (bolt blade pipe) and Ref 7A (spring push button) are the new 2011 versions. Ref 7B is the earlier spring push button, so compare against your saw before ordering.
Hayauchi 367 Parts Guide
Select your part from the Part option. Poles run from the upper section (Ref 15A) to the lower section (Ref 15B), and the complete blade with cover and pipe (Ref 6) and pole-only (SF-177-00-21) options cover larger replacements.
| Ref | Part | Part Code |
|---|---|---|
| 1 | Blade Hayauchi 390 | SF-177-02-03 |
| 2 | Cover Hayauchi 390 | SF-177-04-02 |
| 3 | Boltset Blade Assembling | SF-KZSI177001-4N |
| 4 | Blade Fixing Pipe | SF-KZSI177013 |
| 5 | Bolt Blade Pipe (new 2011) | SF-KZSI1770450 |
| 6 | Blade Complete with Cover & Pipe | SF-177-02-41 |
| 7A | Spring Push Button (new 2011) | SF-KZSI1770448 |
| 7B | Spring Push Button | SF-KZSI3700478 |
| 8B | Push Button Middle | SF-KZSI1770459/96 |
| 9 | Spring Fixing Bolt | SF-KZSI3700477 |
| 10A | Shaking-Proof Cover Small | SF-KZSI1770466 |
| 11 | Shaking-Proof Spacer | SF-KZSI1770468/71 |
| 12 | Shaking-Proof Lever | SF-KZSI1770469 |
| 13 | Shaking-Proof Rod Pin | SF-KZSI3700470 |
| 14A | Shaking-Proof Stopper Set Small | SF-KZSI1773952 |
| 15A | Upper Pole 3670 | SF-KZSI1770460 |
| 15B | Lower Pole 3670 | SF-KZSI1770461 |
| 19A | Rubber Sole | SF-KZSI1770493 |
| 20 | Rubber Grip Tape | SF-KZSI1770402 |
| - | Pole Only 3670 | SF-177-00-21 |
Why Buy Individual Parts?
A worn push button, a lost bolt or a damaged shaking-proof cover does not mean a new pole saw. Replacing just the failed part keeps a well-built Hayauchi in service for far longer and costs a fraction of a new unit. The shaking-proof cover and stopper set are the small size, so check them against your saw using the diagram.
Often Replaced Alongside
Often replaced alongside: the Hayauchi Replacement Blade, the Hayauchi Head Complete and the Hayauchi Blade Scabbard.
Also Known As
Also searched for as: Silky Hayauchi spare parts, Hayauchi 3670 parts, Hayauchi 367 replacement parts, Silky pole saw spares, Hayauchi pole saw pole sections.
FAQs
How do I find the right part number?
Use the Ref number on the exploded parts diagram, then select the matching option from the Part list. Each option shows its Ref and name.
Which pole section do I need?
Ref 15A is the upper pole and 15B the lower pole. Check the diagram against your saw to see which section is damaged.
Do I need the whole blade assembly or just the blade?
If only the blade is worn, choose Ref 1. Ref 6 supplies the blade complete with cover and pipe, for when more of the blade end needs replacing.
What is the difference between Ref 7A and 7B?
Ref 7A is the new 2011 spring push button and Ref 7B is the earlier version. Compare against the button on your saw to pick the right one.
Are these parts for the Hayauchi 367 only?
This listing covers the Hayauchi 367 (3670) parts diagram, including the 3670 pole sections.
