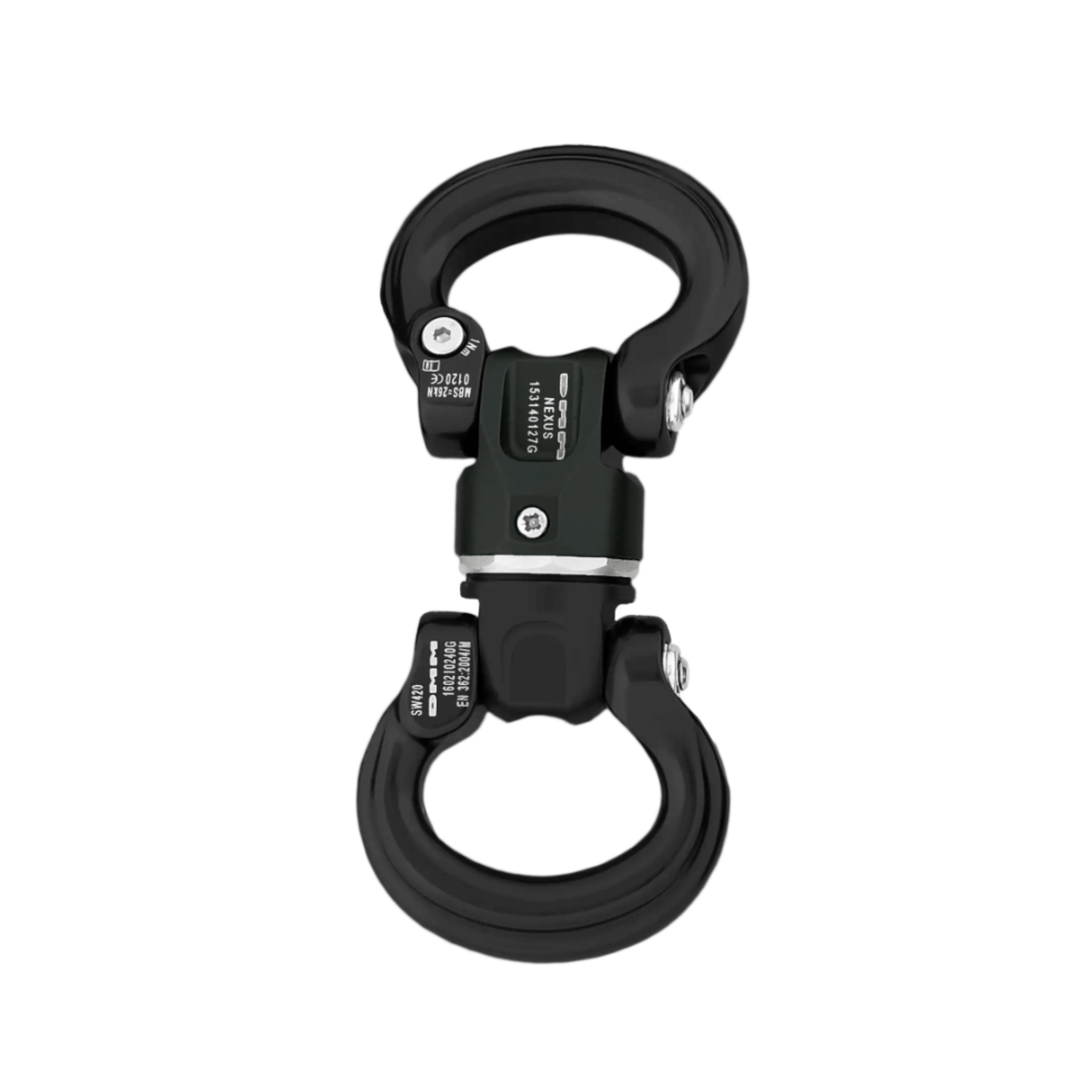

DMM Nexus Swivel – Titanium / Grey
The DMM Nexus Swivel delivers maximum torsion management in an ultra-compact, height-saving design. Featuring shackles on both sides, the Nexus creates a rotational element that integrates easily into systems where overall length must be kept to a minimum. It is ideal for advanced arborist climbing systems, rigging setups, and rescue configurations requiring smooth, predictable rotation under load.
Available in three configurations — D-shackle, Bow-shackle or a mixed D/Bow combination — the Nexus offers full flexibility depending on your connection layout. The small D-shackle keeps inline attachments compact and controlled, while the Bow-shackle provides increased internal volume to accommodate more complex loading or multi-attachment systems.
Hot-forged aluminium shackles, CNC-machined swivel bodies and roller thrust bearings deliver smooth, reliable rotation. The user-maintainable grease port extends bearing life, while double-locking stainless-steel axles ensure secure, durable performance in demanding professional environments. Available in Titanium and Grey finishes.
Key Features
- Low-profile swivel with shackles on both sides

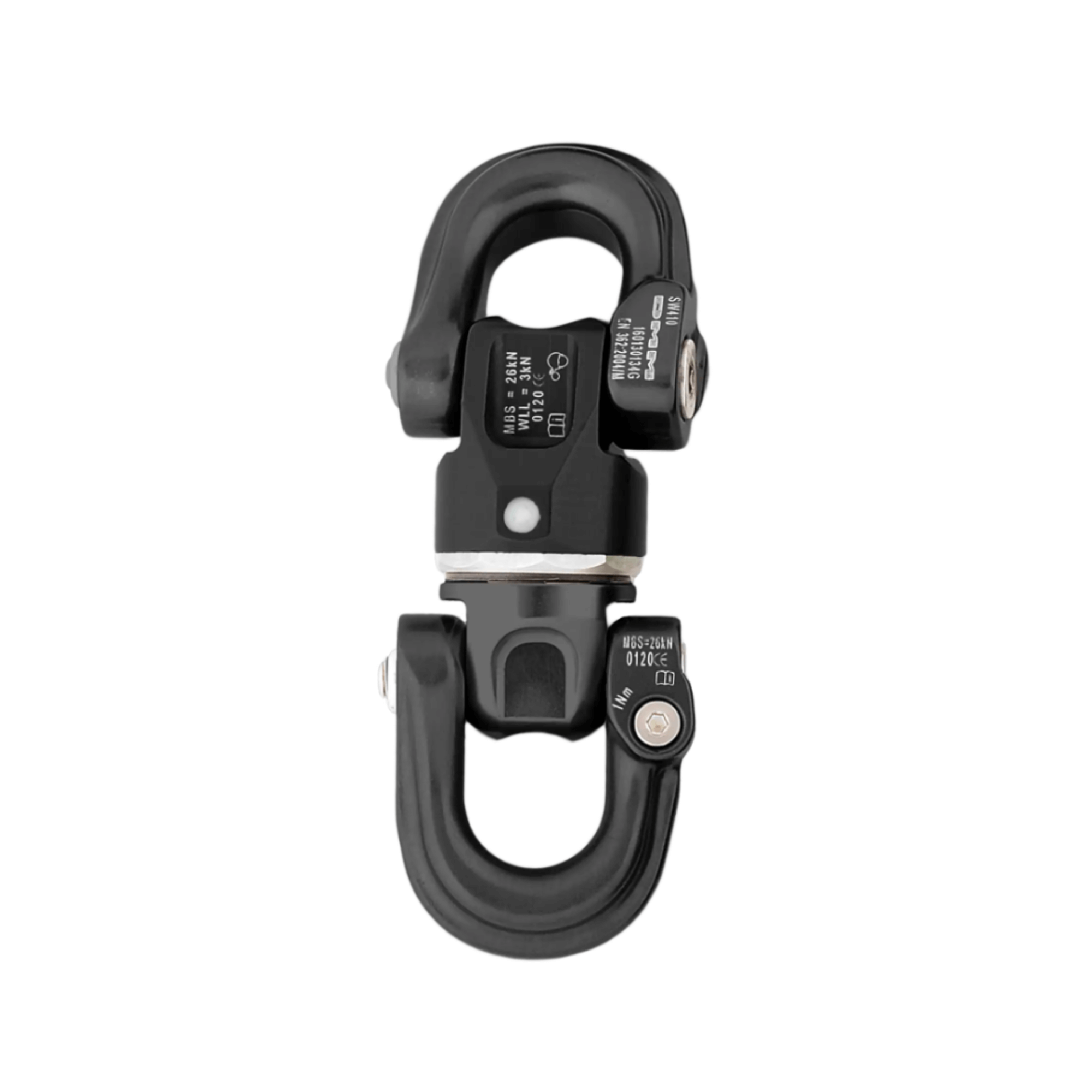

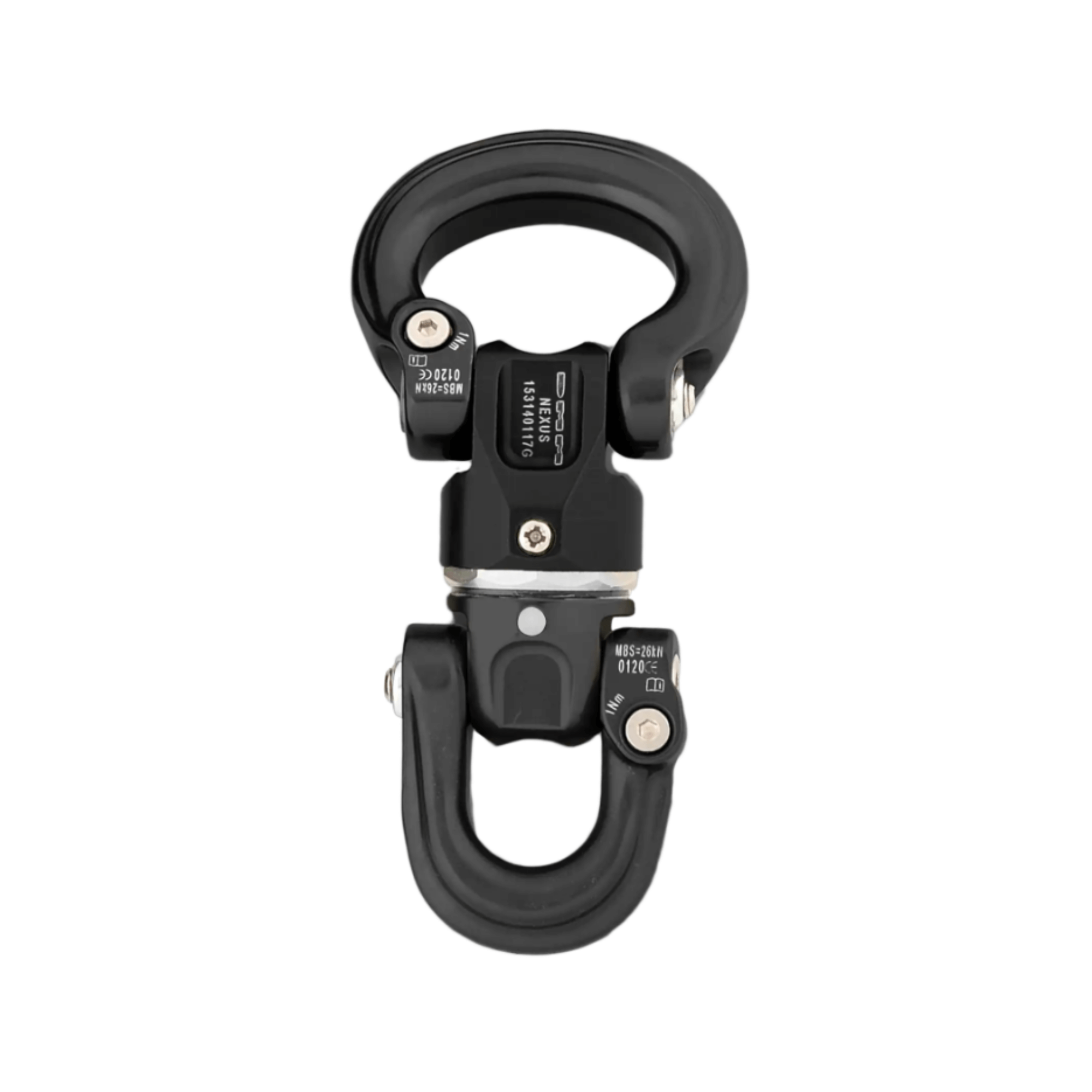

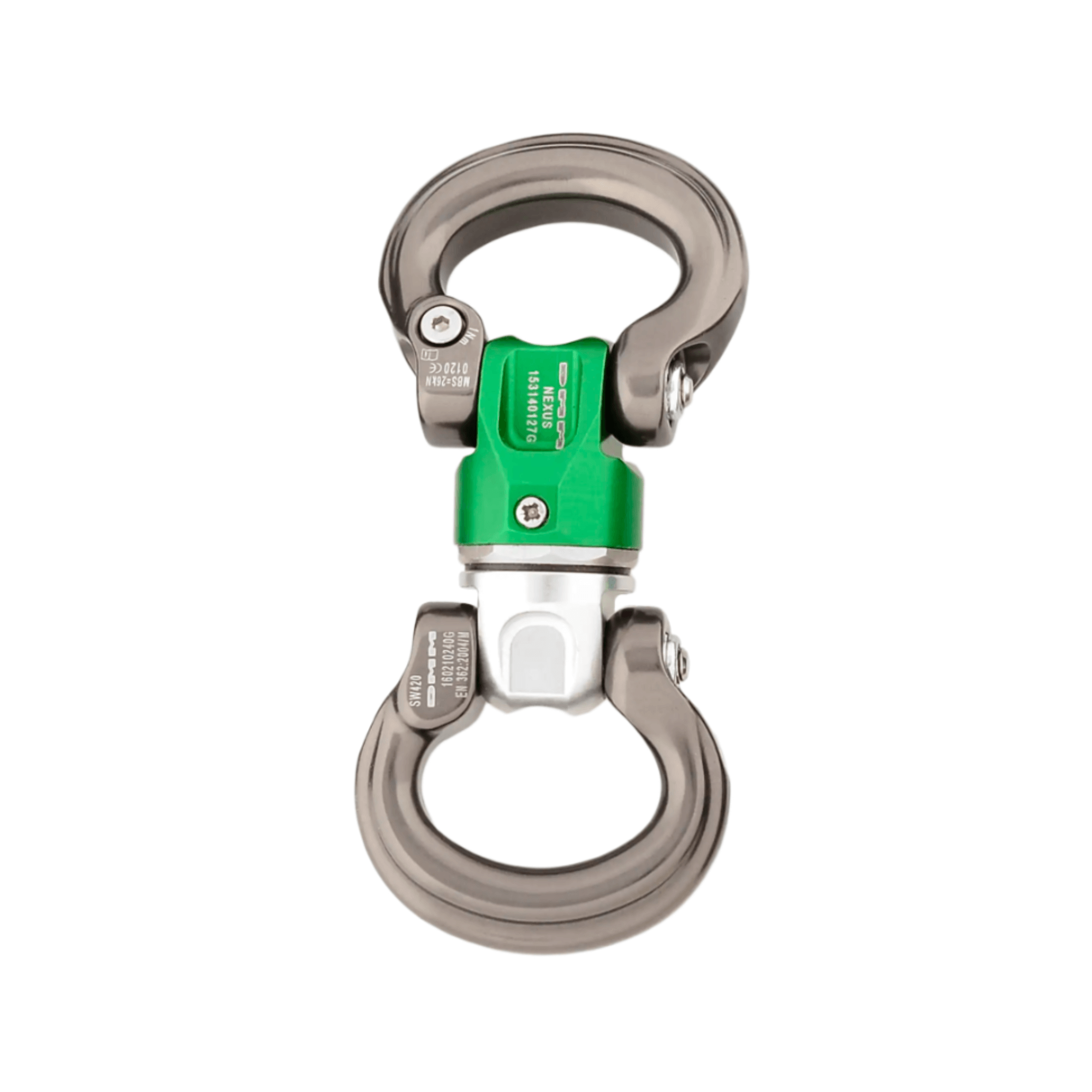

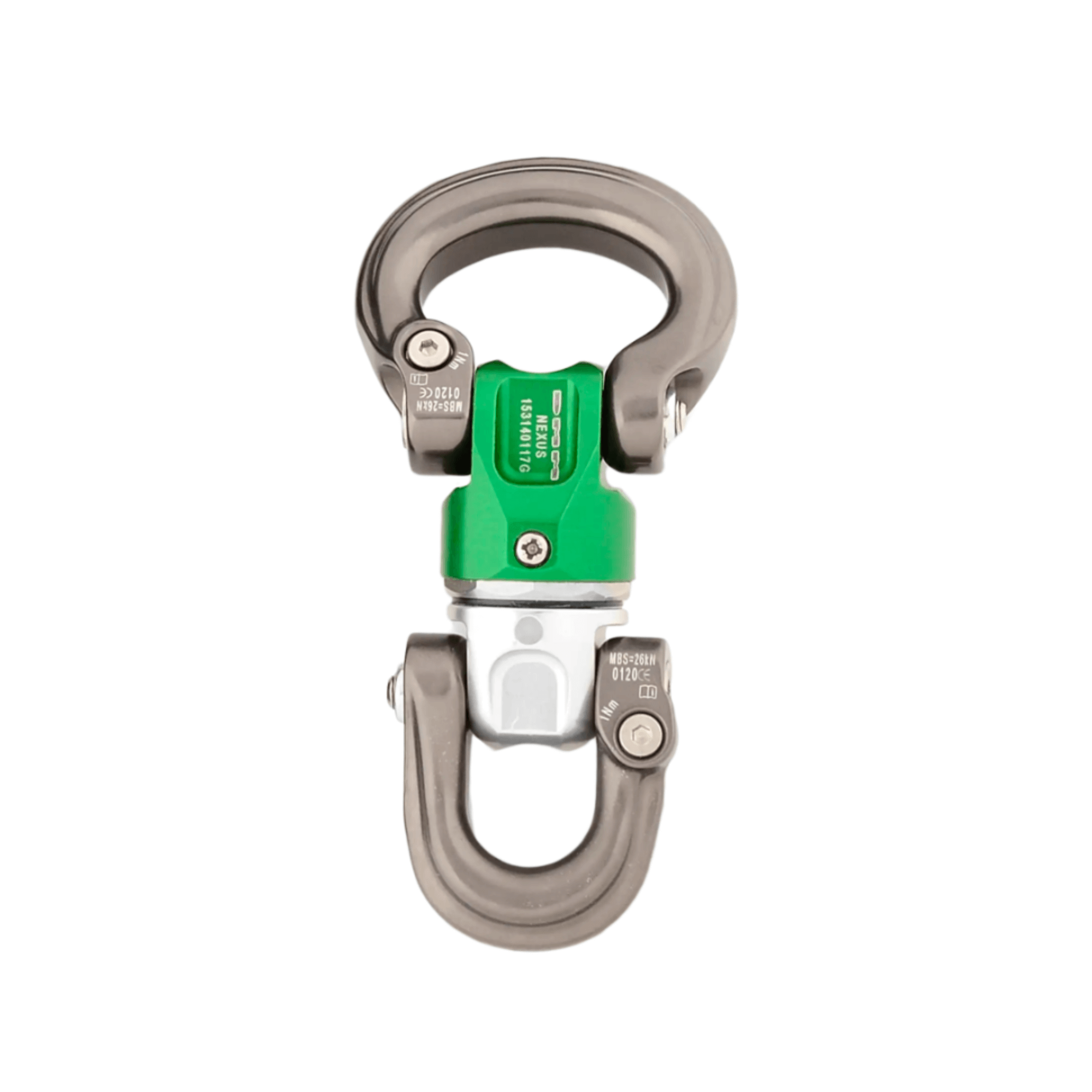

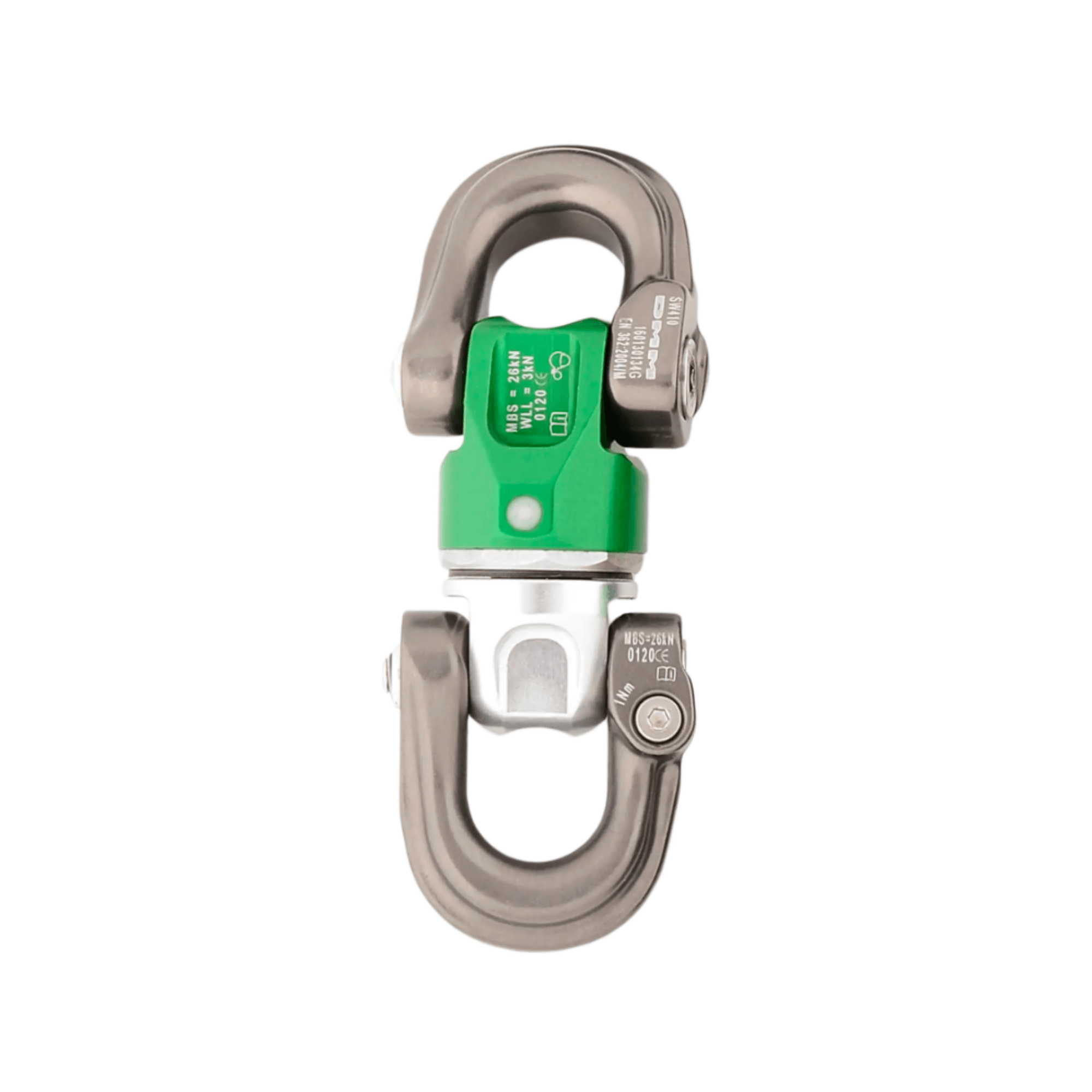

- Available in D-shackle, Bow-shackle or mixed configurations
- Efficient torsion management in space-restricted systems

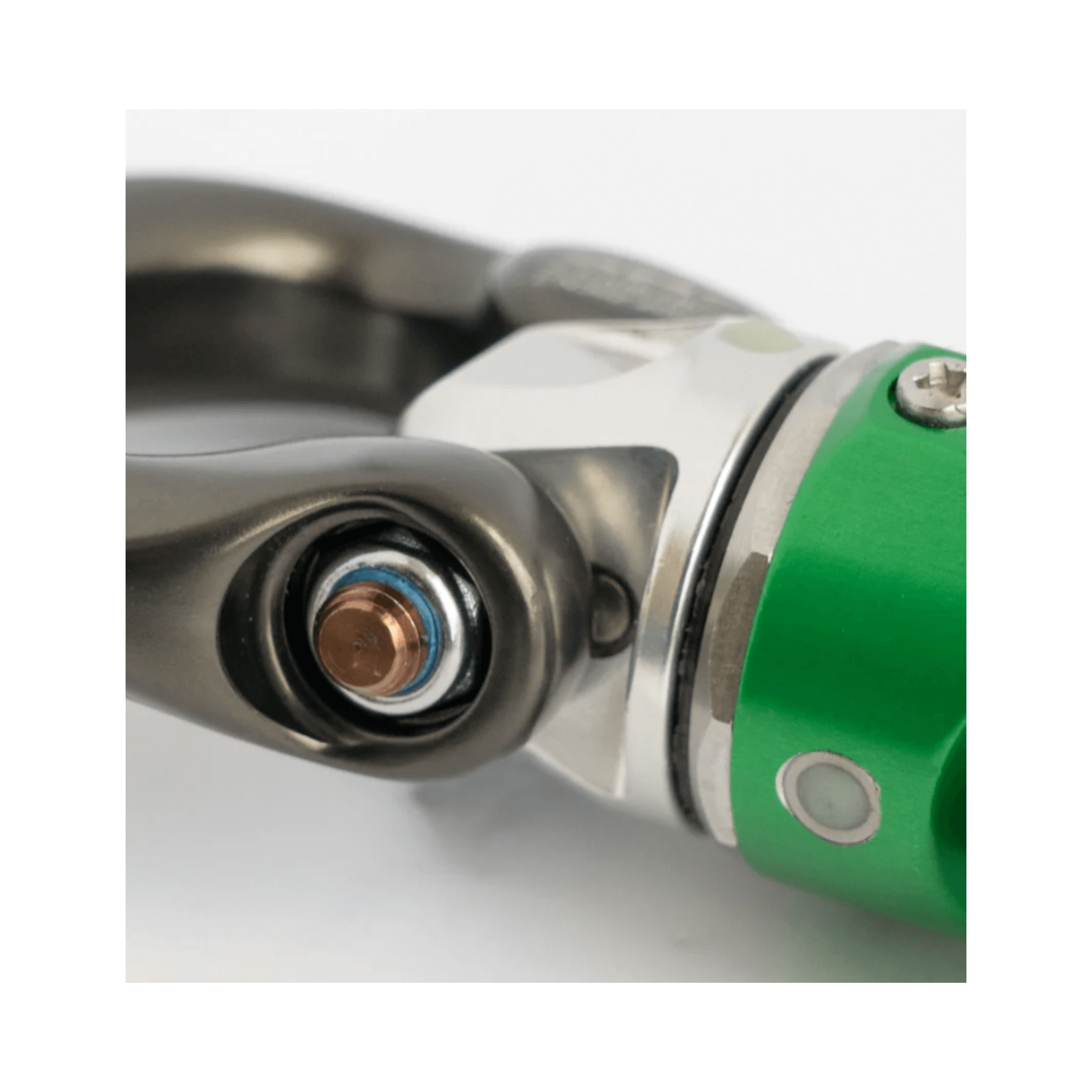

- Hot-forged aluminium shackles and CNC-machined swivel bodies
- Roller thrust bearings for smooth rotational performance
- User-maintainable grease port for extended bearing life
- Double-locking high-tensile stainless-steel axles
- Textile-friendly radiused surfaces
- Shackles lock using 4 mm and 2 mm Allen keys
- Available in Titanium and Grey
FAQs
What makes the Nexus Swivel space-saving?
With shackles on both ends, it replaces multiple connectors and reduces overall system height while still providing full rotation.
What is the benefit of D vs Bow shackles?
D-shackles are compact and ideal for inline attachments; Bow-shackles offer more internal space for complex, multi-directional loading.
Can I mix shackle types?
Yes — a mixed D/Bow configuration is available for hybrid setups.
Does the swivel rotate well under load?
Yes — roller thrust bearings ensure smooth rotation even when fully loaded.
Is the swivel easy to maintain?
Yes — the built-in grease port allows you to maintain bearing performance over time.
