Rigger Pulley
SKU: DMM | DD-PUL400
- Regular price
- £48.74 Ex VAT
- £58.49 Inc VAT
- RRP: £54.16 Ex VAT
- Sale price
- £48.74 £48.74 Ex VAT
- Regular price
-
- £58.49 £58.49 Inc VAT
- Was £54.16 Ex VAT
Free Standard UK Delivery Over £75 +VAT
Easy Returns
Couldn't load pickup availability
Product information & specifications
DMM Rigger Pulley

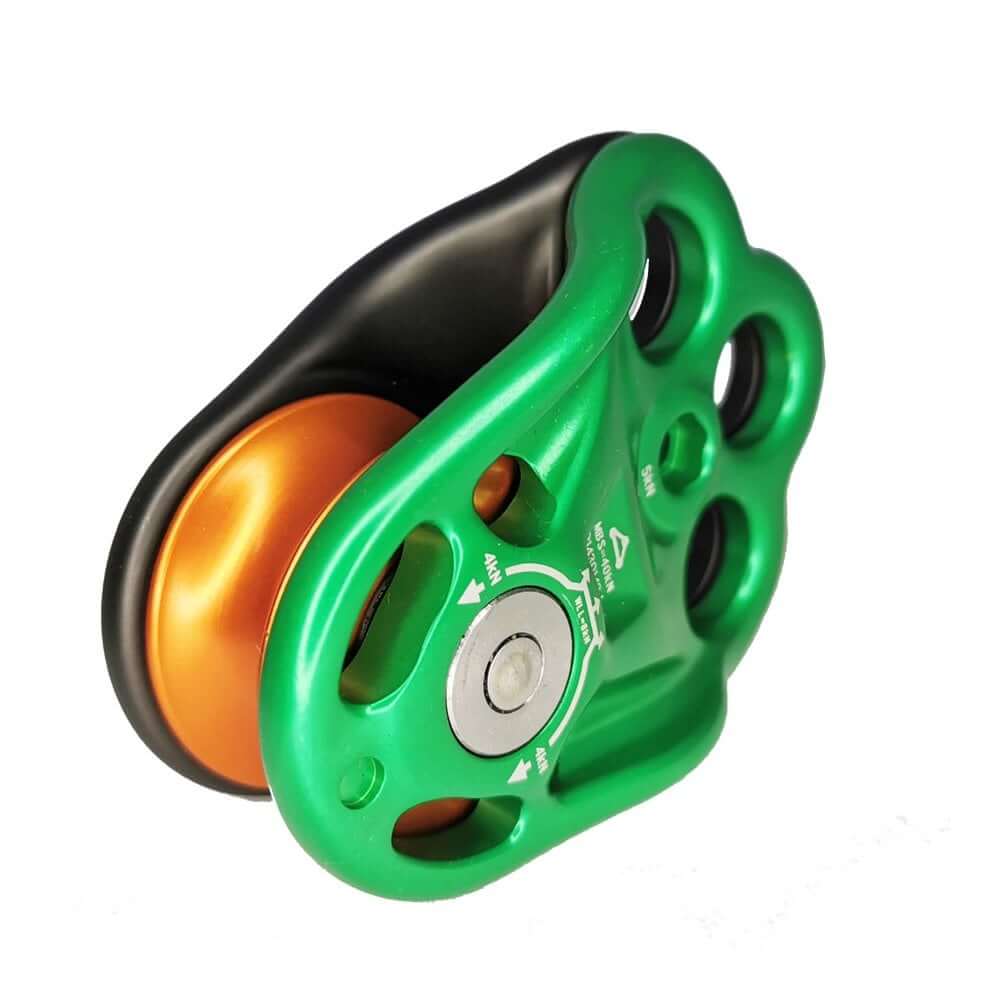

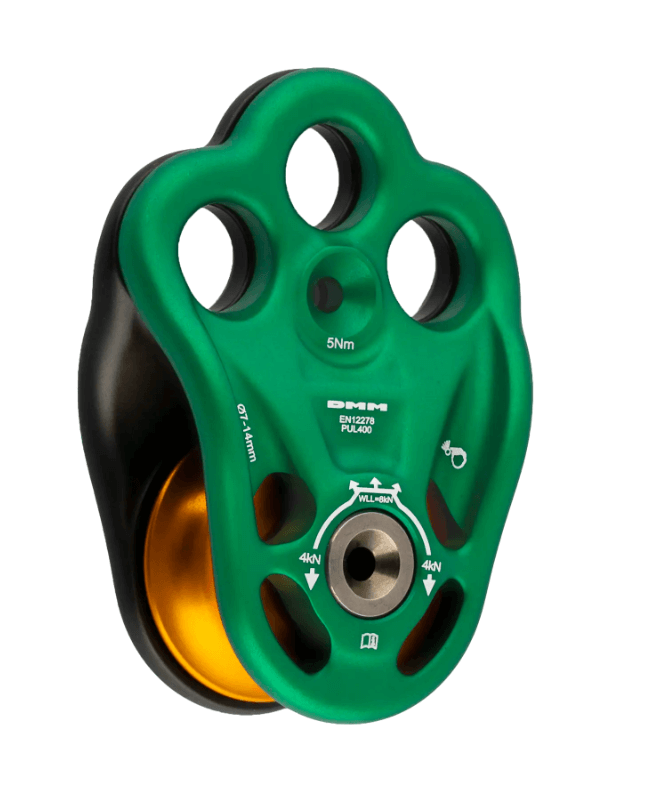

An evolution of DMM’s original Triple Attachment Pulley, redesigned for increased strength, efficiency and longevity. The DMM Rigger Pulley builds on over a decade of proven design, combining a hot-forged swing-cheek pulley with an integrated three-hole rigging plate. This unique configuration allows highly creative rigging setups while enabling direct connection to textile components, reducing both weight and system complexity.
The Rigger features a newly developed axle construction produced using highly accurate CNC operations. This results in a significantly stronger axle-to-side-plate interface, greatly improving durability and long-term performance in demanding rigging applications.
Key Features & Benefits
- Integrated three-hole rigging plate: Enables versatile configurations and direct textile connections.
- Ultra-high strength side plates: Bolstered connection areas deliver very high configured strengths.

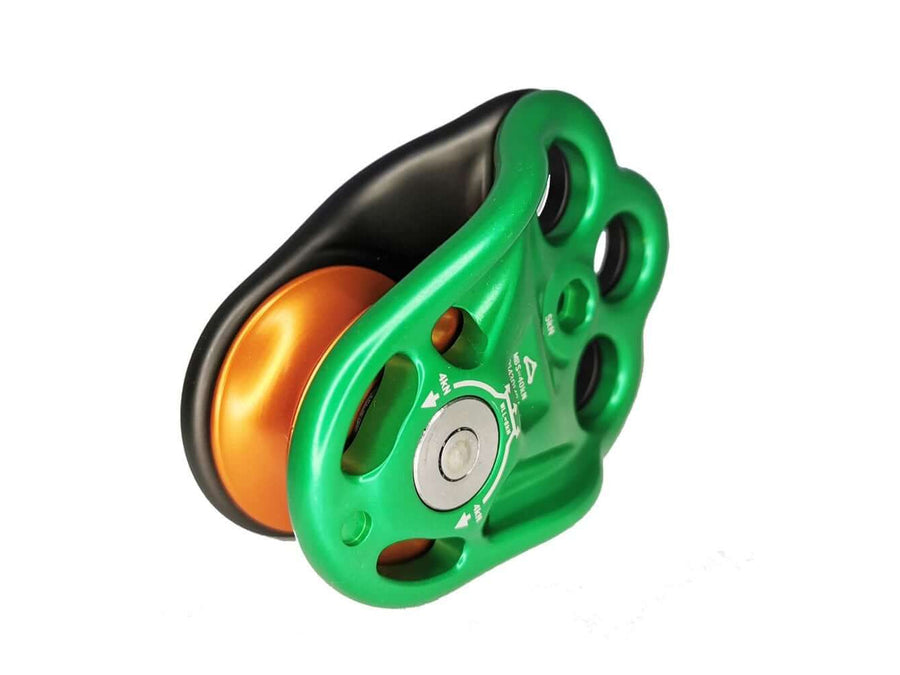

- 40 kN maximum breaking strength: Achieved through new side plate geometry and axle design.

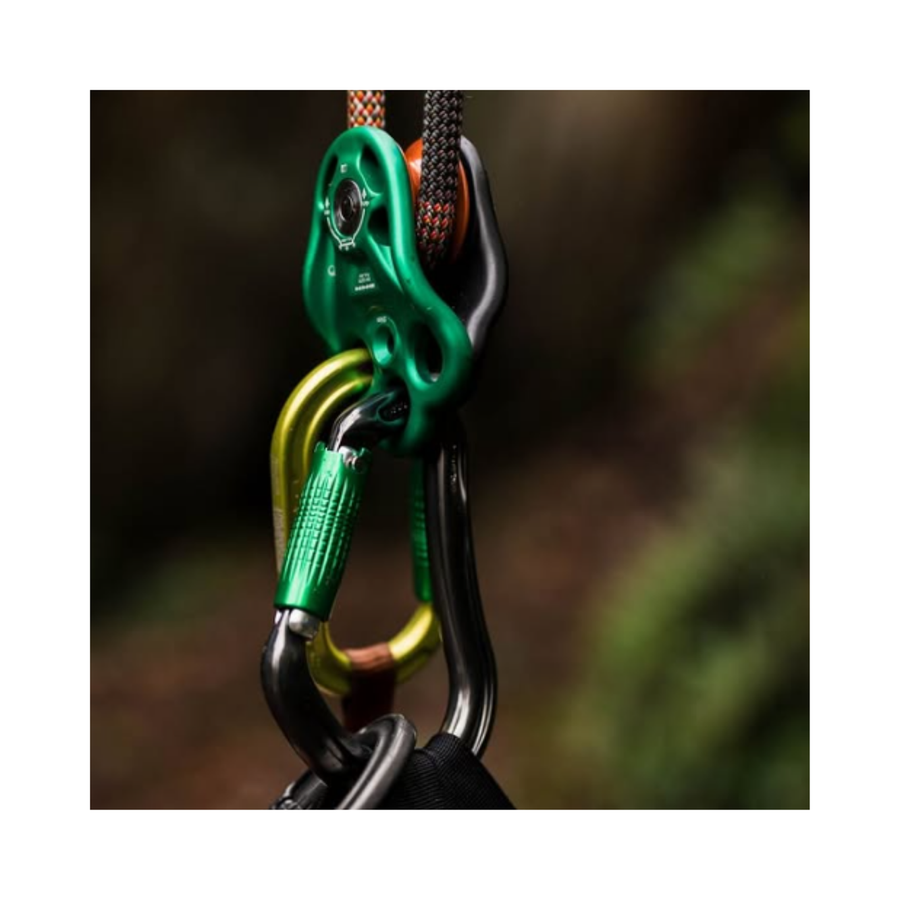

- High-efficiency roller bearings: Ensures smooth operation under load.
- Hollow axle construction: Reduces overall weight without compromising strength.
- Optimised fairleads and tuned angles: Improve prusik-minding efficiency.

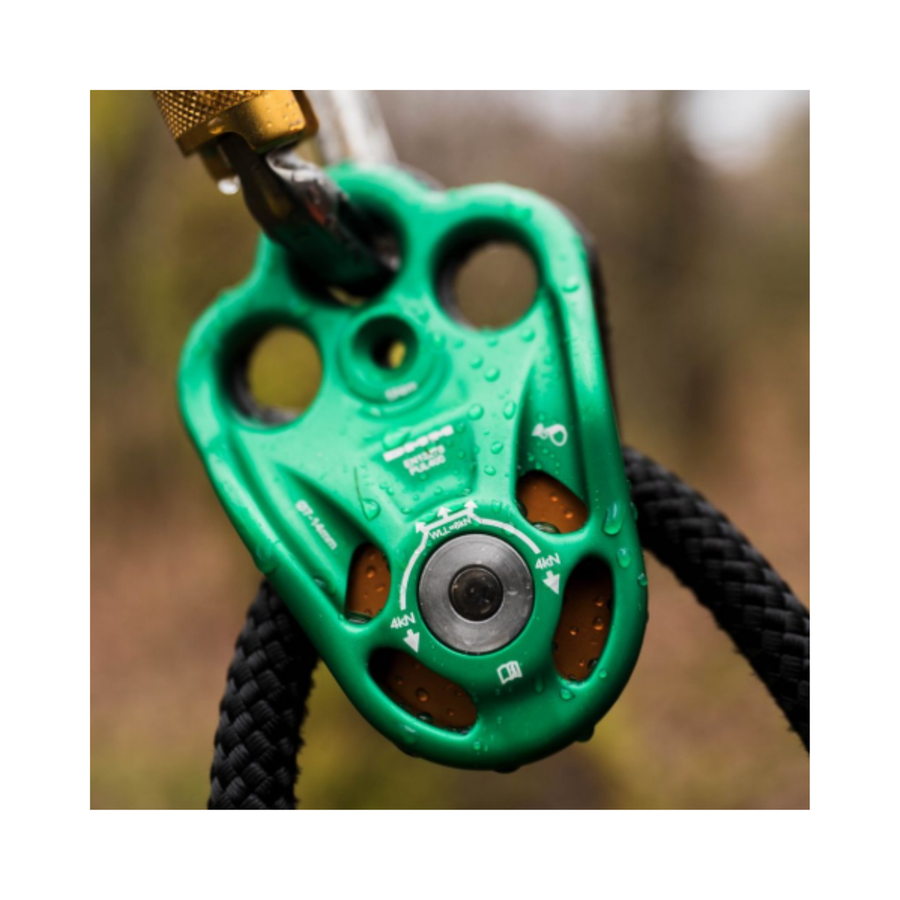

- Multi-function design: Can be used as a rigging plate with or without the sheave installed.
Axle & Plate Design Explained
The Rigger Pulley uses the same proven sheave as the previous DMM Triple Attachment Pulley, combined with a completely redesigned axle and side plate system. CNC-machined accuracy produces a robust axle and nut interface, while increased rope-bearing cross-sections around the attachment holes improve performance when connecting textile components directly.
Optional Locking Hardware
An optional M5 nut and bolt can be used to lock the side plates together. This locking hardware is non-structural and is available separately.
Recommended hardware specification:
- M5 × 16 mm countersunk screw – A2 stainless steel
- M5 Nyloc nut – A2 stainless steel
Technical Specifications
| Specification | Detail |
|---|---|
| Product Name | DMM Rigger Pulley |
| Maximum Breaking Strength | 40 kN |
| Working Load Limit | 8 kN |
| Dimensions | 68 × 94 mm |
| Weight | 176 g |
| Compatible Rope Diameter | 7 – 14 mm |
| Sheave Diameter | 42 mm |
| Bearing Type | High-efficiency roller bearings |
| Certification | EN 12278:2007 |
Why Choose the DMM Rigger Pulley?
The DMM Rigger Pulley is designed for professional rigging scenarios where strength, versatility and system efficiency are critical. The integrated three-hole rigging plate enables clean, compact setups, while the high-strength construction and smooth bearing performance ensure reliable operation under demanding loads.
With a 40 kN breaking strength, prusik-minding efficiency and a design refined through years of real-world use, the Rigger Pulley is a highly capable evolution of DMM’s original triple attachment concept.
Upgrade your rigging system with strength and versatility — choose the DMM Rigger Pulley today.
Climbing Hardware
| Standard | EN12278:2007 NFPA 1983 (2017)G |
|---|---|
| Material | Aluminium |
| Weight | 176g |
| Width | 68mm |
| Length | 94mm |
| Working Load Limit (WLL) | 8kN |
| Minimum Breaking Strain (MBS) | 44kN |
| Rope Size | 7-14mm |
DMM Rigger Pulley
An evolution of DMM’s original Triple Attachment Pulley, redesigned for increased strength, efficiency and longevity. The DMM Rigger Pulley builds on over a decade of proven design, combining a hot-forged swing-cheek pulley with an integrated three-hole rigging plate. This unique configuration allows highly creative rigging setups while enabling direct connection to textile components, reducing both weight and system complexity.
The Rigger features a newly developed axle construction produced using highly accurate CNC operations. This results in a significantly stronger axle-to-side-plate interface, greatly improving durability and long-term performance in demanding rigging applications.
Key Features & Benefits
- Integrated three-hole rigging plate: Enables versatile configurations and direct textile connections.
- Ultra-high strength side plates: Bolstered connection areas deliver very high configured strengths.
- 40 kN maximum breaking strength: Achieved through new side plate geometry and axle design.
- High-efficiency roller bearings: Ensures smooth operation under load.
- Hollow axle construction: Reduces overall weight without compromising strength.
- Optimised fairleads and tuned angles: Improve prusik-minding efficiency.
- Multi-function design: Can be used as a rigging plate with or without the sheave installed.
Axle & Plate Design Explained
The Rigger Pulley uses the same proven sheave as the previous DMM Triple Attachment Pulley, combined with a completely redesigned axle and side plate system. CNC-machined accuracy produces a robust axle and nut interface, while increased rope-bearing cross-sections around the attachment holes improve performance when connecting textile components directly.
Optional Locking Hardware
An optional M5 nut and bolt can be used to lock the side plates together. This locking hardware is non-structural and is available separately.
Recommended hardware specification:
- M5 × 16 mm countersunk screw – A2 stainless steel
- M5 Nyloc nut – A2 stainless steel
Technical Specifications
| Specification | Detail |
|---|---|
| Product Name | DMM Rigger Pulley |
| Maximum Breaking Strength | 40 kN |
| Working Load Limit | 8 kN |
| Dimensions | 68 × 94 mm |
| Weight | 176 g |
| Compatible Rope Diameter | 7 – 14 mm |
| Sheave Diameter | 42 mm |
| Bearing Type | High-efficiency roller bearings |
| Certification | EN 12278:2007 |
Why Choose the DMM Rigger Pulley?
The DMM Rigger Pulley is designed for professional rigging scenarios where strength, versatility and system efficiency are critical. The integrated three-hole rigging plate enables clean, compact setups, while the high-strength construction and smooth bearing performance ensure reliable operation under demanding loads.
With a 40 kN breaking strength, prusik-minding efficiency and a design refined through years of real-world use, the Rigger Pulley is a highly capable evolution of DMM’s original triple attachment concept.
Upgrade your rigging system with strength and versatility — choose the DMM Rigger Pulley today.
Climbing Hardware
| Standard | EN12278:2007 NFPA 1983 (2017)G |
|---|---|
| Material | Aluminium |
| Weight | 176g |
| Width | 68mm |
| Length | 94mm |
| Working Load Limit (WLL) | 8kN |
| Minimum Breaking Strain (MBS) | 44kN |
| Rope Size | 7-14mm |
