Compact Rigging Pulley 13mm Rope
SKU: ISC | IS-RP048A1
- Regular price
- £97.71 Ex VAT
- £117.25 Inc VAT
- RRP: £109.95 Ex VAT
- Sale price
- £97.71 £97.71 Ex VAT
- Regular price
-
- £117.25 £117.25 Inc VAT
- Was £109.95 Ex VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

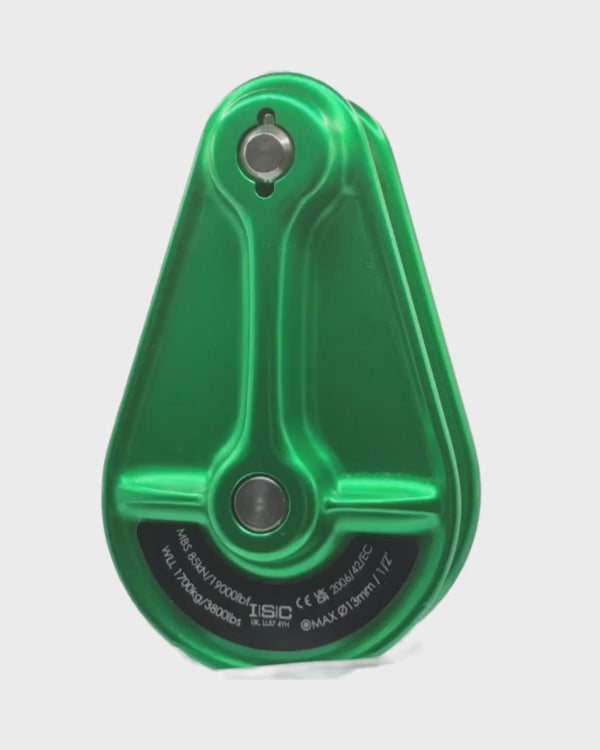

ISC Compact Rigging Pulley 13mm Rope
The ISC Compact Rigging Pulley 13mm Rope is a high-strength professional rigging pulley designed for arborist lowering, lifting and controlled dismantling applications. At approximately half the size of the standard small rigging pulley and weighing only 490g, it delivers an impressive strength-to-weight ratio for demanding tree rigging work.
Manufactured using hot-forged aluminium pulley plates, this compact rigging pulley provides excellent dynamic load-bearing capacity while keeping weight and bulk to a minimum. With an 85kN minimum breaking strength and a 17kN working load limit, it is ideal for professional arborists who need compact hardware without compromising strength.
Key Features
- ISC Compact Rigging Pulley for professional arborist rigging
- Designed for use with 13mm working rope
- Approximately half the size of the standard small rigging pulley
- Lightweight design weighing only 490g
- 85kN minimum breaking strength
- 17kN working load limit
- Hot-forged aluminium pulley plates for high strength
- Spring-lock closure mechanism
- Individually serial numbered for traceability
- Approved to CE 0120 Machinery Directive

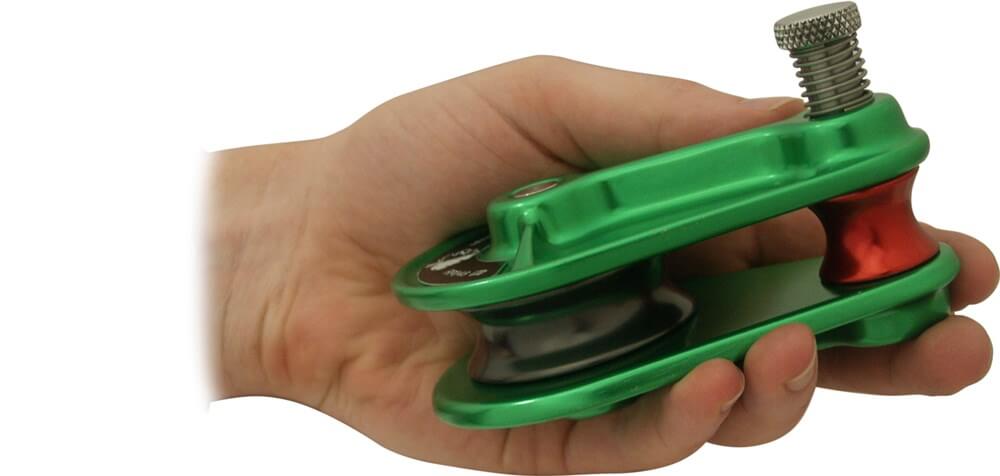

Compact Strength for Professional Rigging
The ISC Compact Rigging Pulley offers serious strength in a smaller, lighter format, making it ideal for arborists who want efficient rigging equipment that is easier to carry and position in the tree.

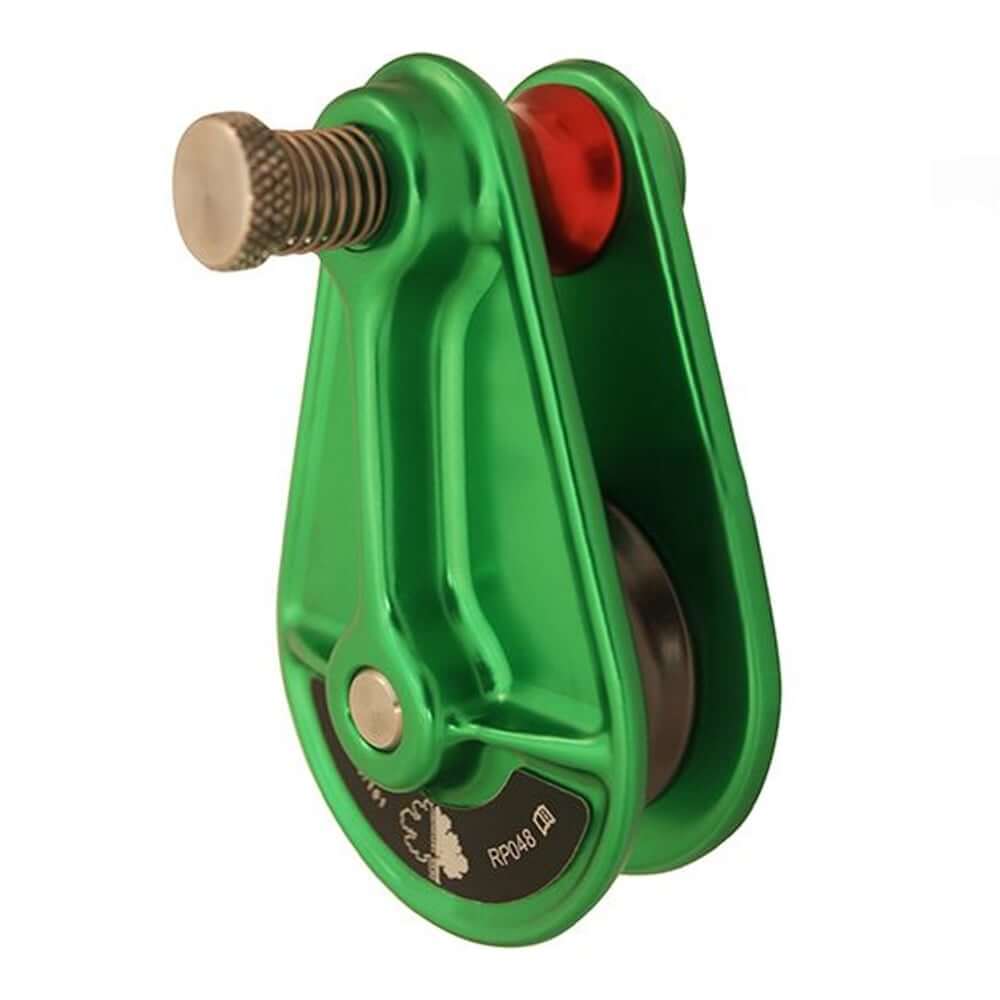

Hot-Forged Aluminium Construction
The pulley plates are made from hot-forged aluminium, a manufacturing process that allows the pulley to remain compact while delivering excellent strength and dynamic load-bearing performance.

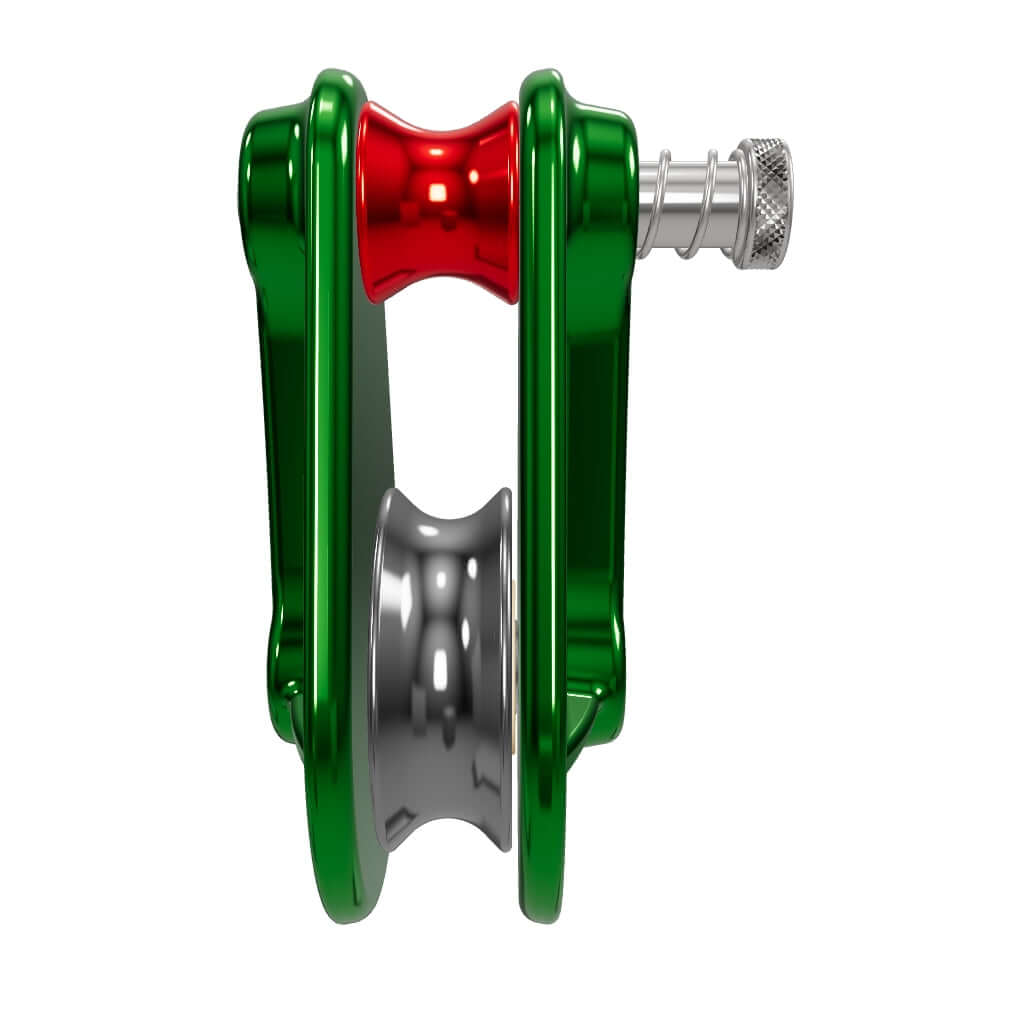

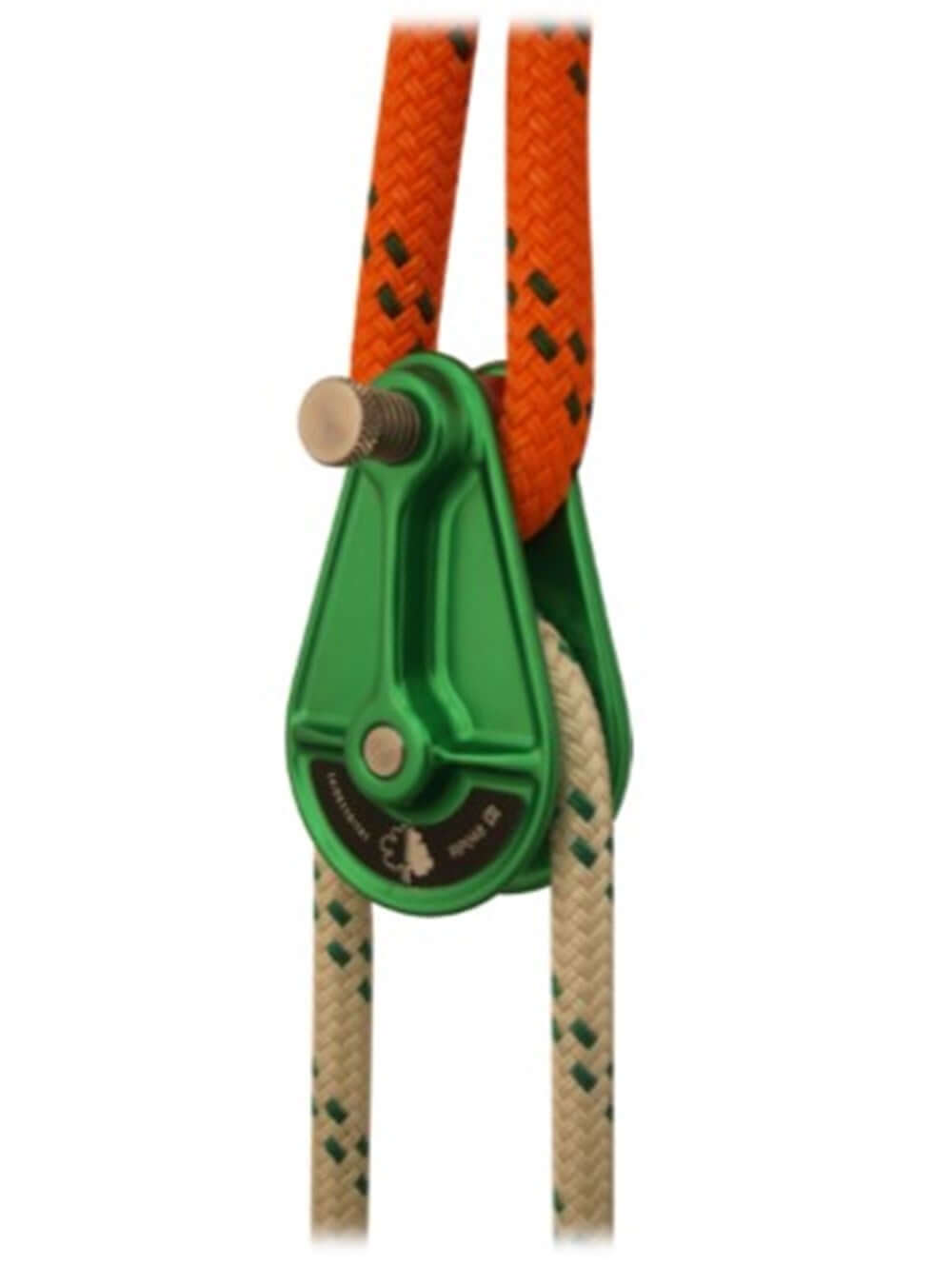

Dual Sheave Rope Capacity
The pulley features separate working line and topping strop sheaves, allowing it to handle demanding rigging configurations while maintaining controlled rope movement.

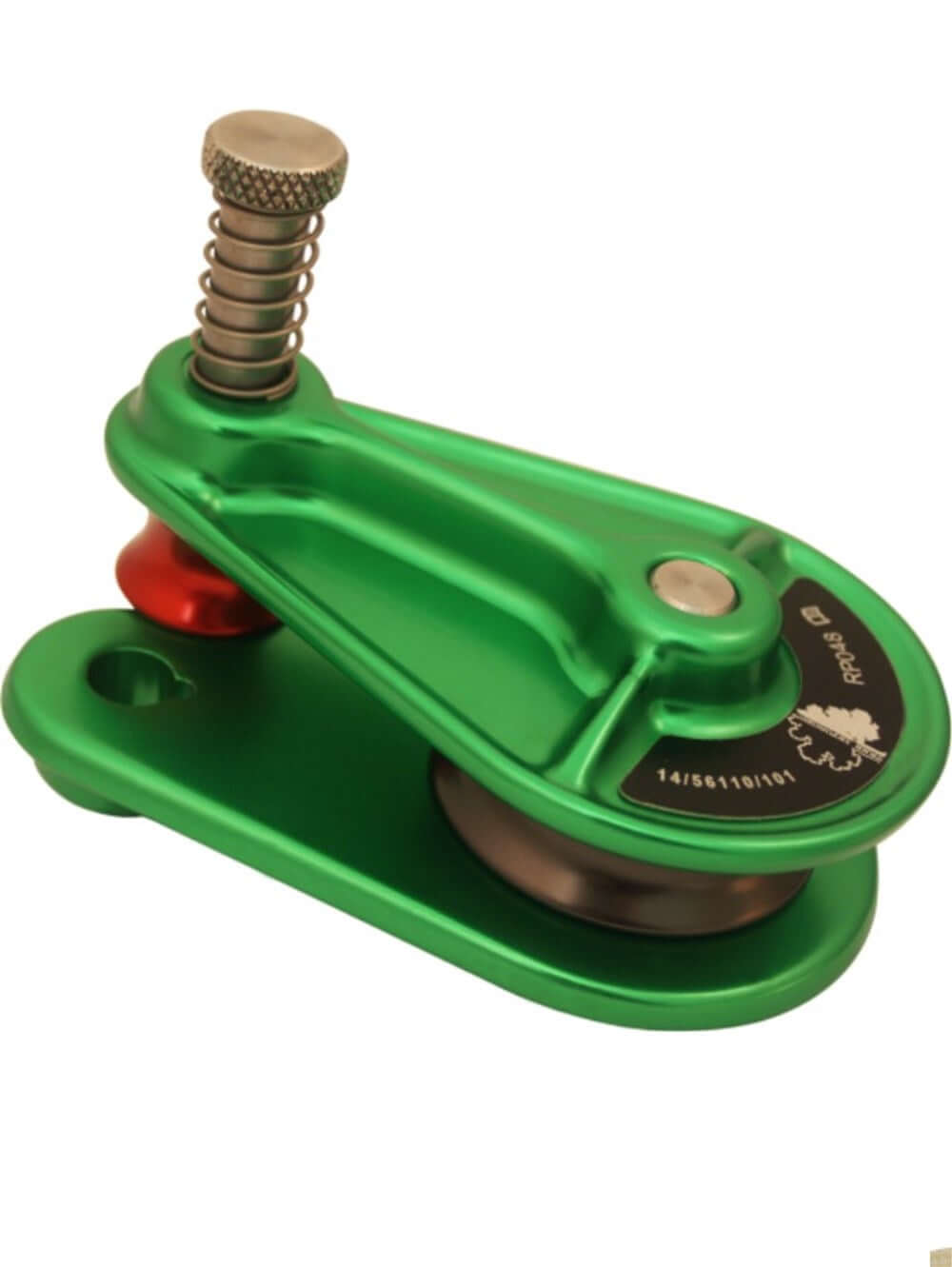

Secure Spring-Lock Closure
The spring-lock closure mechanism helps provide secure and efficient operation during rigging setup and use.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ISC Compact Rigging Pulley 13mm Rope |
| Pulley Type | Compact rigging pulley |
| Weight | 490g / 1lb approx. |
| Minimum Breaking Strength | 85kN / 19,000lbf |
| Working Load Limit | 17kN / 3,800lbf |
| Pulley Plate Material | Hot-forged aluminium |
| Closure | Spring-lock closure mechanism |
| Approved Standard | CE 0120 Machinery Directive |
| Traceability | Individually serial numbered |

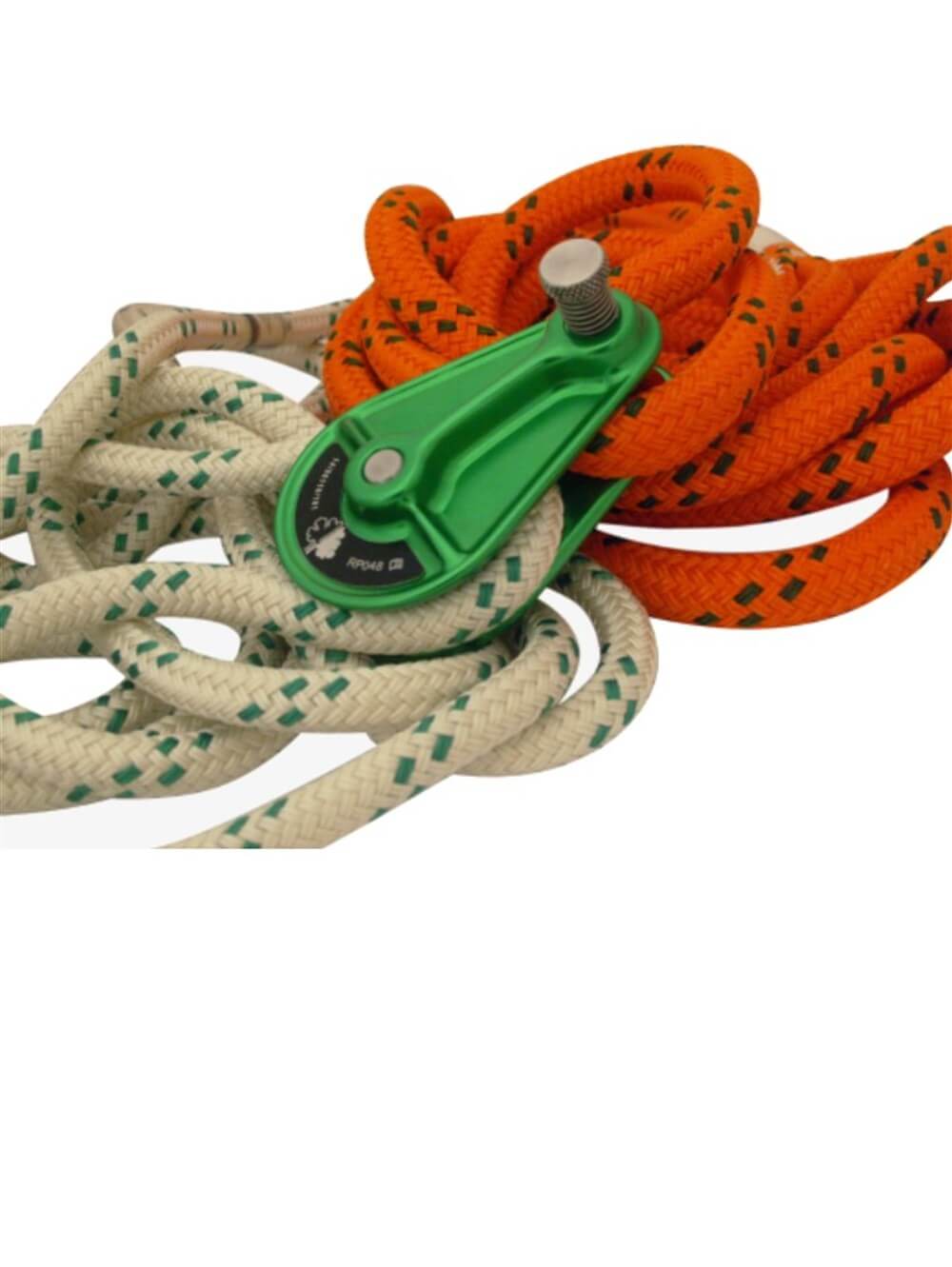

Rope Compatibility
| Sheave | Rope Diameter | Strength Rating |
|---|---|---|
| Working Line / Grey Sheave | 13mm / 1/2" | 38kN / 8,500lbf |
| Topping Strop / Red Sheave | 16mm / 5/8" | 74kN / 16,650lbf |
Ideal For
- Professional arborist rigging systems
- Tree dismantling and lowering operations
- Compact rigging setups where weight matters
- Controlled lowering with 13mm rigging rope
- Arborists needing high strength in a compact pulley
Explore More
Best For
The ISC Compact Rigging Pulley is best suited to professional arborists who need a lightweight, compact and high-strength pulley for demanding rigging and lowering work.
Why Choose the ISC Compact Rigging Pulley?
With its hot-forged aluminium construction, compact size, high strength rating and spring-lock closure, the ISC Compact Rigging Pulley delivers excellent performance for professional tree rigging systems.
Technical Specifications
ISC Compact Rigging Pulley 13mm Rope
The ISC Compact Rigging Pulley 13mm Rope is a high-strength professional rigging pulley designed for arborist lowering, lifting and controlled dismantling applications. At approximately half the size of the standard small rigging pulley and weighing only 490g, it delivers an impressive strength-to-weight ratio for demanding tree rigging work.
Manufactured using hot-forged aluminium pulley plates, this compact rigging pulley provides excellent dynamic load-bearing capacity while keeping weight and bulk to a minimum. With an 85kN minimum breaking strength and a 17kN working load limit, it is ideal for professional arborists who need compact hardware without compromising strength.
Key Features
- ISC Compact Rigging Pulley for professional arborist rigging
- Designed for use with 13mm working rope
- Approximately half the size of the standard small rigging pulley
- Lightweight design weighing only 490g
- 85kN minimum breaking strength
- 17kN working load limit
- Hot-forged aluminium pulley plates for high strength
- Spring-lock closure mechanism
- Individually serial numbered for traceability
- Approved to CE 0120 Machinery Directive
Compact Strength for Professional Rigging
The ISC Compact Rigging Pulley offers serious strength in a smaller, lighter format, making it ideal for arborists who want efficient rigging equipment that is easier to carry and position in the tree.
Hot-Forged Aluminium Construction
The pulley plates are made from hot-forged aluminium, a manufacturing process that allows the pulley to remain compact while delivering excellent strength and dynamic load-bearing performance.
Dual Sheave Rope Capacity
The pulley features separate working line and topping strop sheaves, allowing it to handle demanding rigging configurations while maintaining controlled rope movement.
Secure Spring-Lock Closure
The spring-lock closure mechanism helps provide secure and efficient operation during rigging setup and use.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ISC Compact Rigging Pulley 13mm Rope |
| Pulley Type | Compact rigging pulley |
| Weight | 490g / 1lb approx. |
| Minimum Breaking Strength | 85kN / 19,000lbf |
| Working Load Limit | 17kN / 3,800lbf |
| Pulley Plate Material | Hot-forged aluminium |
| Closure | Spring-lock closure mechanism |
| Approved Standard | CE 0120 Machinery Directive |
| Traceability | Individually serial numbered |
Rope Compatibility
| Sheave | Rope Diameter | Strength Rating |
|---|---|---|
| Working Line / Grey Sheave | 13mm / 1/2" | 38kN / 8,500lbf |
| Topping Strop / Red Sheave | 16mm / 5/8" | 74kN / 16,650lbf |
Ideal For
- Professional arborist rigging systems
- Tree dismantling and lowering operations
- Compact rigging setups where weight matters
- Controlled lowering with 13mm rigging rope
- Arborists needing high strength in a compact pulley
Explore More
Best For
The ISC Compact Rigging Pulley is best suited to professional arborists who need a lightweight, compact and high-strength pulley for demanding rigging and lowering work.
Why Choose the ISC Compact Rigging Pulley?
With its hot-forged aluminium construction, compact size, high strength rating and spring-lock closure, the ISC Compact Rigging Pulley delivers excellent performance for professional tree rigging systems.
Technical Specifications
