Omni Block 2.0" Double Pulley
SKU: Rock Exotica | RO-P53D
- Regular price
- £184.13 Ex VAT
- £220.96 Inc VAT
- RRP: £197.12 Ex VAT
- Sale price
- £184.13 £184.13 Ex VAT
- Regular price
-
- £220.96 £220.96 Inc VAT
- Was £197.12 Ex VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

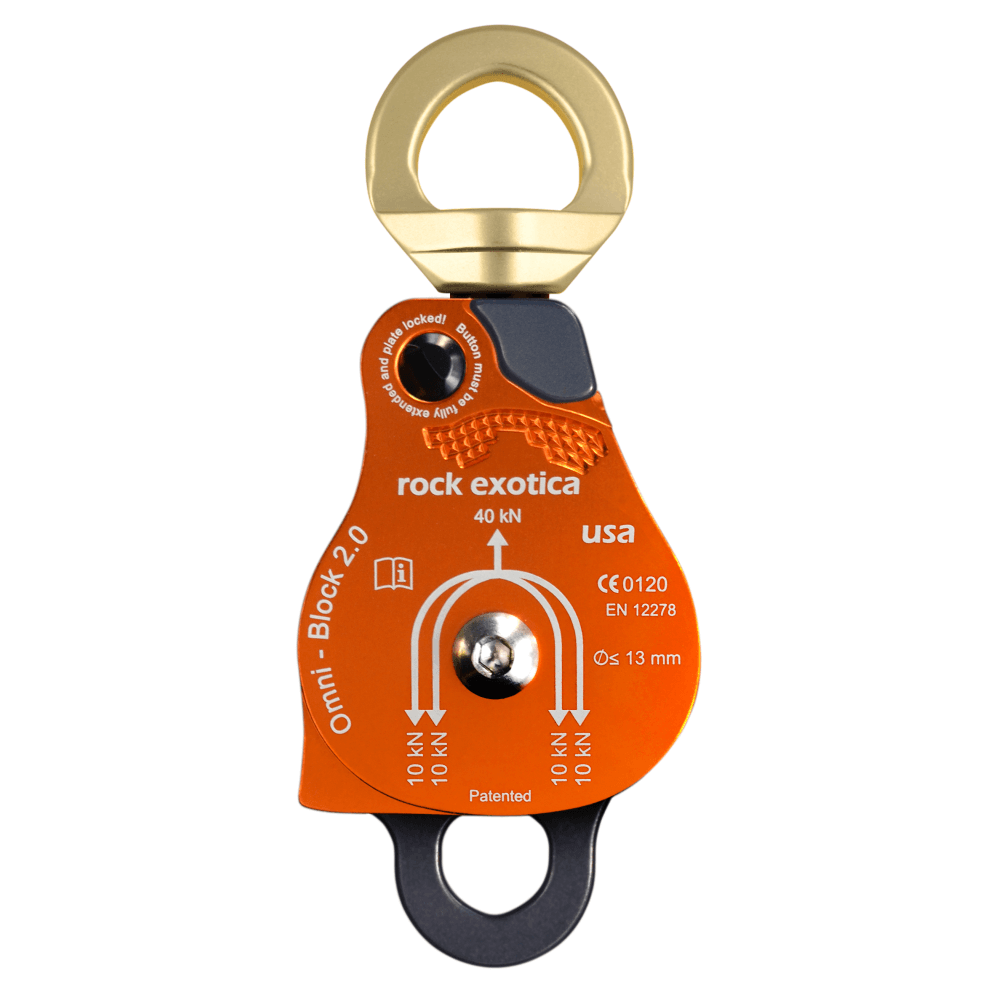

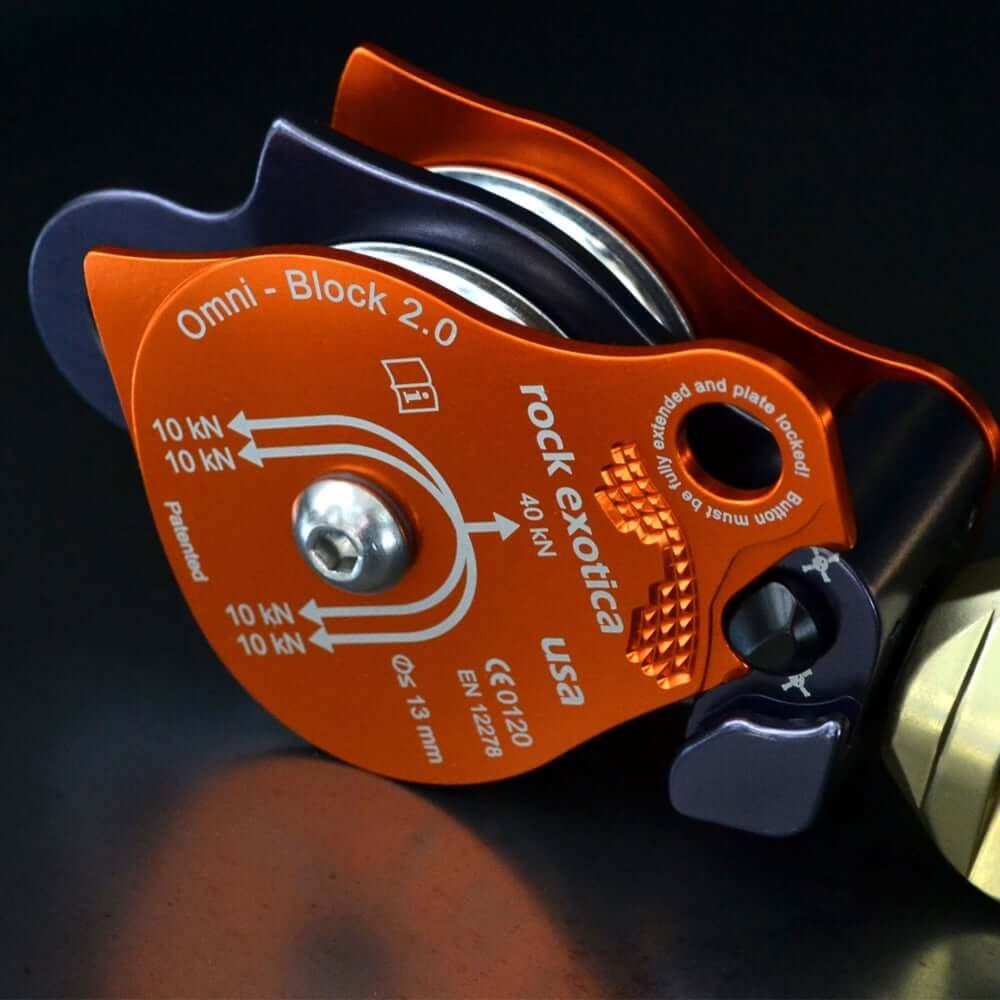

Rock Exotica P53D-B Omni-Block 2.0" Double Pulley – Black
The Rock Exotica P53D-B Omni-Block 2.0" Double Pulley brings the proven Omni concept to compact, high-efficiency double-sheave rigging. Combining two pulleys and an integrated swivel into one CE-certified unit, it is ideal for mechanical advantage systems, complex redirects and compact haul setups where smooth running and clean alignment are essential.
The Omni-Block design incorporates a sideplate that opens while the pulley remains attached to the anchor, making it faster and safer to install or remove rope without dismantling the entire system. This greatly streamlines workflow in arboriculture, rescue and rope access environments, especially when frequent reconfigurations are required.
With a Maximum Breaking Strength (MBS) of 40 kN and a Working Load Limit (WLL) of 8 kN, the P53D-B provides serious performance in a relatively compact package. It is designed for ropes up to 13 mm and delivers reliable, efficient running when used in progress-capture systems, 3:1 or 5:1 haul setups and advanced rigging configurations.
Key Features
- Double-sheave Omni-Block pulley with integrated swivel for compact, efficient rigging
- Sideplate opens while remaining attached to the anchor (when unloaded) for faster rope installation
- Designed for mechanical advantage systems, redirects and haul setups
- Black finish version for discreet, professional appearance
- Suitable for professional arborist, rescue and rope access applications
Specifications
| Model | Rock Exotica P53D-B Omni-Block 2.0" Double (Black) |
| Part Number | P53 D |
| Rope Compatibility | Up to 13 mm (0.5") diameter |
| Weight | 591 g (20.9 oz) |
| MBS (Maximum Breaking Strength) | 40 kN |
| WLL (Working Load Limit) | 8 kN |
| Certification | CE Certified |
FAQs
What is the benefit of a double Omni-Block pulley?
The double-sheave design allows you to build compact mechanical advantage systems, redirects and load-sharing setups while keeping the rigging centred and aligned via the integrated swivel.
Can I open the sideplate while the pulley is still attached?
Yes. The Omni-Block sideplate can be opened while the unit remains clipped to the anchor, as long as it is fully unloaded. This makes rope installation and removal quicker and more secure.
What rope size is compatible with the P53D-B?
The P53D-B is designed for use with ropes up to 13 mm (0.5") in diameter.
Is the P53D-B suitable for professional rigging and rescue work?
Yes. With an 8 kN WLL and 40 kN MBS, the P53D-B is built for demanding professional applications in arboriculture, rope access and rescue (within the limits of relevant standards and best practice).
What is the advantage of the integrated swivel?
The swivel prevents the system from twisting under load, helping to reduce rope wear and making complex rigging setups easier to manage.
Weights & Measures
| Min Breaking Strength | 40kN |
|---|---|
| Weight | 348g |
| Material | Aluminium |
| Working Load Limit (WLL) | 10kN |
| Rope Size | 13mm |
| SWL | 8kN |
| MBS | 36kN |

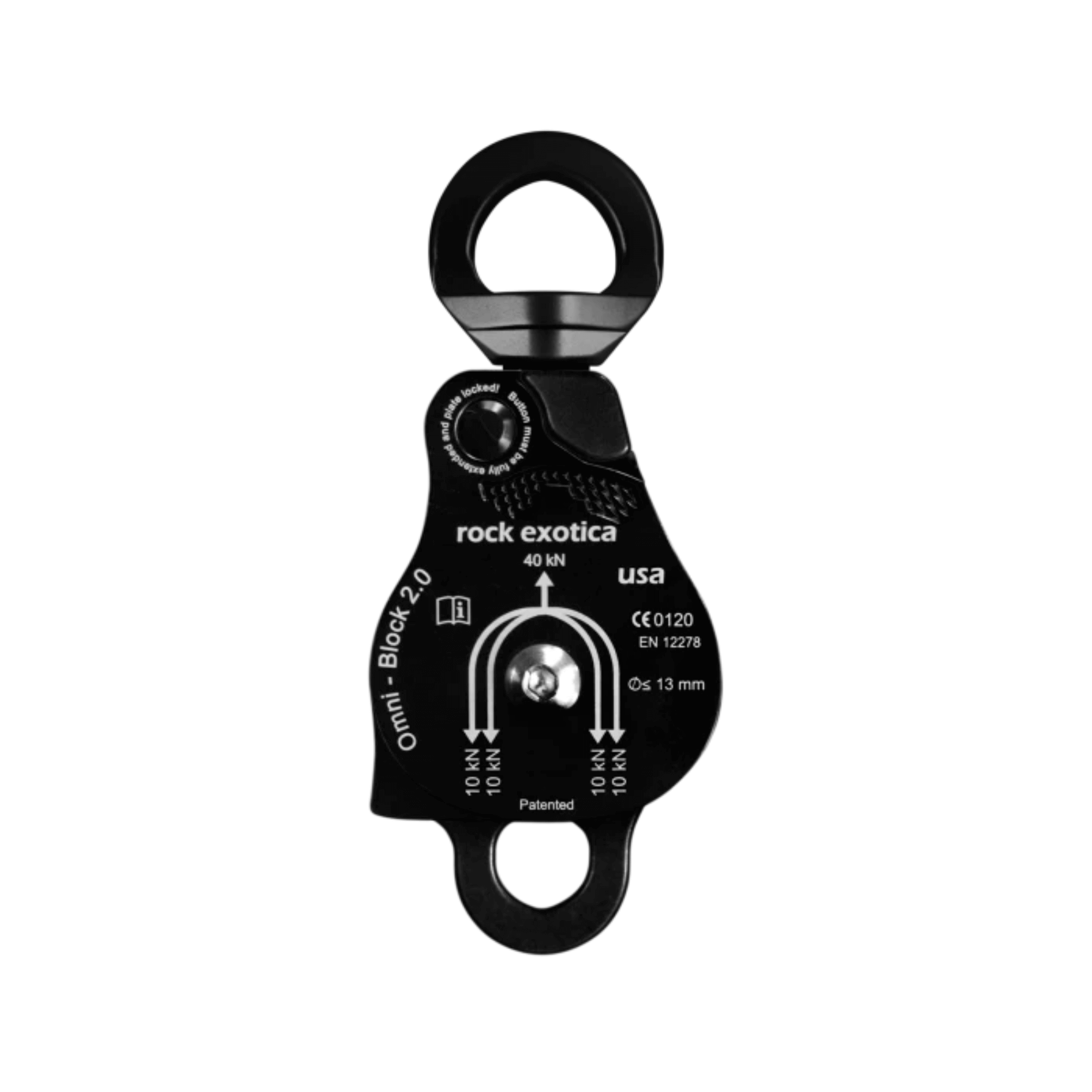

Rock Exotica P53D-B Omni-Block 2.0" Double Pulley – Black
The Rock Exotica P53D-B Omni-Block 2.0" Double Pulley brings the proven Omni concept to compact, high-efficiency double-sheave rigging. Combining two pulleys and an integrated swivel into one CE-certified unit, it is ideal for mechanical advantage systems, complex redirects and compact haul setups where smooth running and clean alignment are essential.
The Omni-Block design incorporates a sideplate that opens while the pulley remains attached to the anchor, making it faster and safer to install or remove rope without dismantling the entire system. This greatly streamlines workflow in arboriculture, rescue and rope access environments, especially when frequent reconfigurations are required.
With a Maximum Breaking Strength (MBS) of 40 kN and a Working Load Limit (WLL) of 8 kN, the P53D-B provides serious performance in a relatively compact package. It is designed for ropes up to 13 mm and delivers reliable, efficient running when used in progress-capture systems, 3:1 or 5:1 haul setups and advanced rigging configurations.
Key Features
- Double-sheave Omni-Block pulley with integrated swivel for compact, efficient rigging
- Sideplate opens while remaining attached to the anchor (when unloaded) for faster rope installation
- Designed for mechanical advantage systems, redirects and haul setups
- Black finish version for discreet, professional appearance
- Suitable for professional arborist, rescue and rope access applications
Specifications
| Model | Rock Exotica P53D-B Omni-Block 2.0" Double (Black) |
| Part Number | P53 D |
| Rope Compatibility | Up to 13 mm (0.5") diameter |
| Weight | 591 g (20.9 oz) |
| MBS (Maximum Breaking Strength) | 40 kN |
| WLL (Working Load Limit) | 8 kN |
| Certification | CE Certified |
FAQs
What is the benefit of a double Omni-Block pulley?
The double-sheave design allows you to build compact mechanical advantage systems, redirects and load-sharing setups while keeping the rigging centred and aligned via the integrated swivel.
Can I open the sideplate while the pulley is still attached?
Yes. The Omni-Block sideplate can be opened while the unit remains clipped to the anchor, as long as it is fully unloaded. This makes rope installation and removal quicker and more secure.
What rope size is compatible with the P53D-B?
The P53D-B is designed for use with ropes up to 13 mm (0.5") in diameter.
Is the P53D-B suitable for professional rigging and rescue work?
Yes. With an 8 kN WLL and 40 kN MBS, the P53D-B is built for demanding professional applications in arboriculture, rope access and rescue (within the limits of relevant standards and best practice).
What is the advantage of the integrated swivel?
The swivel prevents the system from twisting under load, helping to reduce rope wear and making complex rigging setups easier to manage.
Weights & Measures
| Min Breaking Strength | 40kN |
|---|---|
| Weight | 348g |
| Material | Aluminium |
| Working Load Limit (WLL) | 10kN |
| Rope Size | 13mm |
| SWL | 8kN |
| MBS | 36kN |
