TSA 500 Cordless Disc Cut-Off Machine 14"
SKU: Stihl | TS-4864 011 6620
1.
Machine Only
required Step 1 Machine Only. This step is required
TSA 500 Cordless 14" Disc Cut-Off Machine
- required
required
2.
Add the Right Battery
optional Step 2 Add the Right Battery. This step is optional

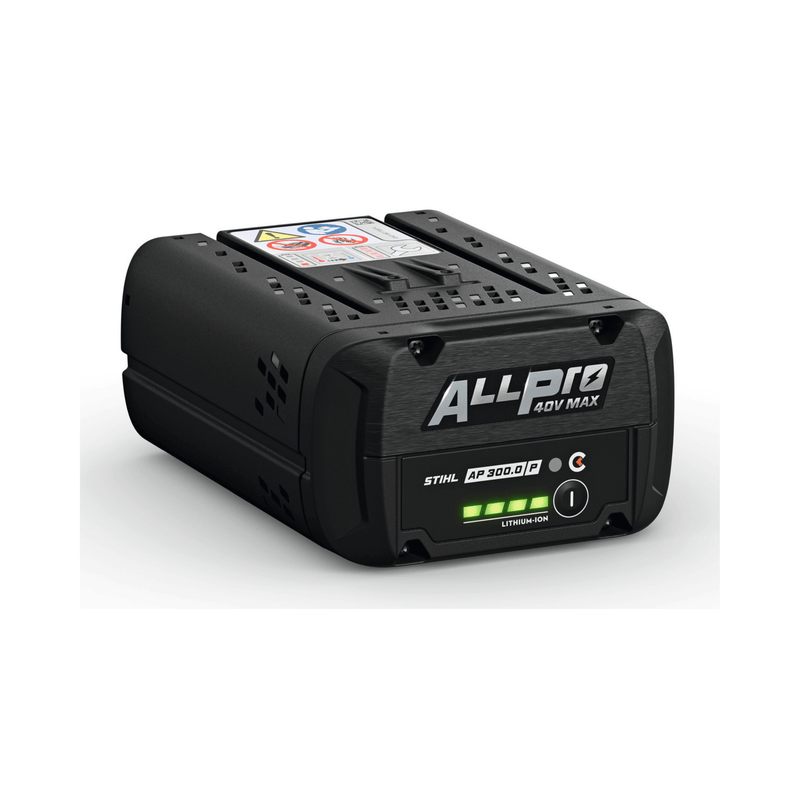

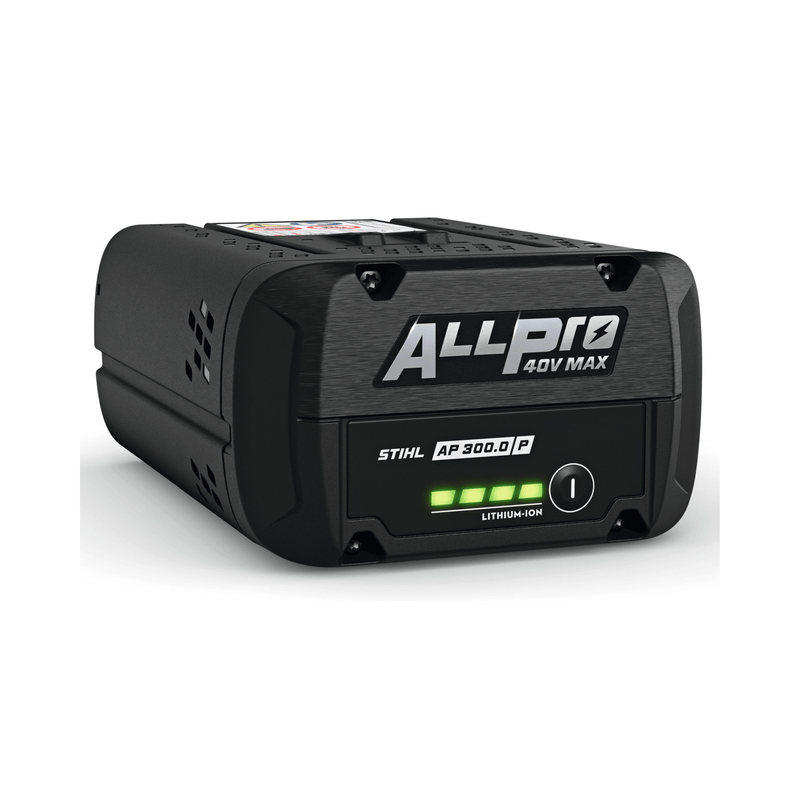

AP 300S Battery
AP 500 S Battery
3.
Add a Charger
optional Step 3 Add a Charger. This step is optional
AL 301 Quick Hi-Speed Battery Charger
AL 301-4 Hi-speed Multi Battery Charger
AL 501 Hi-Speed Battery Charger
4.
Recommended Accessories
optional Step 4 Recommended Accessories. This step is optional
Ultrasonic Safety Goggles
CR 6 Wall Mount for AL Chargers
- Regular price
- £974.25 Ex VAT
- £1,169.10 Inc VAT
- Sale price
- £974.25 £974.25 Ex VAT
- Regular price
-
- £1,169.10 £1,169.10 Inc VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
STIHL Approved Dealer
As a STIHL Approved Dealer, we supply genuine UK-spec machines with full manufacturer warranty, professional preparation, and expert aftersales support.
Product information & specifications
STIHL TSA 500 Cordless Cut-off Machine – Tool Only (14" / 350 mm)
The STIHL TSA 500 is a high-performance 14" (350 mm) battery-powered cut-off machine in the STIHL AP System, engineered for professional construction, hardscaping, utility installation and site work. Using the combined power of two AP batteries to drive its 72 V motor, the TSA 500 delivers exceptional cutting capability on a wide range of materials including steel, concrete, natural stone, paving slabs, rebar, bricks and reinforced concrete.
Providing cutting performance comparable to the STIHL TS 500i petrol model, the TSA 500 gives you all the advantages of battery power: low noise, zero emissions, instant start, no idling between cuts and reduced vibration. A narrow kerf and low-vibration motor design increase cutting accuracy and allow a maximum cutting depth of 125 mm (4.9").
The fully adjustable STIHL magnesium guard includes an integrated water guide for effective dust suppression and improved visibility. The machine is well-balanced thanks to optimised handle geometry, motor placement and battery positioning, ensuring comfortable handling and reduced fatigue during continuous use.
The TSA 500 includes a built-in fast-stop brake, bringing the cutting wheel to a halt in under 4 seconds, while recuperating energy back into the battery. A magnetic pre-filter protects internal components from metal dust and particles and can be removed quickly for easy cleaning.
Fitted with an intelligent onboard interface, you can instantly view charge status and select between three speed levels. This model is also fully compatible with STIHL connected fleet management.
Please Note: This model is supplied as tool only. Batteries and chargers are sold separately.
Key Features
- Powerful 14" / 350 mm battery cut-off machine for professional applications
- Comparable cutting performance to the STIHL TS 500i petrol machine
- Uses two AP batteries simultaneously for 72 V output and exceptional torque
- Narrow kerf design allows accurate, smooth cutting and reduced resistance
- Maximum cutting depth of 125 mm (4.9")
- Low-vibration, low-noise, zero-emission operation – suitable for indoor use
- Adjustable magnesium guard with integrated water guide for targeted dust control
- Fast-stop electric brake halts the wheel in under 4 seconds while recuperating energy
- Magnetic pre-filter protects the motor from metal dust and is easy to clean
- Electronic control interface shows battery level and operating mode (1–3)
- Ergonomic, well-balanced design for reduced fatigue during extended use
- STIHL connected ready
Recommended Cutting Wheels
- Supplied with composite resin cutting wheel (high cutting performance)
- Recommended: STIHL D-SB90 Diamond Wheel for demanding and continuous cutting
Working Time
For maximum performance, use the STIHL AP 500 S battery. Working time with AP 500 S: approx. 20–40 minutes (depending on material)
Specifications
| Model | STIHL TSA 500 (Tool Only) |
| Cutting Wheel Diameter | 350 mm / 14" |
| Maximum Cutting Depth | 125 mm / 4.9" |
| Motor Output | Up to 4.2 kW mechanical output |
| Battery System | STIHL AP System (uses two AP batteries) |
| Compatible Batteries | AP 500 S (maximum performance), AP 200 S / AP 300 S (reduced performance) |
| Drive | Brushless EC motor |
| Features | Fast-stop brake, STIHL connected, adjustable magnesium guard, magnetic filter |
FAQs
Is the TSA 500 really as powerful as a petrol cut-off saw?
Yes. Its performance is comparable to the STIHL TS 500i, delivering petrol-level power with the benefits of battery technology.
Which battery should I use for maximum performance?
The STIHL AP 500 S is required for full performance and longest working time.
Can the TSA 500 be used indoors?
Yes. Thanks to zero emissions and low noise, it is suitable for indoor use with proper ventilation and dust suppression.
Does the TSA 500 include a cutting wheel?
Yes. It is supplied with a high-performance composite resin wheel. For demanding or continuous cutting, we recommend upgrading to the D-SB90 Diamond Wheel.
Is this supplied with batteries or charger?
No. This is a tool-only model. Batteries and chargers must be purchased separately.
What types of material can it cut?
Steel, rebar, bricks, concrete, reinforced concrete, natural stone, paving stone and more.
Technical details
| Rated voltage | 72 V |
| Max. voltage | 80 V |
| Power | 4.20 kW 1) |
| Battery system | AP |
| Recommended battery | AP 500 S |
| Device weight without battery | 9.1 kg 2) |
| Cutting disc diameter | 350 mm |
| Max. cutting depth | 125 mm |
| IPX Rating | IPX4 |
| Min. battery working time AP 200 S | 8 min 3) |
| Max. battery working time AP 200 S | 16 min 3) |
| Min. battery working time AP 300 S | 15 min 3) |
| Max. battery working time AP 300 S | 30 min 3) |
| Min. battery working time AP 500 S | 20 min 3) |
| Max. battery working time AP 500 S | 40 min 3) |
| Device length with cutting disc | 82.1 cm |
| Sound pressure level | 106 dB(A) 4) |
| Sound power level | 117 dB(A) 5) |
| Vibration level, left | 2.4 m/s² |
| Vibration level, right | 2 m/s² |
STIHL TSA 500 Cordless Cut-off Machine – Tool Only (14" / 350 mm)
The STIHL TSA 500 is a high-performance 14" (350 mm) battery-powered cut-off machine in the STIHL AP System, engineered for professional construction, hardscaping, utility installation and site work. Using the combined power of two AP batteries to drive its 72 V motor, the TSA 500 delivers exceptional cutting capability on a wide range of materials including steel, concrete, natural stone, paving slabs, rebar, bricks and reinforced concrete.
Providing cutting performance comparable to the STIHL TS 500i petrol model, the TSA 500 gives you all the advantages of battery power: low noise, zero emissions, instant start, no idling between cuts and reduced vibration. A narrow kerf and low-vibration motor design increase cutting accuracy and allow a maximum cutting depth of 125 mm (4.9").
The fully adjustable STIHL magnesium guard includes an integrated water guide for effective dust suppression and improved visibility. The machine is well-balanced thanks to optimised handle geometry, motor placement and battery positioning, ensuring comfortable handling and reduced fatigue during continuous use.
The TSA 500 includes a built-in fast-stop brake, bringing the cutting wheel to a halt in under 4 seconds, while recuperating energy back into the battery. A magnetic pre-filter protects internal components from metal dust and particles and can be removed quickly for easy cleaning.
Fitted with an intelligent onboard interface, you can instantly view charge status and select between three speed levels. This model is also fully compatible with STIHL connected fleet management.
Please Note: This model is supplied as tool only. Batteries and chargers are sold separately.
Key Features
- Powerful 14" / 350 mm battery cut-off machine for professional applications
- Comparable cutting performance to the STIHL TS 500i petrol machine
- Uses two AP batteries simultaneously for 72 V output and exceptional torque
- Narrow kerf design allows accurate, smooth cutting and reduced resistance
- Maximum cutting depth of 125 mm (4.9")
- Low-vibration, low-noise, zero-emission operation – suitable for indoor use
- Adjustable magnesium guard with integrated water guide for targeted dust control
- Fast-stop electric brake halts the wheel in under 4 seconds while recuperating energy
- Magnetic pre-filter protects the motor from metal dust and is easy to clean
- Electronic control interface shows battery level and operating mode (1–3)
- Ergonomic, well-balanced design for reduced fatigue during extended use
- STIHL connected ready
Recommended Cutting Wheels
- Supplied with composite resin cutting wheel (high cutting performance)
- Recommended: STIHL D-SB90 Diamond Wheel for demanding and continuous cutting
Working Time
For maximum performance, use the STIHL AP 500 S battery. Working time with AP 500 S: approx. 20–40 minutes (depending on material)
Specifications
| Model | STIHL TSA 500 (Tool Only) |
| Cutting Wheel Diameter | 350 mm / 14" |
| Maximum Cutting Depth | 125 mm / 4.9" |
| Motor Output | Up to 4.2 kW mechanical output |
| Battery System | STIHL AP System (uses two AP batteries) |
| Compatible Batteries | AP 500 S (maximum performance), AP 200 S / AP 300 S (reduced performance) |
| Drive | Brushless EC motor |
| Features | Fast-stop brake, STIHL connected, adjustable magnesium guard, magnetic filter |
FAQs
Is the TSA 500 really as powerful as a petrol cut-off saw?
Yes. Its performance is comparable to the STIHL TS 500i, delivering petrol-level power with the benefits of battery technology.
Which battery should I use for maximum performance?
The STIHL AP 500 S is required for full performance and longest working time.
Can the TSA 500 be used indoors?
Yes. Thanks to zero emissions and low noise, it is suitable for indoor use with proper ventilation and dust suppression.
Does the TSA 500 include a cutting wheel?
Yes. It is supplied with a high-performance composite resin wheel. For demanding or continuous cutting, we recommend upgrading to the D-SB90 Diamond Wheel.
Is this supplied with batteries or charger?
No. This is a tool-only model. Batteries and chargers must be purchased separately.
What types of material can it cut?
Steel, rebar, bricks, concrete, reinforced concrete, natural stone, paving stone and more.
Technical details
| Rated voltage | 72 V |
| Max. voltage | 80 V |
| Power | 4.20 kW 1) |
| Battery system | AP |
| Recommended battery | AP 500 S |
| Device weight without battery | 9.1 kg 2) |
| Cutting disc diameter | 350 mm |
| Max. cutting depth | 125 mm |
| IPX Rating | IPX4 |
| Min. battery working time AP 200 S | 8 min 3) |
| Max. battery working time AP 200 S | 16 min 3) |
| Min. battery working time AP 300 S | 15 min 3) |
| Max. battery working time AP 300 S | 30 min 3) |
| Min. battery working time AP 500 S | 20 min 3) |
| Max. battery working time AP 500 S | 40 min 3) |
| Device length with cutting disc | 82.1 cm |
| Sound pressure level | 106 dB(A) 4) |
| Sound power level | 117 dB(A) 5) |
| Vibration level, left | 2.4 m/s² |
| Vibration level, right | 2 m/s² |
