Zubat Replacement Parts
SKU: Silky Fox | SF-KSI310540
Key Features
- 19 individual Zubat replacement parts
- Ref numbers match the exploded parts diagram
- Blade, scabbard parts, poles, push buttons and fixings
- Choose the exact part from the Part option
- Regular price
- £2.94 Ex VAT
- £3.53 Inc VAT
- RRP: £40.60 Ex VATSave 92%
- Sale price
- £2.94 £2.94 Ex VAT
- Regular price
-
- £3.53 £3.53 Inc VAT
Saturday delivery (), £13.99 ex VAT
Seaton Burn, Newcastle upon Tyne,
Tyne and Wear, NE13 6DA
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications
Silky Zubat Pole Saw Replacement Parts

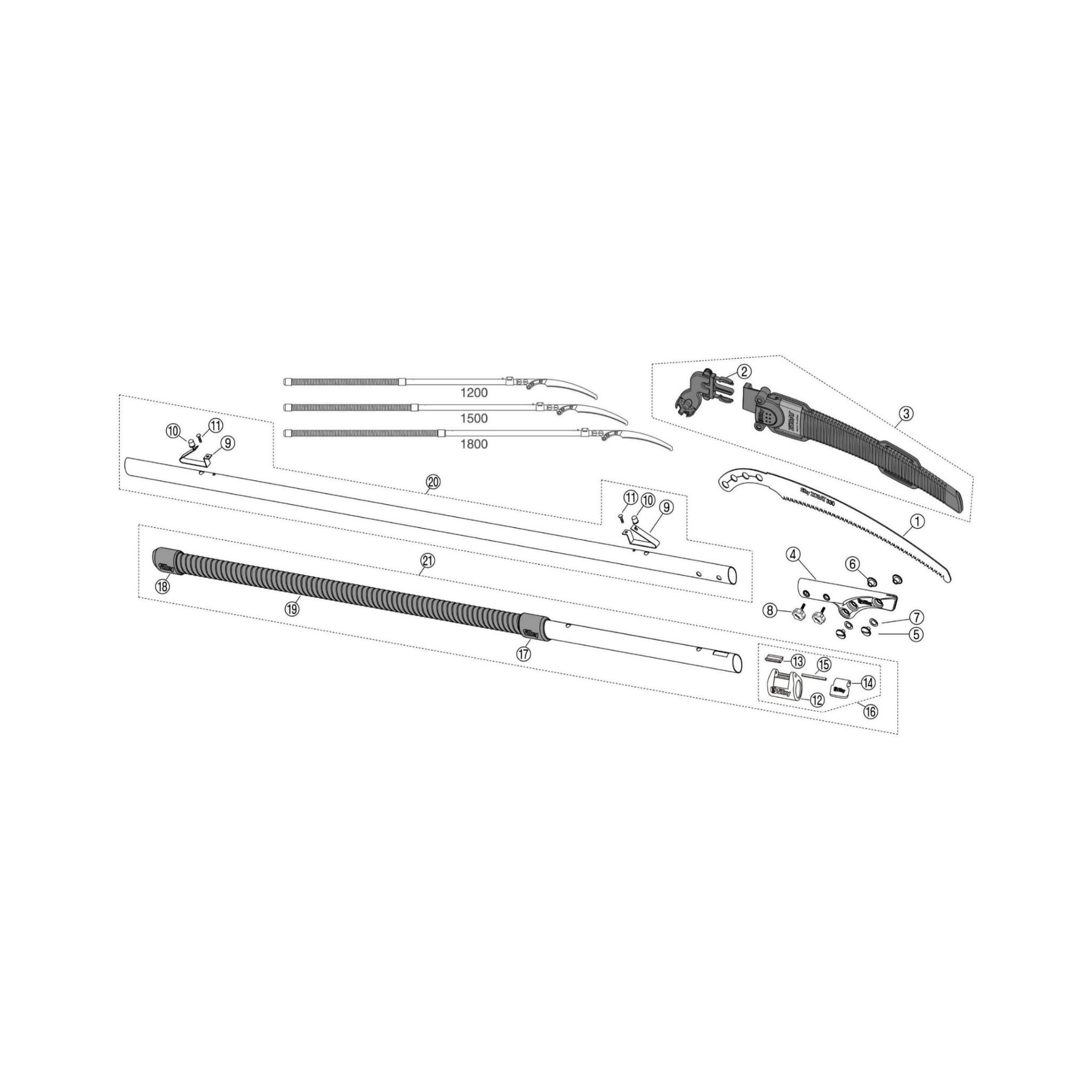

Keep your Silky Zubat pole saw working like new by replacing only the part that has worn or broken. Choose from 19 individual parts, from the 330 blade and scabbard parts to the telescopic poles, push buttons, shaking-proof stopper set and fixings. Reference numbers match the exploded parts diagram so you can pick the exact part.
Silky is a Japanese precision saw brand with a long-standing reputation among professional arborists. Gustharts is an authorised Silky Fox dealer.
Check before ordering: match the Ref number on the parts diagram to the option you select. Part codes are listed in the table below and on the product page.
Pole lengths: upper and lower poles come in three lengths (1200/2700, 1500/3300 and 1800/3900). Choose the length that matches your saw. The rubber sole (Ref 18) and rubber tape (Ref 19) are made to order.
Updated part: Ref 8 (bolt) is the version fitted since 2012.
Zubat Parts Guide
Select your part from the Part option. The Zubat pole saw head complete is also available for a full head replacement.
| Ref | Part | Part Code |
|---|---|---|
| 1 | Blade Zubat 330 | SF-KSI327133 |
| 2 | Male Clip Scabbard | SF-KZSI2720038 |
| 3 | Scabbard Set | SF-KZSI327251 |
| 4 | Blade Fixing Pipe | SF-KSI327003N |
| 5-6-7 | Boltset | SF-KSI310540 |
| 8 | Bolt (since 2012) | SF-KZSI2720432 |
| 9 | Spring Push Button | SF-KZSI3700478 |
| 10 | Push Button | SF-KZSI3650438 |
| 11 | Spring Fixing Bolt | SF-KZSI3700477 |
| 16 | Shaking-Proof Stopper Set | SF-KZSI3272129 |
| 18 | Rubber Sole (to order) | SF-KZSI2720403 |
| 19 | Rubber Tape (to order) | SF-KZSI2720404 |
| 20 | Upper Pole Zubat 1200/2700 | SF-KZSI3272121 |
| 20 | Upper Pole Zubat 1500/3300 | SF-KZSI3272151 |
| 20 | Upper Pole Zubat 1800/3900 | SF-KZSI3272181 |
| 21 | Lower Pole Zubat 1200/2700 | SF-KZSI3272122 |
| 21 | Lower Pole Zubat 1500/3300 | SF-KZSI3272152 |
| 21 | Lower Pole Zubat 1800/3900 | SF-KZSI3272182 |
| - | Zubat Pole Saw Head Complete | SF-KSI371333 |
Why Buy Individual Parts?
A worn push button, a lost bolt or a damaged pole section does not mean a new pole saw. Replacing just the failed part keeps a well-built Zubat in service for far longer and costs a fraction of a new unit.
Often Replaced Alongside
Often replaced alongside: the Zubat Arborist 330mm Replacement Blade, the Zubat Replacement Base Pole and the Zubat Belt Clip.
Also Known As
Also searched for as: Silky Zubat spare parts, Zübat pole saw parts, Zubat replacement parts, Silky pole saw spares, Zubat pole saw pole sections.
FAQs
How do I find the right part number?
Use the Ref number on the exploded parts diagram, then select the matching option from the Part list. Each option shows its Ref and name.
Which pole length do I need?
Upper (Ref 20) and lower (Ref 21) poles are available as 1200/2700, 1500/3300 and 1800/3900. The figures match your saw's closed and extended lengths in mm, so check the model on your saw.
Can I replace the whole saw head?
Yes. The Zubat Pole Saw Head Complete replaces the blade and head assembly in one go. For a worn blade only, choose Ref 1.
Are the rubber sole and tape in stock?
Ref 18 (rubber sole) and Ref 19 (rubber tape) are made to order, so allow extra time for delivery.
Are these parts for the Zubat pole saw only?
This listing covers the Zubat pole saw parts diagram. For the hand saw versions, see our Zubat blades and pruning saws.
