LD1 Lowering Device
SKU: Arbpro | AP-LD1
- Regular price
- £1,886.63 Ex VAT
- £2,263.96 Inc VAT
- Sale price
- £1,886.63 £1,886.63 Ex VAT
- Regular price
-
- £2,263.96 £2,263.96 Inc VAT
- Was £1,886.63 Ex VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

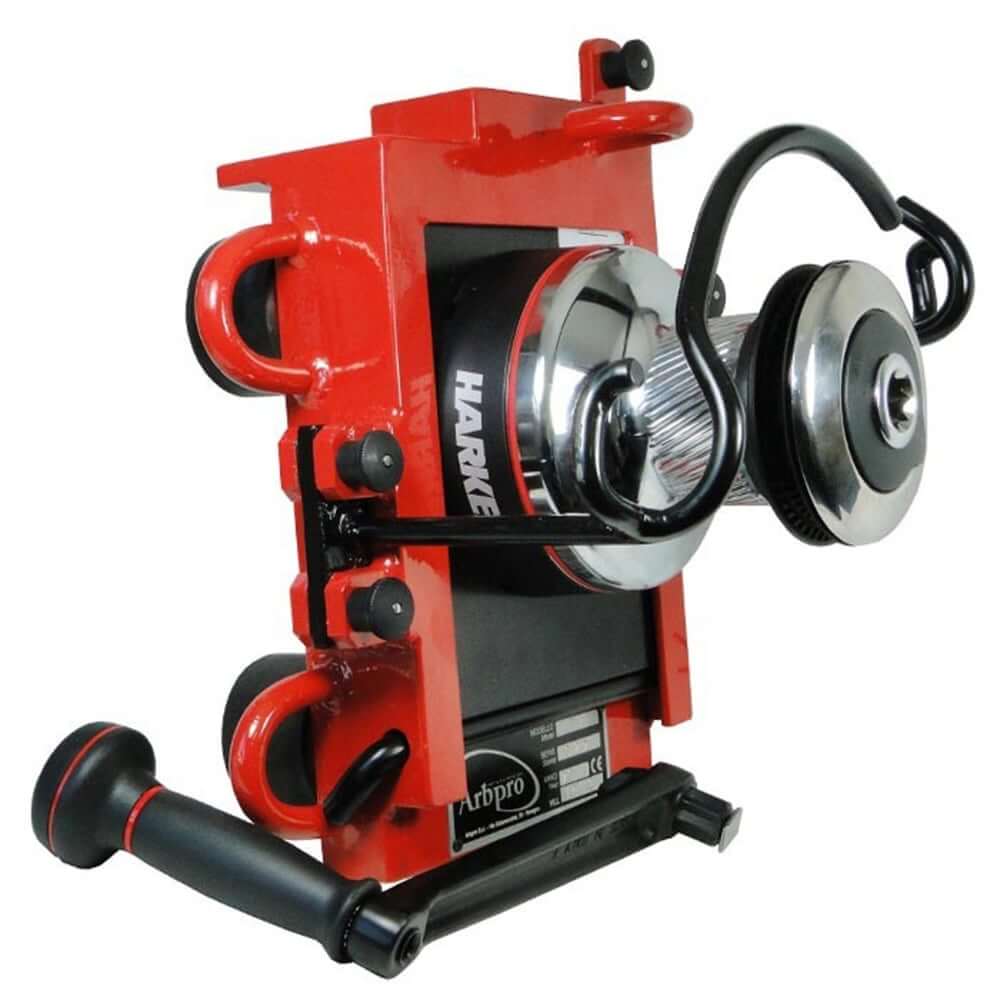

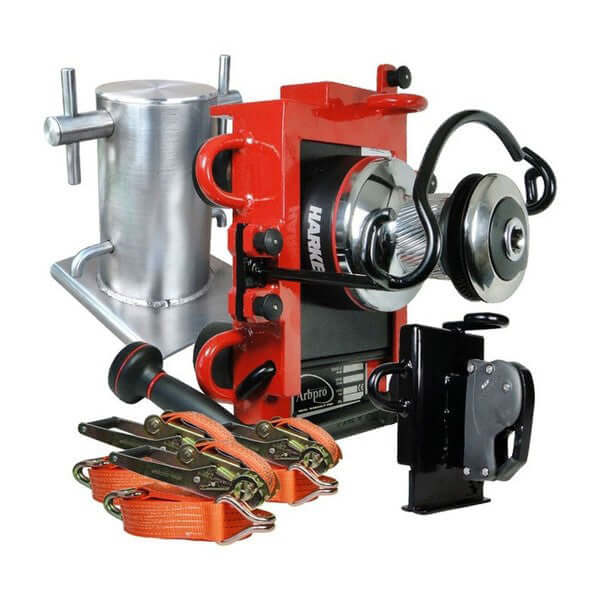

Arbpro LD1 Rigging System with Harken Winch & Steel Bollard
The Arbpro LD1 Rigging System is a modular, CE-certified lifting and lowering system designed for demanding professional tree rigging. Combining a Harken self-tailing winch, robust steel bollard and Spinlock rope clutch, the LD1 gives arborists flexible control during lifting, lowering and complex dismantling operations.
Mounted on a durable welded steel frame with rubber feet and supplied with heavy-duty ratchet straps, the Arbpro LD1 provides stable, tree-friendly attachment for professional rigging work. The winch and bollard can be quickly swapped depending on the task, making it a versatile system for controlled lifting, lowering, load holding and technical removals.
Key Features
- Arbpro LD1 modular lifting and lowering rigging system
- Includes Harken 2-speed self-tailing winch
- Includes robust 140mm steel rigging bollard
- Spinlock XTS rope clutch with separate base plate
- Allows secure load holding during transitions
- Winch and bollard can be quickly interchanged
- Durable welded steel frame with rubber feet
- Supplied with three heavy-duty ratchet straps
- Tree-friendly mounting for protected stems
- Ideal for complex removals and demanding rigging applications
- CE-compliant according to Machinery Directive 2006/42/EC
Modular Lifting & Lowering System
The Arbpro LD1 is designed to give arborists flexibility on site. The Harken winch and steel bollard can be swapped depending on whether the job requires controlled lifting, controlled lowering or a combination of both.
Harken 2-Speed Winch
The included Harken self-tailing winch provides powerful mechanical advantage for lifting operations. With 40:1 and 13.5:1 ratios, it helps climbers and ground teams manage demanding loads with greater control and efficiency.

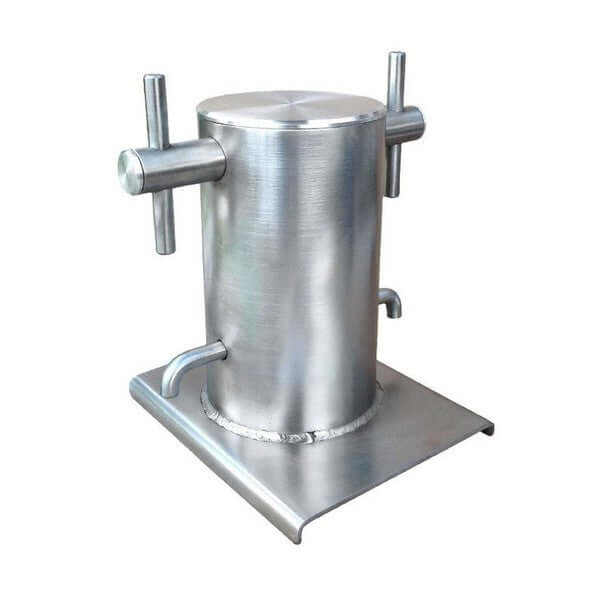

Steel Rigging Bollard
The 140mm rigging bollard provides a strong lowering point for controlled descent of timber and branches, making the LD1 suitable for a wide range of dismantling and rigging tasks.

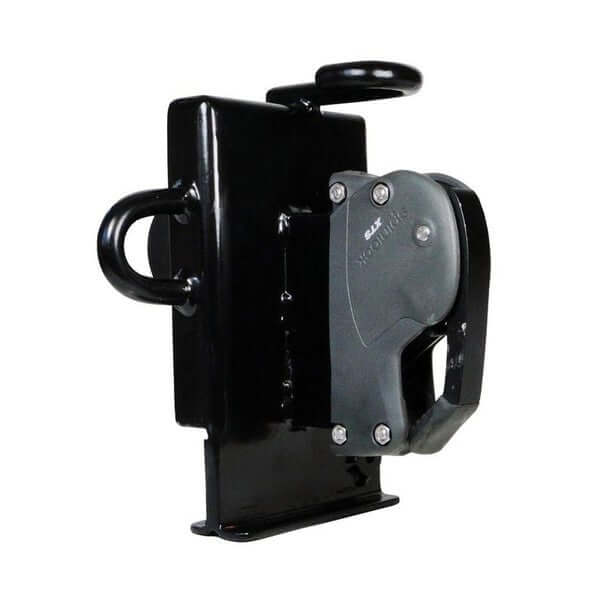

Spinlock Rope Clutch
The Spinlock XTS rope clutch allows the load to be temporarily held securely. This is especially useful when switching between the winch and bollard or when the load needs to be safely secured during a rigging operation.
Stable Tree-Friendly Mounting
The welded steel frame is fitted with rubber feet to support secure mounting while helping protect the tree. Three heavy-duty ratchet straps are supplied for strong and stable installation on the stem.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Arbpro LD1 Rigging System |
| System Type | Modular lifting and lowering rigging system |
| Frame | Welded steel frame with rubber feet |
| Frame Weight | 15kg |
| Winch | Harken 2-speed self-tailing winch |
| Winch Ratios | 40:1 and 13.5:1 |
| Winch Weight | 6.3kg |
| Rigging Bollard | Steel bollard, 140mm diameter |
| Bollard Weight | 11kg |
| Rope Clutch | Spinlock XTS with base plate |
| Breaking Load with Rope Clutch | 4900kg |
| Safe Working Load - Winch | 800kg |
| Safe Working Load - Bollard | 1000kg |
| Rope Compatibility - Winch & Clutch | 12–14mm |
| Rope Compatibility - Bollard | 12–16mm |
| Supplied Mounting | Three heavy-duty ratchet straps |
| Compliance | CE-compliant according to Machinery Directive 2006/42/EC |
Ideal For
- Professional arborists and tree surgeons
- Complex tree removals
- Controlled lifting and lowering operations
- Technical rigging and dismantling
- Large timber and branch handling
- Ground teams needing secure load control
- Arborists wanting a modular winch and bollard system
Explore More
Best For
The Arbpro LD1 Rigging System is best suited to professional arborists who need a compact, powerful and modular lifting and lowering system for complex dismantling and demanding rigging applications.
Why Choose the Arbpro LD1 Rigging System?
With its interchangeable Harken winch and steel bollard, Spinlock rope clutch, strong welded frame and tree-friendly mounting system, the Arbpro LD1 gives rigging teams excellent control, flexibility and stability during advanced tree removal work.
| Weight of the main steel part: | 15 kg |
| Harken reel weight: | 6.3 kg |
| Drum diameter: | 140 mm |
| Drum weight: | 11 kg |
| Strength with latch: | 4,900 kg |
| Working load with winch: | 800 kg |
| Working load with drum: | 1,000 kg |
| Rope diameter: | 12 - 16 mm |
Arbpro LD1 Rigging System with Harken Winch & Steel Bollard
The Arbpro LD1 Rigging System is a modular, CE-certified lifting and lowering system designed for demanding professional tree rigging. Combining a Harken self-tailing winch, robust steel bollard and Spinlock rope clutch, the LD1 gives arborists flexible control during lifting, lowering and complex dismantling operations.
Mounted on a durable welded steel frame with rubber feet and supplied with heavy-duty ratchet straps, the Arbpro LD1 provides stable, tree-friendly attachment for professional rigging work. The winch and bollard can be quickly swapped depending on the task, making it a versatile system for controlled lifting, lowering, load holding and technical removals.
Key Features
- Arbpro LD1 modular lifting and lowering rigging system
- Includes Harken 2-speed self-tailing winch
- Includes robust 140mm steel rigging bollard
- Spinlock XTS rope clutch with separate base plate
- Allows secure load holding during transitions
- Winch and bollard can be quickly interchanged
- Durable welded steel frame with rubber feet
- Supplied with three heavy-duty ratchet straps
- Tree-friendly mounting for protected stems
- Ideal for complex removals and demanding rigging applications
- CE-compliant according to Machinery Directive 2006/42/EC
Modular Lifting & Lowering System
The Arbpro LD1 is designed to give arborists flexibility on site. The Harken winch and steel bollard can be swapped depending on whether the job requires controlled lifting, controlled lowering or a combination of both.
Harken 2-Speed Winch
The included Harken self-tailing winch provides powerful mechanical advantage for lifting operations. With 40:1 and 13.5:1 ratios, it helps climbers and ground teams manage demanding loads with greater control and efficiency.
Steel Rigging Bollard
The 140mm rigging bollard provides a strong lowering point for controlled descent of timber and branches, making the LD1 suitable for a wide range of dismantling and rigging tasks.
Spinlock Rope Clutch
The Spinlock XTS rope clutch allows the load to be temporarily held securely. This is especially useful when switching between the winch and bollard or when the load needs to be safely secured during a rigging operation.
Stable Tree-Friendly Mounting
The welded steel frame is fitted with rubber feet to support secure mounting while helping protect the tree. Three heavy-duty ratchet straps are supplied for strong and stable installation on the stem.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Arbpro LD1 Rigging System |
| System Type | Modular lifting and lowering rigging system |
| Frame | Welded steel frame with rubber feet |
| Frame Weight | 15kg |
| Winch | Harken 2-speed self-tailing winch |
| Winch Ratios | 40:1 and 13.5:1 |
| Winch Weight | 6.3kg |
| Rigging Bollard | Steel bollard, 140mm diameter |
| Bollard Weight | 11kg |
| Rope Clutch | Spinlock XTS with base plate |
| Breaking Load with Rope Clutch | 4900kg |
| Safe Working Load - Winch | 800kg |
| Safe Working Load - Bollard | 1000kg |
| Rope Compatibility - Winch & Clutch | 12–14mm |
| Rope Compatibility - Bollard | 12–16mm |
| Supplied Mounting | Three heavy-duty ratchet straps |
| Compliance | CE-compliant according to Machinery Directive 2006/42/EC |
Ideal For
- Professional arborists and tree surgeons
- Complex tree removals
- Controlled lifting and lowering operations
- Technical rigging and dismantling
- Large timber and branch handling
- Ground teams needing secure load control
- Arborists wanting a modular winch and bollard system
Explore More
Best For
The Arbpro LD1 Rigging System is best suited to professional arborists who need a compact, powerful and modular lifting and lowering system for complex dismantling and demanding rigging applications.
Why Choose the Arbpro LD1 Rigging System?
With its interchangeable Harken winch and steel bollard, Spinlock rope clutch, strong welded frame and tree-friendly mounting system, the Arbpro LD1 gives rigging teams excellent control, flexibility and stability during advanced tree removal work.
| Weight of the main steel part: | 15 kg |
| Harken reel weight: | 6.3 kg |
| Drum diameter: | 140 mm |
| Drum weight: | 11 kg |
| Strength with latch: | 4,900 kg |
| Working load with winch: | 800 kg |
| Working load with drum: | 1,000 kg |
| Rope diameter: | 12 - 16 mm |
