LD2 Lowering Device
SKU: Arbpro | AP-LD2
- Regular price
- £2,658.43 Ex VAT
- £3,190.12 Inc VAT
- Sale price
- £2,658.43 £2,658.43 Ex VAT
- Regular price
-
- £3,190.12 £3,190.12 Inc VAT
- Was £2,658.43 Ex VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

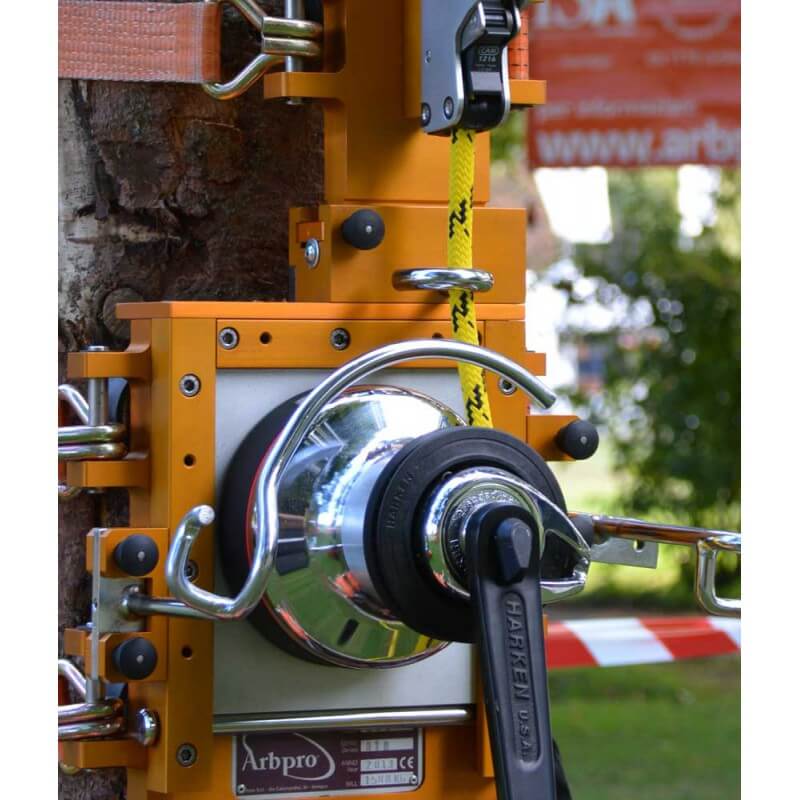

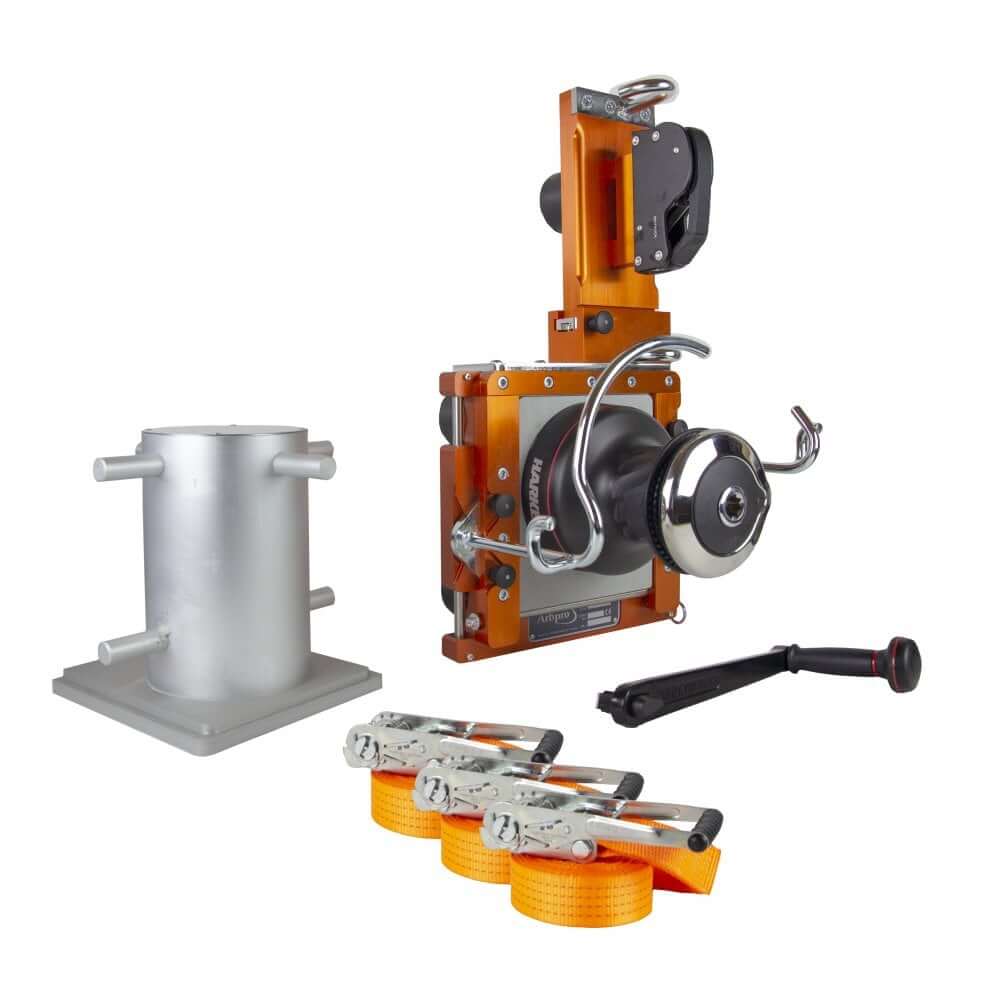

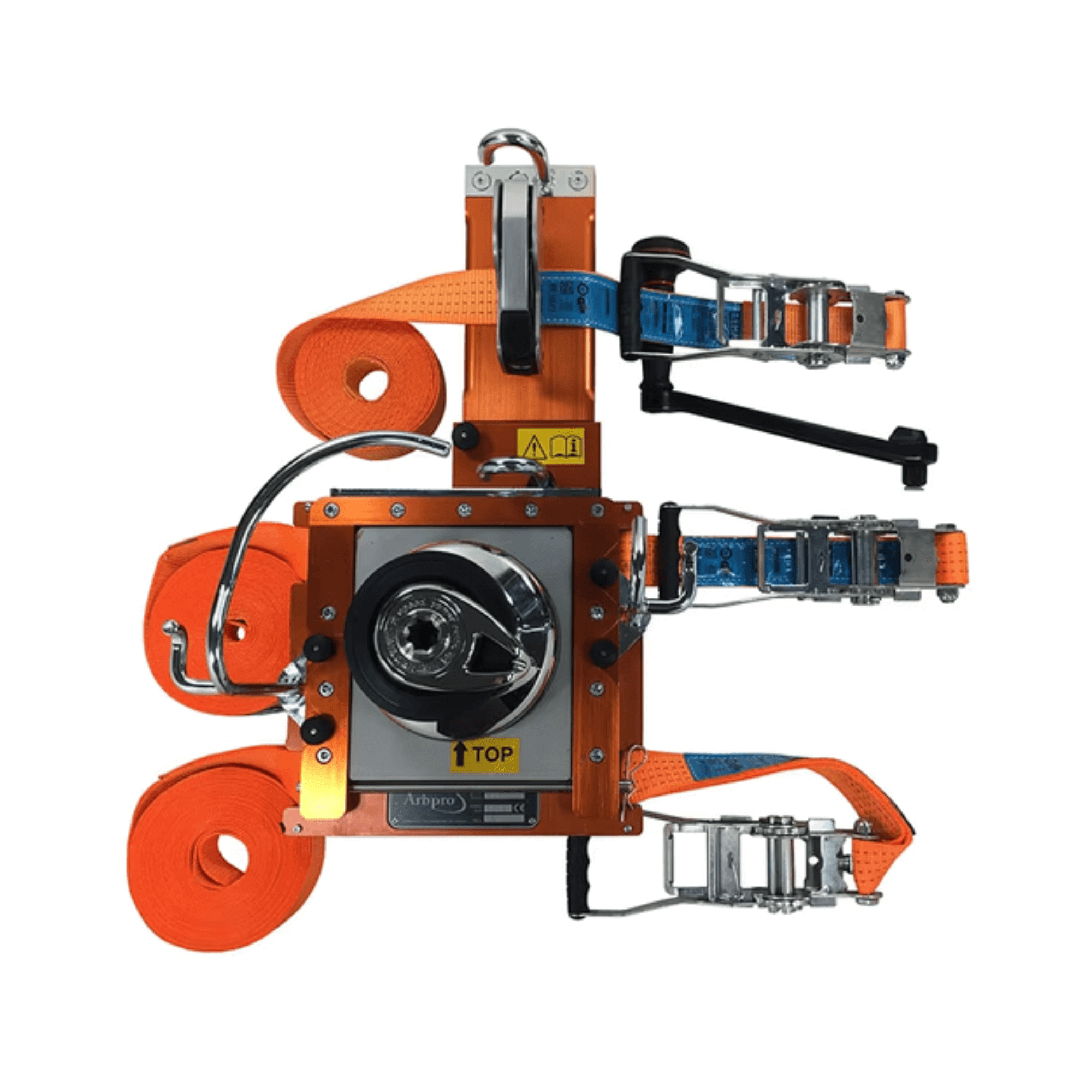

Arbpro LD2 Rigging System with Harken Winch & Steel Bollard
The Arbpro LD2 Rigging System is a modular, CE-certified lifting and lowering system designed for demanding professional tree rigging operations. Combining a powerful 2-speed Harken winch, large 150mm friction bollard and Spinlock XCS rope clutch, the LD2 gives arborists precise control when lifting, lowering and securing heavy loads during complex tree removals.
Built around a robust anodized aluminium frame with stainless steel bolts, rubber feet and heavy-duty ratchet straps, the Arbpro LD2 provides a strong, tree-friendly rigging platform for challenging dismantling work. The winch and bollard can be quickly interchanged, allowing ground teams to adapt between mechanical lifting, controlled lowering and secure load holding with maximum efficiency.
Key Features
- Arbpro LD2 modular lifting and lowering rigging system
- Includes Harken 2-speed winch with 44:1 and 13.5:1 ratios
- Large 150mm aluminium friction bollard for controlled lowering
- Spinlock XCS rope clutch for secure load holding under tension
- Winch and bollard can be quickly interchanged
- Robust anodized aluminium frame with stainless steel bolts
- Weld-free frame construction for strength and corrosion resistance
- Rubber feet help provide secure, bark-friendly mounting
- Supplied with three heavy-duty ratchet straps
- Large bollard contact surface helps reduce rope glazing and wear
- CE-compliant according to Machinery Directive 2006/42/EC
Modular Rigging Control
The Arbpro LD2 is designed to give professional rigging teams maximum flexibility. The Harken winch and friction bollard can be swapped depending on whether the task requires lifting, lowering or a controlled transition between both.

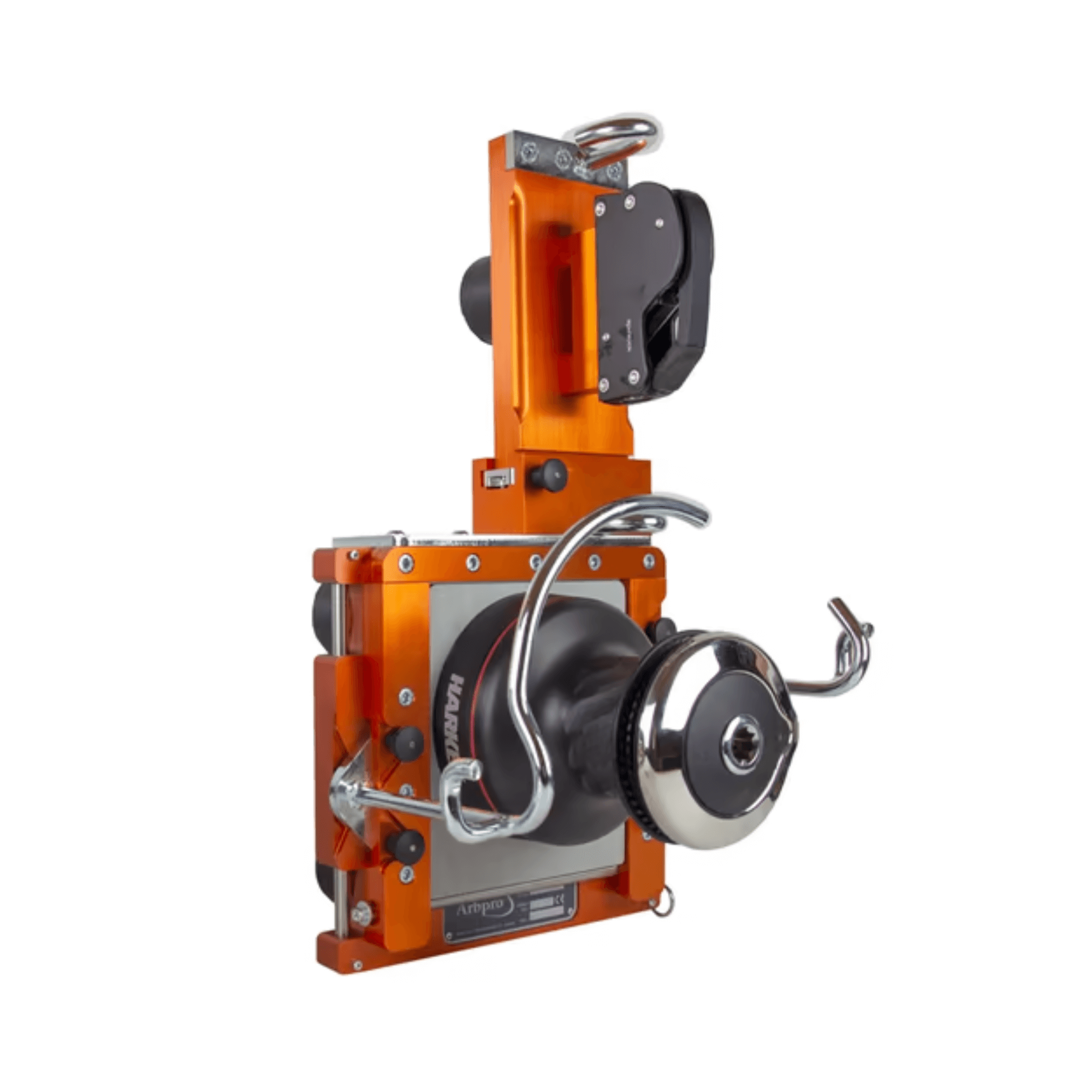

Powerful Harken 2-Speed Winch
The Harken 2-speed winch provides mechanical advantage for heavy lifting operations, with 44:1 and 13.5:1 ratios to help move demanding loads safely and with minimal effort.

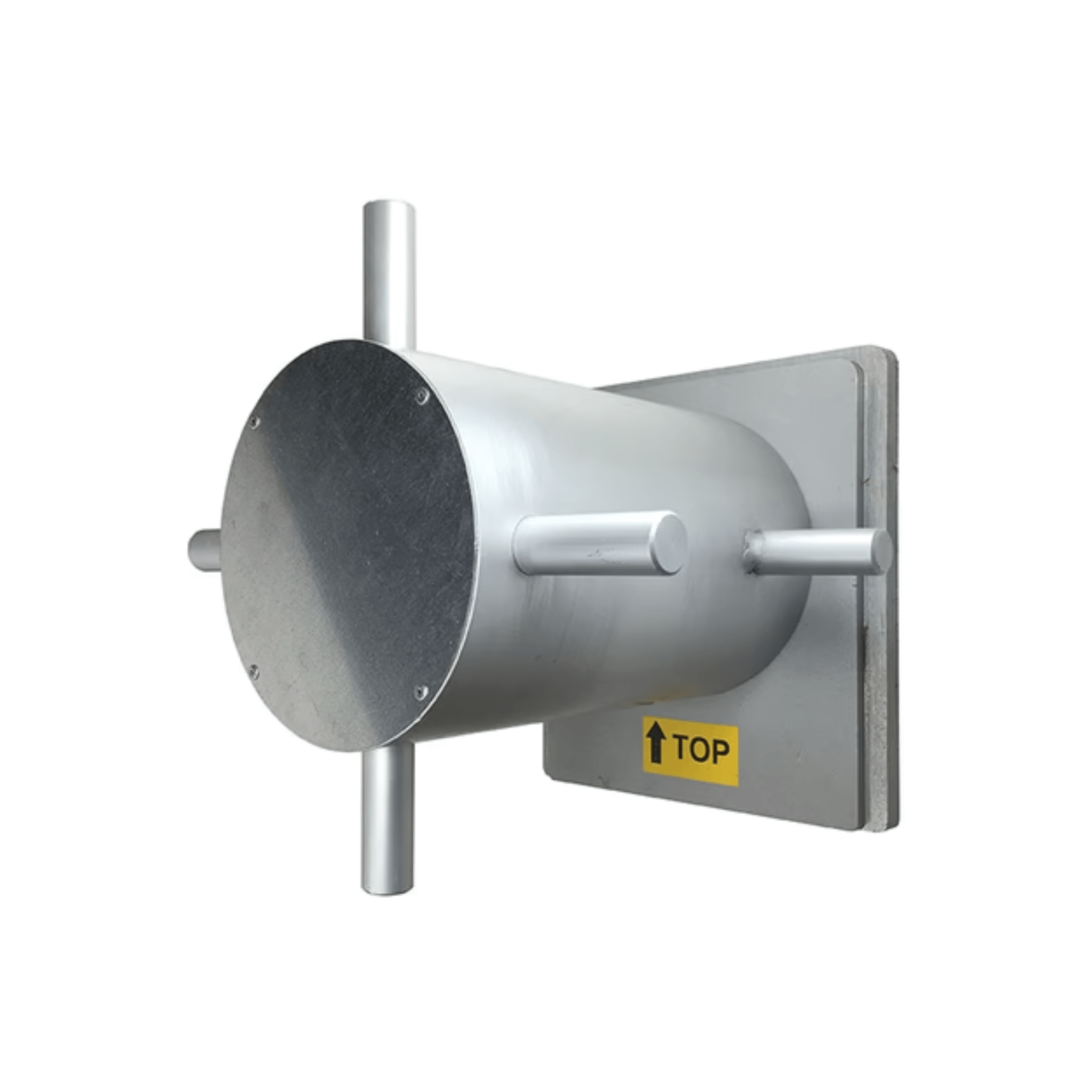

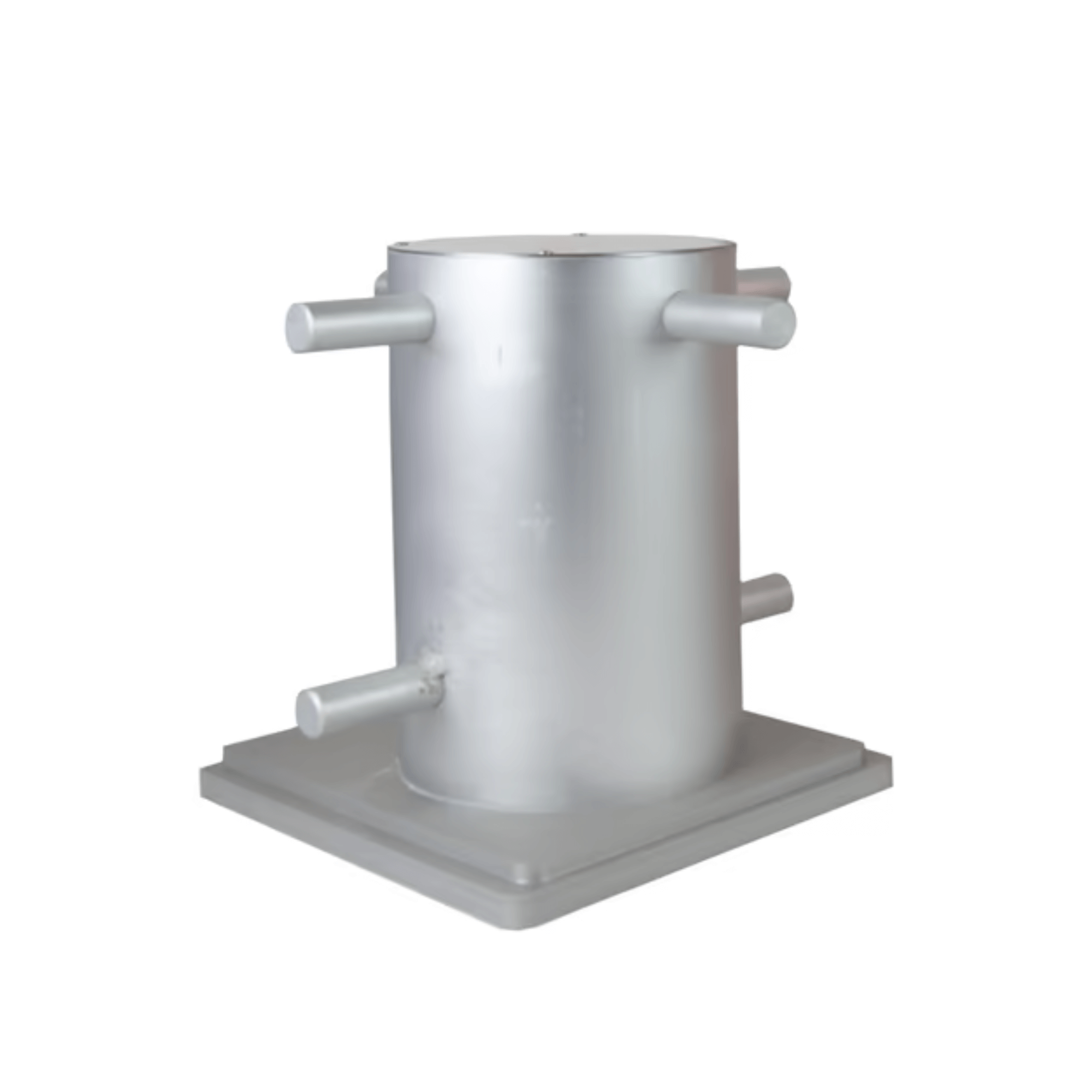

Large 150mm Friction Bollard
The 150mm bollard provides a wide rope contact surface for smoother lowering control. Its heat-conductive aluminium construction helps reduce rope glazing and wear during demanding lowering operations.
Spinlock XCS Rope Clutch
The separately mountable Spinlock XCS rope clutch allows secure load holding, even under tension. This is especially useful when transitioning between the winch and bollard or temporarily securing the load during a complex rigging operation.

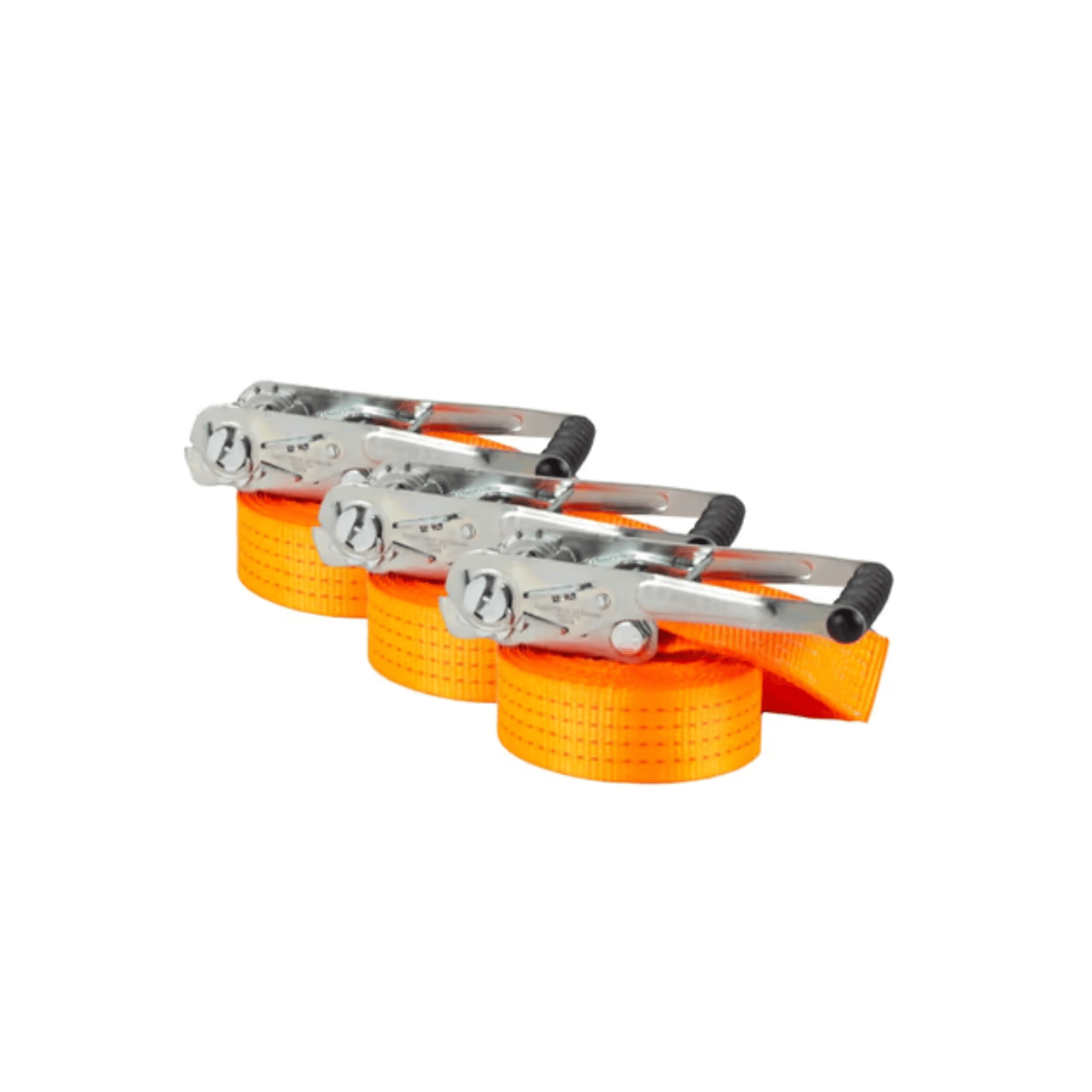

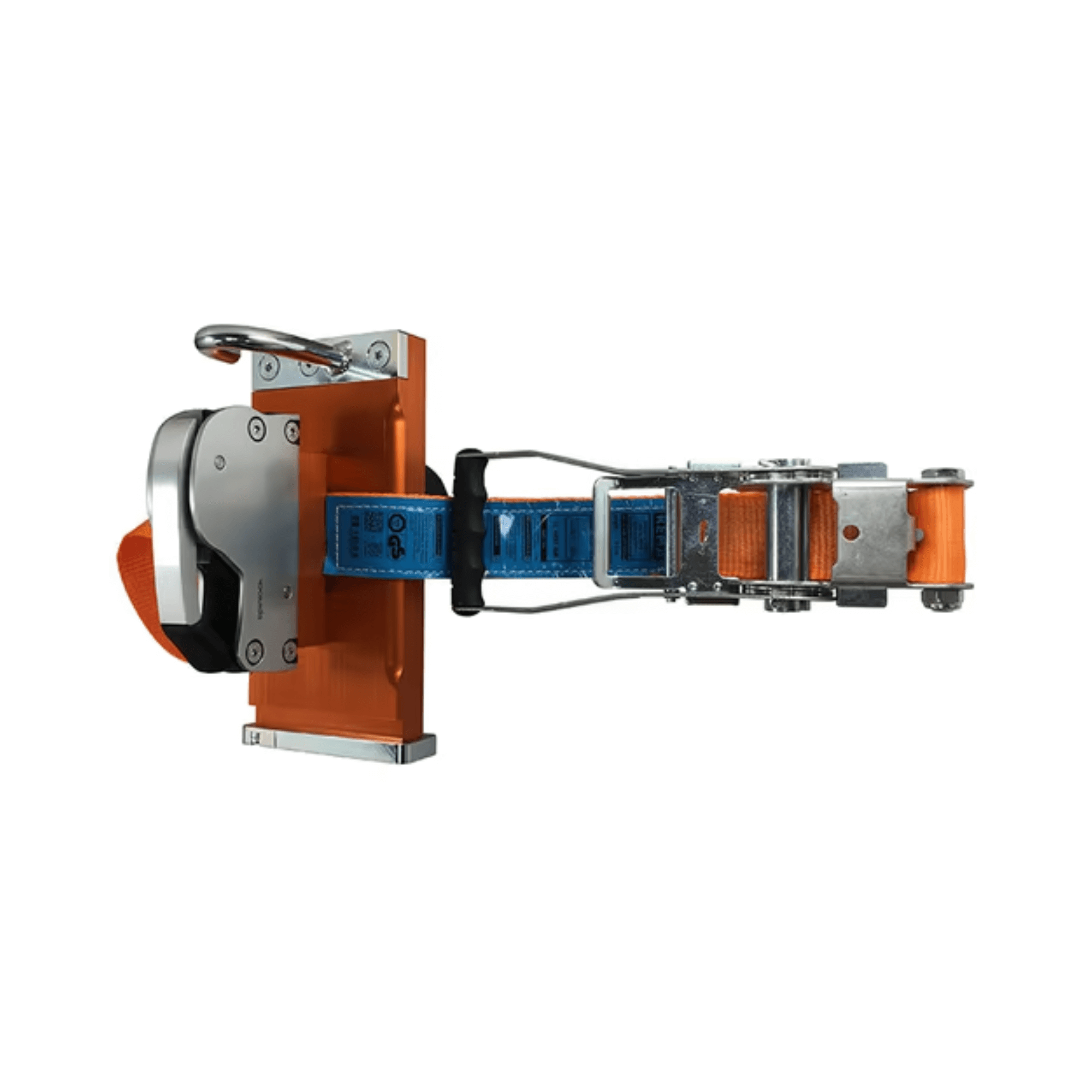

Tree-Friendly Mounting
The anodized aluminium frame includes rubber feet to help protect the stem while maintaining secure positioning. Three heavy-duty ratchet straps are supplied for stable attachment during professional tree rigging work.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Arbpro LD2 Rigging System |
| System Type | Modular lifting and lowering rigging system |
| Frame Material | Anodized aluminium with stainless steel bolts |
| Frame Weight | 16.5kg |
| Winch | Harken 2-speed winch |
| Winch Ratios | 44:1 and 13.5:1 |
| Winch Weight | 9.5kg |
| Friction Bollard | 150mm diameter aluminium bollard |
| Bollard Weight | 5kg |
| Rope Clutch | Spinlock XCS |
| Rope Clutch Breaking Load | 7500kg |
| Safe Working Load - Winch | 1200kg |
| Safe Working Load - Bollard | 1500kg |
| Rope Compatibility - Winch & Clutch | 12–16mm |
| Rope Compatibility - Bollard | 12–19mm |
| Supplied Mounting | Three heavy-duty ratchet straps |
| Compliance | CE-compliant according to Machinery Directive 2006/42/EC |
Ideal For
- Professional arborists and tree surgeons
- Complex tree removals and dismantling
- Heavy-duty lifting and lowering operations
- Technical rigging with secure load holding
- Ground teams needing high control and flexibility
- Reducing rope glazing during controlled lowering
- Advanced arborist rigging systems
Explore More
Best For
The Arbpro LD2 Rigging System is best suited to professional arborists who need a high-capacity modular rigging system for heavy lifting, controlled lowering and complex tree removals.
Why Choose the Arbpro LD2 Rigging System?
With its powerful Harken 2-speed winch, large 150mm friction bollard, Spinlock XCS rope clutch, anodized aluminium frame and tree-friendly mounting system, the Arbpro LD2 delivers exceptional control, flexibility and efficiency for demanding arborist rigging work.
Arbpro LD2 Rigging System with Harken Winch & Steel Bollard
The Arbpro LD2 Rigging System is a modular, CE-certified lifting and lowering system designed for demanding professional tree rigging operations. Combining a powerful 2-speed Harken winch, large 150mm friction bollard and Spinlock XCS rope clutch, the LD2 gives arborists precise control when lifting, lowering and securing heavy loads during complex tree removals.
Built around a robust anodized aluminium frame with stainless steel bolts, rubber feet and heavy-duty ratchet straps, the Arbpro LD2 provides a strong, tree-friendly rigging platform for challenging dismantling work. The winch and bollard can be quickly interchanged, allowing ground teams to adapt between mechanical lifting, controlled lowering and secure load holding with maximum efficiency.
Key Features
- Arbpro LD2 modular lifting and lowering rigging system
- Includes Harken 2-speed winch with 44:1 and 13.5:1 ratios
- Large 150mm aluminium friction bollard for controlled lowering
- Spinlock XCS rope clutch for secure load holding under tension
- Winch and bollard can be quickly interchanged
- Robust anodized aluminium frame with stainless steel bolts
- Weld-free frame construction for strength and corrosion resistance
- Rubber feet help provide secure, bark-friendly mounting
- Supplied with three heavy-duty ratchet straps
- Large bollard contact surface helps reduce rope glazing and wear
- CE-compliant according to Machinery Directive 2006/42/EC
Modular Rigging Control
The Arbpro LD2 is designed to give professional rigging teams maximum flexibility. The Harken winch and friction bollard can be swapped depending on whether the task requires lifting, lowering or a controlled transition between both.
Powerful Harken 2-Speed Winch
The Harken 2-speed winch provides mechanical advantage for heavy lifting operations, with 44:1 and 13.5:1 ratios to help move demanding loads safely and with minimal effort.
Large 150mm Friction Bollard
The 150mm bollard provides a wide rope contact surface for smoother lowering control. Its heat-conductive aluminium construction helps reduce rope glazing and wear during demanding lowering operations.
Spinlock XCS Rope Clutch
The separately mountable Spinlock XCS rope clutch allows secure load holding, even under tension. This is especially useful when transitioning between the winch and bollard or temporarily securing the load during a complex rigging operation.
Tree-Friendly Mounting
The anodized aluminium frame includes rubber feet to help protect the stem while maintaining secure positioning. Three heavy-duty ratchet straps are supplied for stable attachment during professional tree rigging work.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | Arbpro LD2 Rigging System |
| System Type | Modular lifting and lowering rigging system |
| Frame Material | Anodized aluminium with stainless steel bolts |
| Frame Weight | 16.5kg |
| Winch | Harken 2-speed winch |
| Winch Ratios | 44:1 and 13.5:1 |
| Winch Weight | 9.5kg |
| Friction Bollard | 150mm diameter aluminium bollard |
| Bollard Weight | 5kg |
| Rope Clutch | Spinlock XCS |
| Rope Clutch Breaking Load | 7500kg |
| Safe Working Load - Winch | 1200kg |
| Safe Working Load - Bollard | 1500kg |
| Rope Compatibility - Winch & Clutch | 12–16mm |
| Rope Compatibility - Bollard | 12–19mm |
| Supplied Mounting | Three heavy-duty ratchet straps |
| Compliance | CE-compliant according to Machinery Directive 2006/42/EC |
Ideal For
- Professional arborists and tree surgeons
- Complex tree removals and dismantling
- Heavy-duty lifting and lowering operations
- Technical rigging with secure load holding
- Ground teams needing high control and flexibility
- Reducing rope glazing during controlled lowering
- Advanced arborist rigging systems
Explore More
Best For
The Arbpro LD2 Rigging System is best suited to professional arborists who need a high-capacity modular rigging system for heavy lifting, controlled lowering and complex tree removals.
Why Choose the Arbpro LD2 Rigging System?
With its powerful Harken 2-speed winch, large 150mm friction bollard, Spinlock XCS rope clutch, anodized aluminium frame and tree-friendly mounting system, the Arbpro LD2 delivers exceptional control, flexibility and efficiency for demanding arborist rigging work.
