SMB1000 Replacement Ratchet Strap
SKU: Stein | SS-SMB1000-RATCHET
- Regular price
- £25.50 Ex VAT
- £30.60 Inc VAT
- RRP: £30.00 Ex VAT
- Sale price
- £25.50 £25.50 Ex VAT
- Regular price
-
- £30.60 £30.60 Inc VAT
- Was £30.00 Ex VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

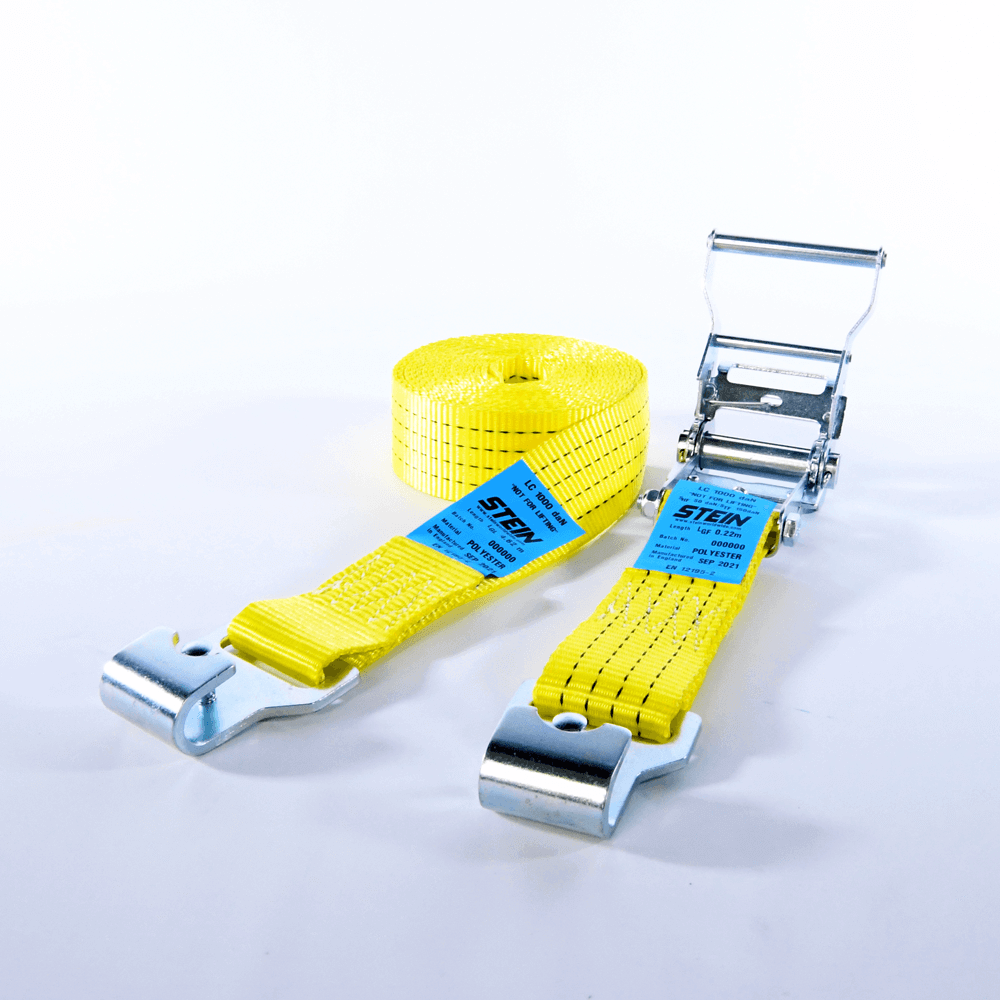

STEIN Replacement Ratchet Strap Set for SMB1000 Lowering Bollard
The STEIN Replacement Ratchet Strap Set for the SMB1000 Lowering Bollard is a heavy-duty replacement mounting strap system designed to securely fasten your lowering bollard to the tree during rigging operations. Built for strength, durability and dependable field performance, this strap set is an essential replacement part for maintaining safe and effective use of your STEIN SMB1000 Lowering Bollard.
Designed specifically for arborist rigging applications, it combines high-strength polyester webbing, carbon steel hooks with keeper pins and a compliant ratchet buckle system for reliable mounting and secure tensioning.
Purpose-Built for the STEIN SMB1000 Lowering Bollard

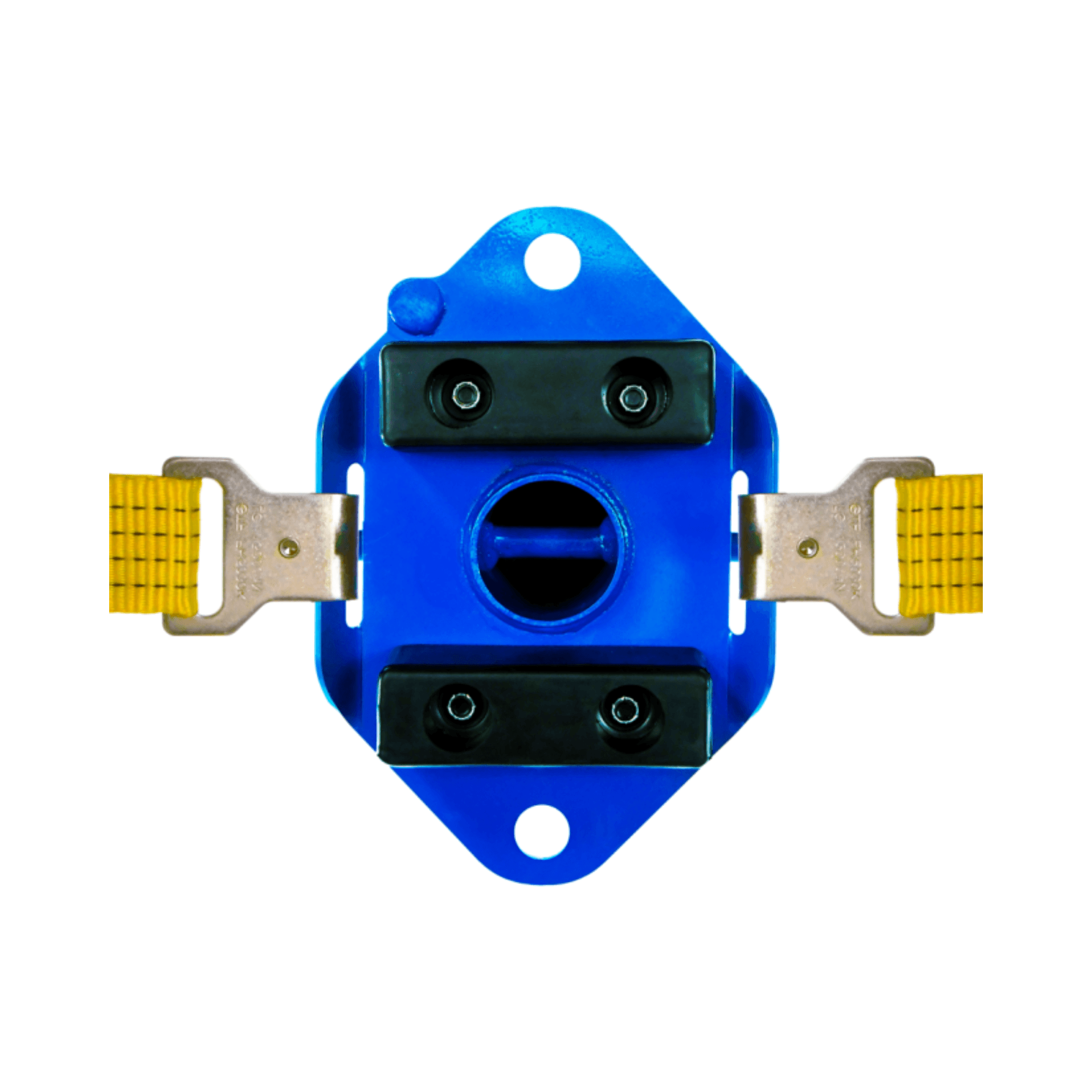

This replacement strap set is designed to fit the STEIN SMB1000 Lowering Bollard, allowing the device to be mounted securely to the tree during use.
The complete system provides a combined usable length of approximately 5.0m when used with the ratchet handle, and can be fitted to trees with a diameter of up to 145cm.

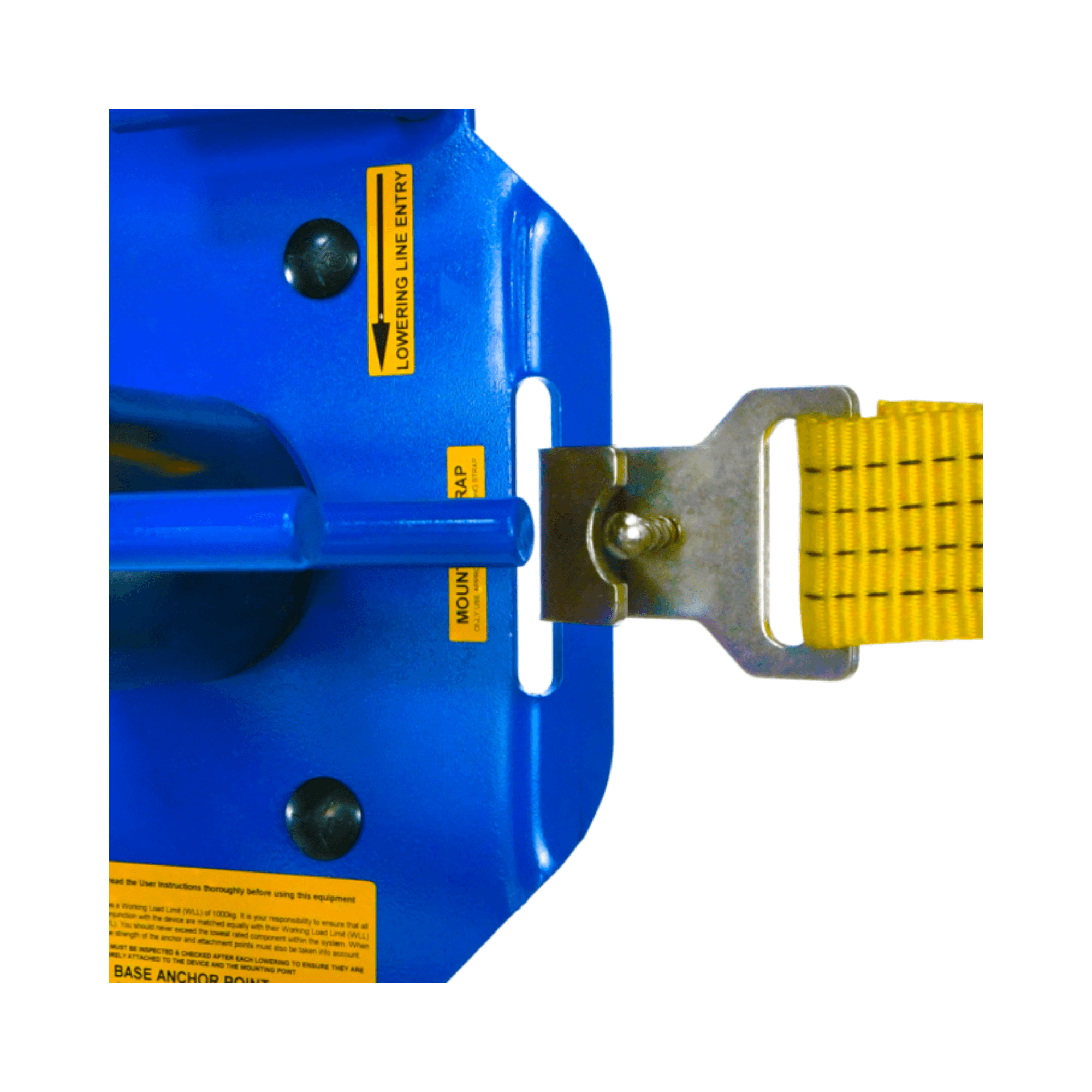

Secure Carbon Steel Hook Attachment
The strap set is fitted with carbon steel hooks featuring keeper pins, which help prevent the mounting hooks from detaching from the device when not under tension.
This improves handling during installation and helps keep the system better controlled during setup and removal.
Heavy-Duty UV Resistant Webbing
The webbing is manufactured from high-tenacity 50mm wide polyester yarn, giving it the durability and strength needed for repeated use in demanding arborist environments.
Key benefits include:
- UV resistance for improved durability outdoors
- 6000kg breaking strength
- Strong and stable mounting performance for lowering device attachment
Compliant Ratchet System with Full Traceability
The ratchet mechanism meets the requirements of European Load Restraint Legislation Standard EN12195-2:2001, which requires the buckle to have a lashing capacity (LC) of 1000daN.
This capacity is stamped directly onto the ratchet, along with a label for full traceability.
The buckle also displays a breaking strength (BS) of 2000kg, indicating the maximum load that can be applied to the buckle before failure.
Key Features
- Replacement ratchet strap set for the STEIN SMB1000 Lowering Bollard
- 4.65m strap length / approx. 5.0m combined with ratchet handle
- Fits trees up to 145cm diameter
- Fitted with carbon steel hooks
- Keeper pins help prevent hook detachment
- Made from 50mm high-tenacity polyester webbing
- UV resistant for outdoor use
- 6000kg webbing breaking strength
- Ratchet compliant with EN12195-2:2001
- 1000daN lashing capacity stamped on ratchet
- 2000kg buckle breaking strength
- Traceable and built for dependable rigging equipment mounting
Technical Specifications
| Product Type | Replacement Ratchet Strap Set |
|---|---|
| Compatibility | STEIN SMB1000 Lowering Bollard |
| Strap Length | 4.65m |
| Combined Length with Ratchet Handle | Approx. 5.0m |
| Maximum Tree Diameter | 145cm |
| Webbing Width | 50mm |
| Webbing Material | High-Tenacity Polyester Yarn |
| Webbing Breaking Strength | 6000kg |
| Hook Material | Carbon Steel |
| Ratchet Standard | EN12195-2:2001 |
| Lashing Capacity (LC) | 1000daN |
| Buckle Breaking Strength (BS) | 2000kg |
Keep Your Lowering Bollard Securely Mounted
The STEIN Replacement Ratchet Strap Set is a dependable replacement part for keeping your SMB1000 securely mounted and ready for rigging work. Strong, traceable and built for arborist use, it’s a practical maintenance essential for professional lowering setups.
Frequently Asked Questions
What is this strap set for?
It is a replacement mounting strap system for the STEIN SMB1000 Lowering Bollard.
What tree diameter can it fit?
This strap system can fit trees up to 145cm in diameter.
Is the webbing UV resistant?
Yes. The strap is made from UV resistant high-tenacity polyester webbing.
What standard does the ratchet comply with?
The ratchet complies with EN12195-2:2001.
STEIN Replacement Ratchet Strap Set for SMB1000 Lowering Bollard
The STEIN Replacement Ratchet Strap Set for the SMB1000 Lowering Bollard is a heavy-duty replacement mounting strap system designed to securely fasten your lowering bollard to the tree during rigging operations. Built for strength, durability and dependable field performance, this strap set is an essential replacement part for maintaining safe and effective use of your STEIN SMB1000 Lowering Bollard.
Designed specifically for arborist rigging applications, it combines high-strength polyester webbing, carbon steel hooks with keeper pins and a compliant ratchet buckle system for reliable mounting and secure tensioning.
Purpose-Built for the STEIN SMB1000 Lowering Bollard
This replacement strap set is designed to fit the STEIN SMB1000 Lowering Bollard, allowing the device to be mounted securely to the tree during use.
The complete system provides a combined usable length of approximately 5.0m when used with the ratchet handle, and can be fitted to trees with a diameter of up to 145cm.
Secure Carbon Steel Hook Attachment
The strap set is fitted with carbon steel hooks featuring keeper pins, which help prevent the mounting hooks from detaching from the device when not under tension.
This improves handling during installation and helps keep the system better controlled during setup and removal.
Heavy-Duty UV Resistant Webbing
The webbing is manufactured from high-tenacity 50mm wide polyester yarn, giving it the durability and strength needed for repeated use in demanding arborist environments.
Key benefits include:
- UV resistance for improved durability outdoors
- 6000kg breaking strength
- Strong and stable mounting performance for lowering device attachment
Compliant Ratchet System with Full Traceability
The ratchet mechanism meets the requirements of European Load Restraint Legislation Standard EN12195-2:2001, which requires the buckle to have a lashing capacity (LC) of 1000daN.
This capacity is stamped directly onto the ratchet, along with a label for full traceability.
The buckle also displays a breaking strength (BS) of 2000kg, indicating the maximum load that can be applied to the buckle before failure.
Key Features
- Replacement ratchet strap set for the STEIN SMB1000 Lowering Bollard
- 4.65m strap length / approx. 5.0m combined with ratchet handle
- Fits trees up to 145cm diameter
- Fitted with carbon steel hooks
- Keeper pins help prevent hook detachment
- Made from 50mm high-tenacity polyester webbing
- UV resistant for outdoor use
- 6000kg webbing breaking strength
- Ratchet compliant with EN12195-2:2001
- 1000daN lashing capacity stamped on ratchet
- 2000kg buckle breaking strength
- Traceable and built for dependable rigging equipment mounting
Technical Specifications
| Product Type | Replacement Ratchet Strap Set |
|---|---|
| Compatibility | STEIN SMB1000 Lowering Bollard |
| Strap Length | 4.65m |
| Combined Length with Ratchet Handle | Approx. 5.0m |
| Maximum Tree Diameter | 145cm |
| Webbing Width | 50mm |
| Webbing Material | High-Tenacity Polyester Yarn |
| Webbing Breaking Strength | 6000kg |
| Hook Material | Carbon Steel |
| Ratchet Standard | EN12195-2:2001 |
| Lashing Capacity (LC) | 1000daN |
| Buckle Breaking Strength (BS) | 2000kg |
Keep Your Lowering Bollard Securely Mounted
The STEIN Replacement Ratchet Strap Set is a dependable replacement part for keeping your SMB1000 securely mounted and ready for rigging work. Strong, traceable and built for arborist use, it’s a practical maintenance essential for professional lowering setups.
Frequently Asked Questions
What is this strap set for?
It is a replacement mounting strap system for the STEIN SMB1000 Lowering Bollard.
What tree diameter can it fit?
This strap system can fit trees up to 145cm in diameter.
Is the webbing UV resistant?
Yes. The strap is made from UV resistant high-tenacity polyester webbing.
What standard does the ratchet comply with?
The ratchet complies with EN12195-2:2001.
