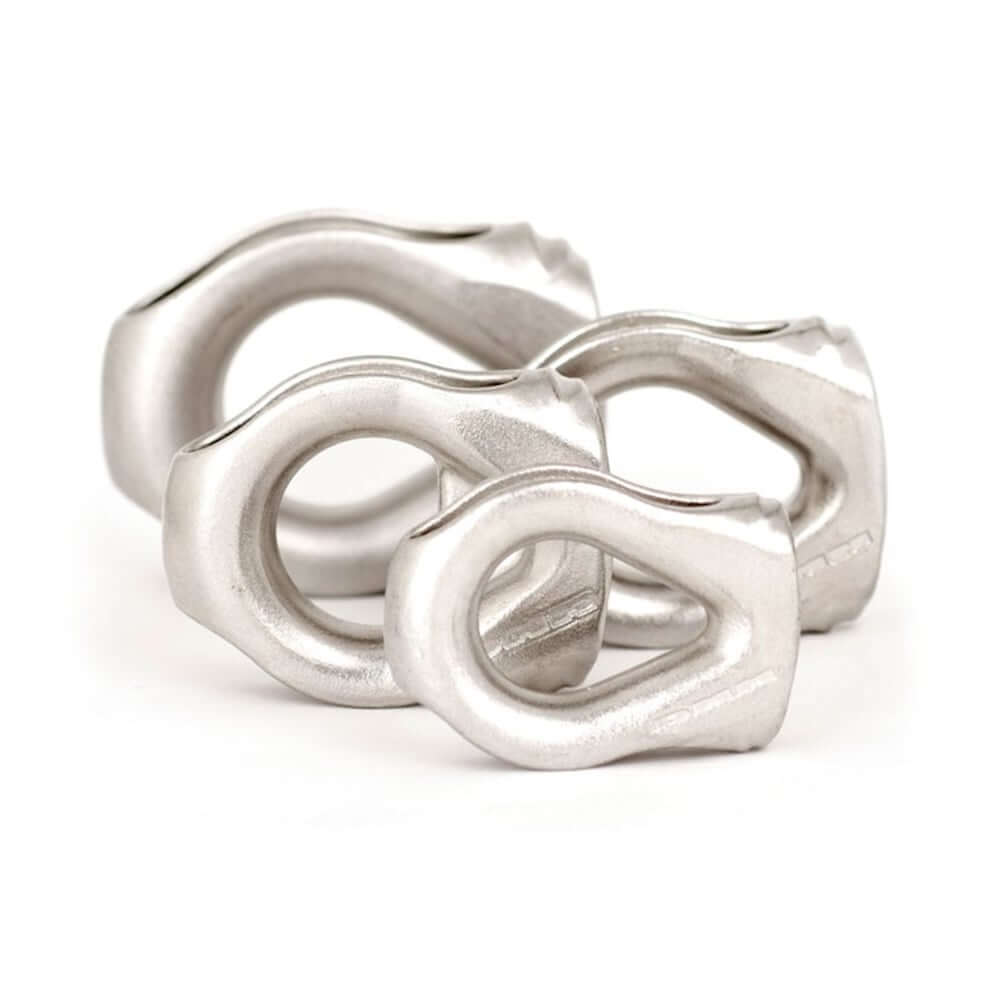

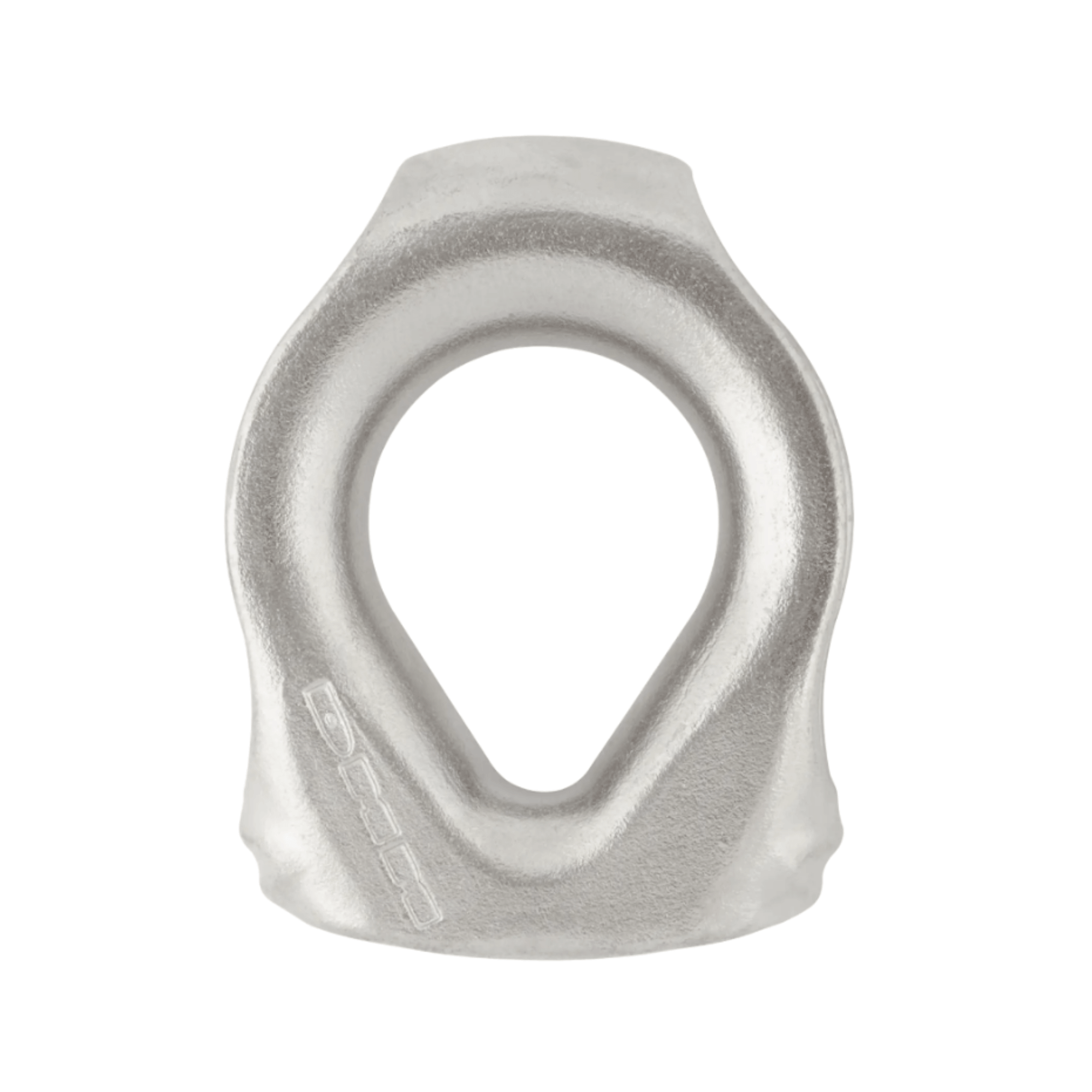

Thimble Anchor Components 8mm

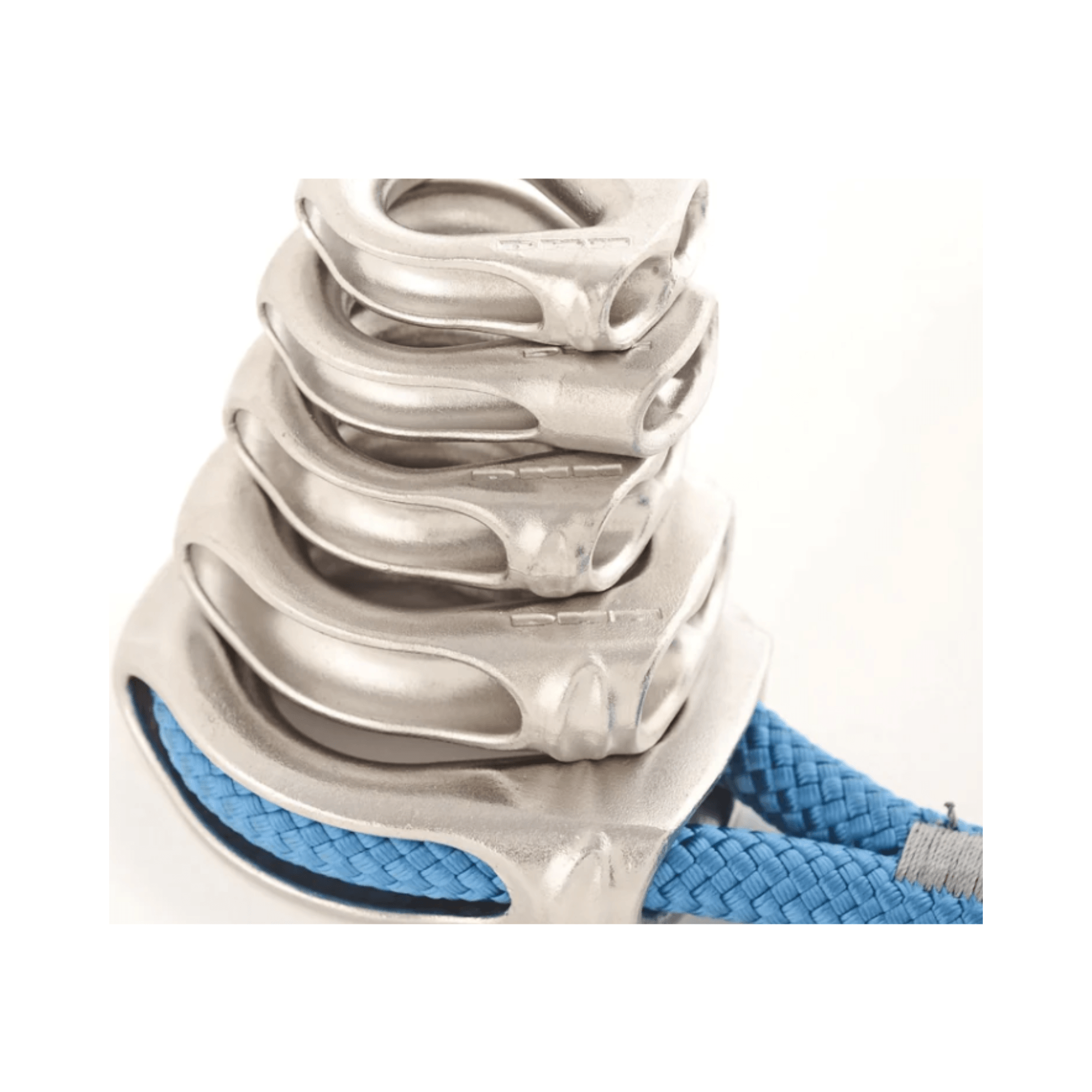

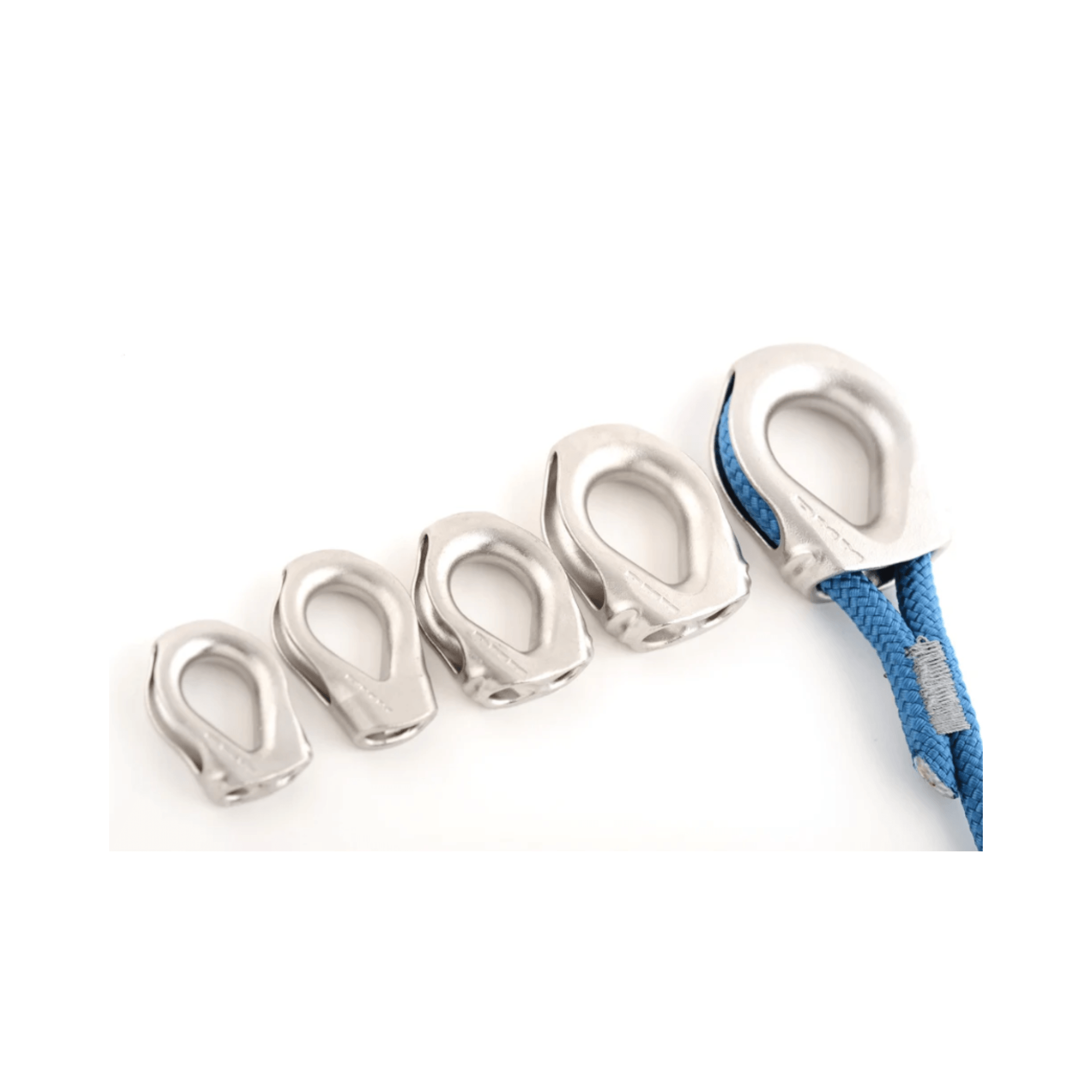

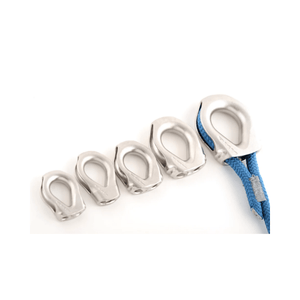

The DMM thimble range has been developed to be incorporated into any system requiring a high strength, low friction, corrosion resistant termination. Equally at home in use with metal or textile cordage, our thimbles allow for equalising of loads across both strands as well as protecting the cordage from abrasion and overly tight bend radii damage.

Super smooth internal finishing of the main eye enables easy rigging of compact and simple mechanical advantage systems and promotes free running on tension lines, etc. The open sided rope channels allow for easy inspection of cordage. Investment cast in stainless steel, hand finished and electro polished.

Specification

                               Strength       Dimensions            Weight

Thimble 8mm             40kN            60 x 44 x 17mm     86g

Thimble 8mm (tab)     40kN            60 x 44 x 17mm     92g

Thimble 10mm           40kN            71 x 53 x 18mm     136g
