Flame Rigging Pulley 16mm
SKU: ISC | IS-RP056
- Regular price
- £97.73 Ex VAT
- £117.28 Inc VAT
- RRP: £114.97 Ex VAT
- Sale price
- £97.73 £97.73 Ex VAT
- Regular price
-
- £117.28 £117.28 Inc VAT
- Was £114.97 Ex VAT
Free Standard UK Delivery Over £75 +VAT
Easy Returns
Couldn't load pickup availability
Product information & specifications

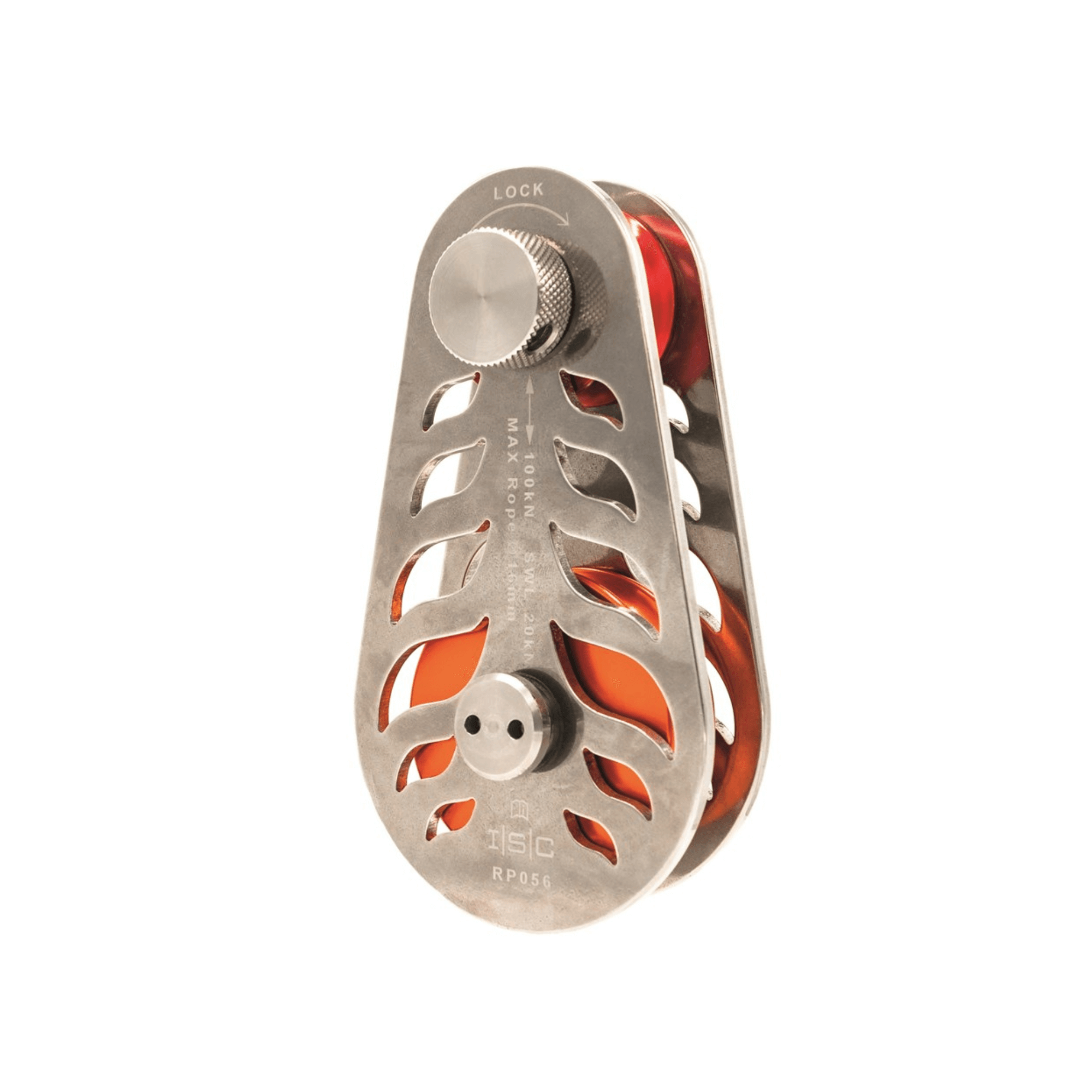

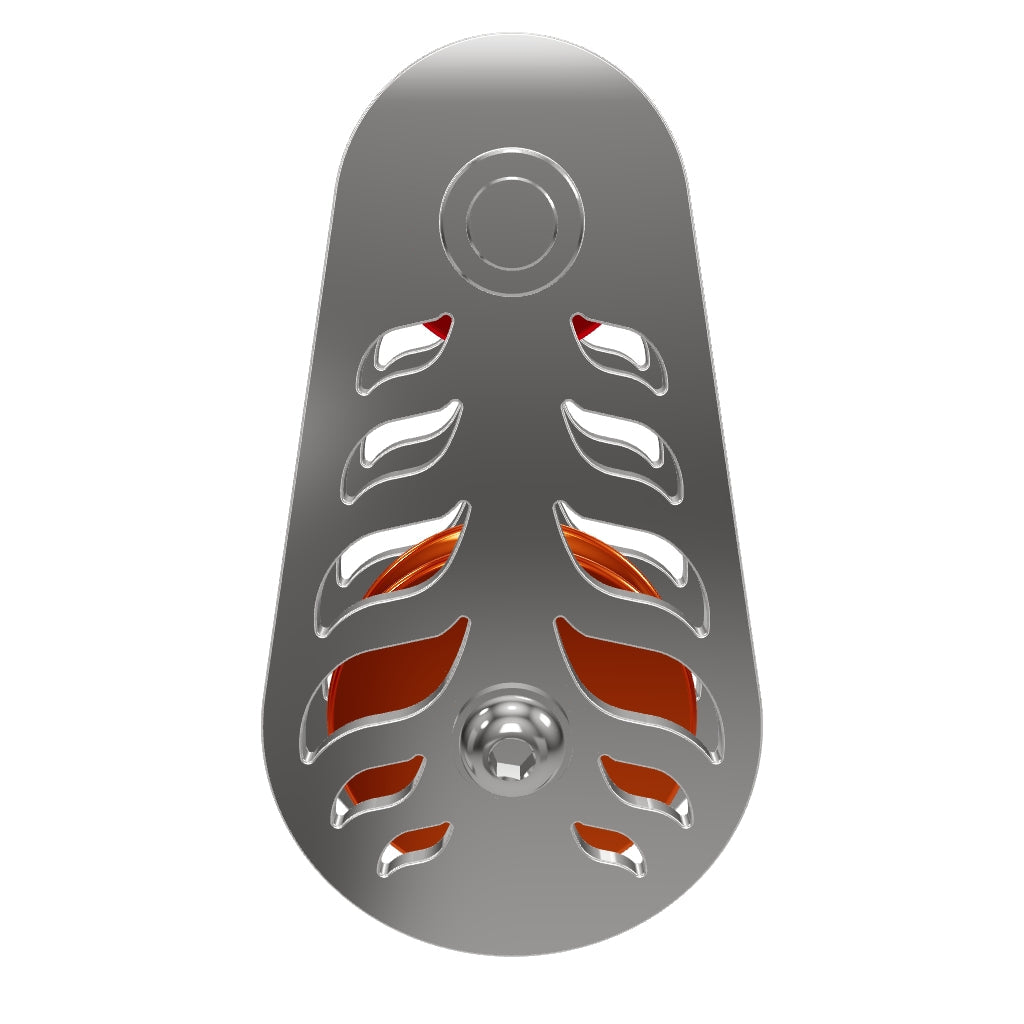

ISC Flame Rigging Pulley RP056 – for 16 mm (5/8″) Rope
Designed for UK arborists, tree-rigging professionals and rope-access technicians requiring a high-performance reduction pulley for 16 mm rope systems. The ISC Flame RN056 rigging pulley handles up to 16 mm (5/8″) rope diameter and is built for heavy-duty lowering or hauling systems where reliability and strength are key. With anodised aluminium wheels, stainless-steel side plates and a working load limit (WLL) of 2 000 kg (4 400 lbs), it offers professional-grade performance.
Key Features & Benefits
- Compatibility for 16 mm rope:
- High working load limit:
- Robust construction:
- Minimum breaking strength (MBS):
- Colour-coded side plates and wheels:
- Serial-numbered for traceability:
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RP056 Flame Rigging Pulley – for 16 mm (5/8″) rope |
| Rope Diameter | Max 16 mm (5/8″) working line; topping strop up to 25 mm (1″) |
| Working Load Limit (WLL) | 2 000 kg (4 400 lbs) |
| Minimum Breaking Strength (MBS) | 100 kN (≈10 200 kgf) (some sources cite 77 kN) |
| Wheel Material | Aluminium (anodised) |
| Body / Side Plates Material | Stainless steel |
| Weight | Approx. 1 638 g (≈1.64 kg) |
| Dimensions | 182 × 99 × 57 mm approx. |
| Standards / Approval | CE / UKCA marked |
Why Choose the RP056 Flame?
For professionals working in the UK’s arboriculture and tree-rigging sectors, the RP056 Flame offers a high-strength, heavy-duty pulley designed for 16 mm systems. Whether you’re lowering large sections, hauling in heavy loads or setting up complex high-reach rigging, this pulley brings robust design, traceability and professional capability into your kit.
Technical Information
Rope diameter range (mm)Max 16mm (5/8") Working Line Max 25mm (1") Topping Strop
(WLL) Working Load Limit (kg)2000
(WLL) Working Load Limit (lbs)4400
Pulley wheel colourOrange
Anchor wheel colourRed
Wheel materialAluminium
FinishAnodised
Body finishPolished
ColourNatural
Weight (grams)1638
ISC Flame Rigging Pulley RP056 – for 16 mm (5/8″) Rope
Designed for UK arborists, tree-rigging professionals and rope-access technicians requiring a high-performance reduction pulley for 16 mm rope systems. The ISC Flame RN056 rigging pulley handles up to 16 mm (5/8″) rope diameter and is built for heavy-duty lowering or hauling systems where reliability and strength are key. With anodised aluminium wheels, stainless-steel side plates and a working load limit (WLL) of 2 000 kg (4 400 lbs), it offers professional-grade performance.
Key Features & Benefits
- Compatibility for 16 mm rope:
- High working load limit:
- Robust construction:
- Minimum breaking strength (MBS):
- Colour-coded side plates and wheels:
- Serial-numbered for traceability:
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RP056 Flame Rigging Pulley – for 16 mm (5/8″) rope |
| Rope Diameter | Max 16 mm (5/8″) working line; topping strop up to 25 mm (1″) |
| Working Load Limit (WLL) | 2 000 kg (4 400 lbs) |
| Minimum Breaking Strength (MBS) | 100 kN (≈10 200 kgf) (some sources cite 77 kN) |
| Wheel Material | Aluminium (anodised) |
| Body / Side Plates Material | Stainless steel |
| Weight | Approx. 1 638 g (≈1.64 kg) |
| Dimensions | 182 × 99 × 57 mm approx. |
| Standards / Approval | CE / UKCA marked |
Why Choose the RP056 Flame?
For professionals working in the UK’s arboriculture and tree-rigging sectors, the RP056 Flame offers a high-strength, heavy-duty pulley designed for 16 mm systems. Whether you’re lowering large sections, hauling in heavy loads or setting up complex high-reach rigging, this pulley brings robust design, traceability and professional capability into your kit.
Technical Information
Rope diameter range (mm)Max 16mm (5/8") Working Line Max 25mm (1") Topping Strop
(WLL) Working Load Limit (kg)2000
(WLL) Working Load Limit (lbs)4400
Pulley wheel colourOrange
Anchor wheel colourRed
Wheel materialAluminium
FinishAnodised
Body finishPolished
ColourNatural
Weight (grams)1638
