LD750 Lowering Device
SKU: Stein | SS-24LD0750
- Regular price
- £131.75 Ex VAT
- £158.10 Inc VAT
- RRP: £155.00 Ex VAT
- Sale price
- £131.75 £131.75 Ex VAT
- Regular price
-
- £158.10 £158.10 Inc VAT
- Was £155.00 Ex VAT
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

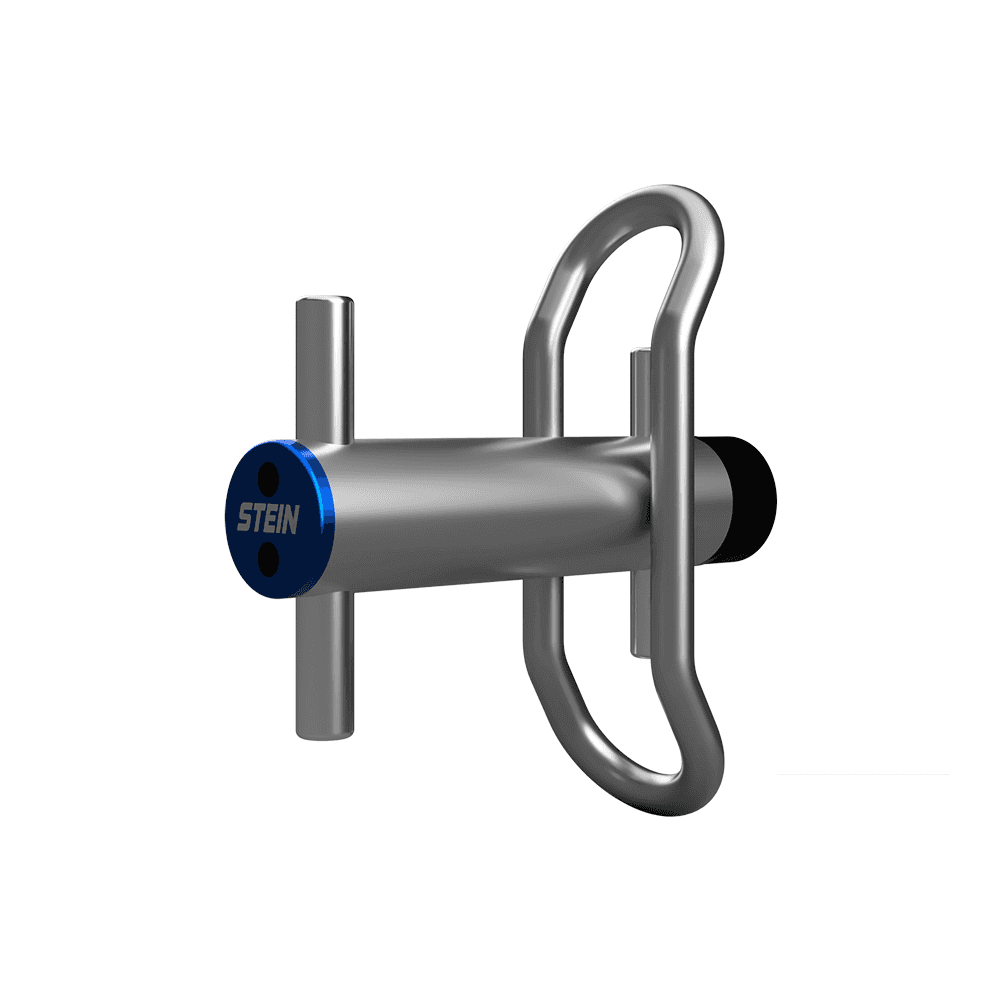

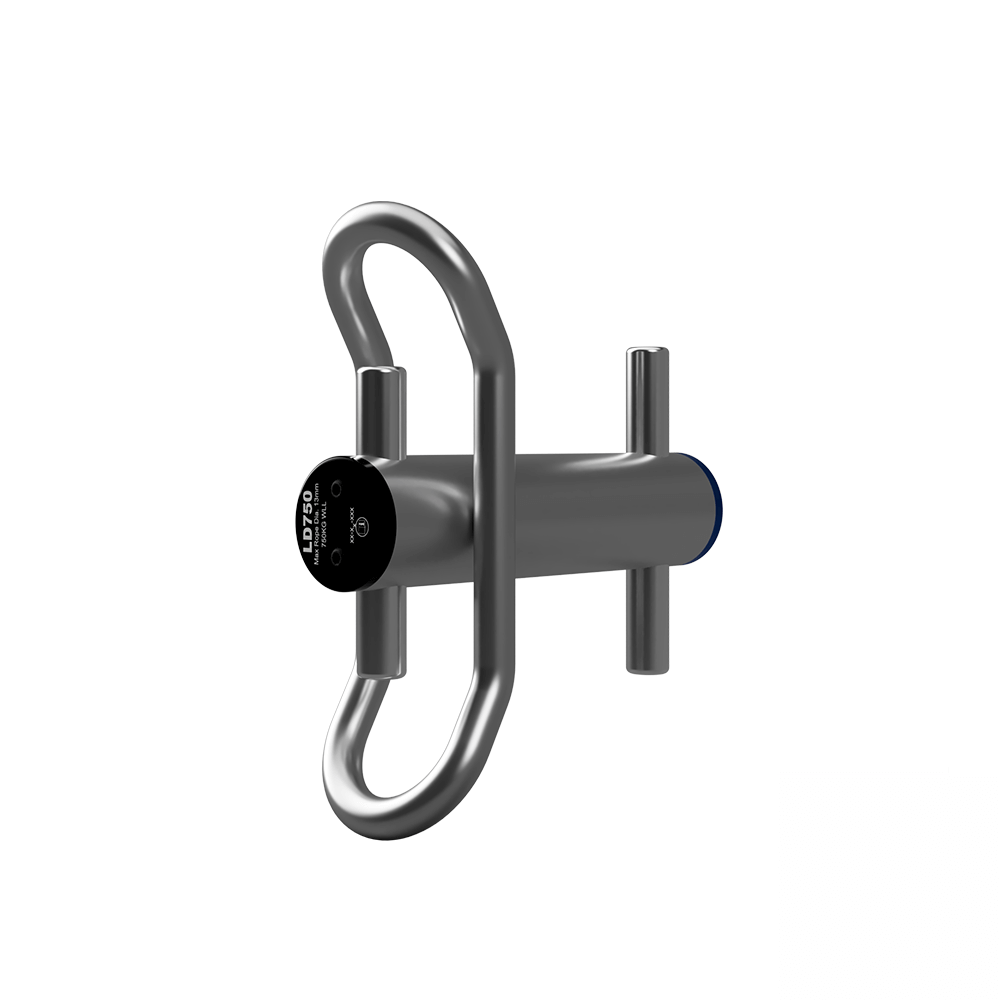

STEIN LD Floating Friction Device
The STEIN LD Floating Friction Device is part of the all-new Invert-A-Wrap Range — a practical, cost-effective rope friction device designed for the controlled lowering of timber and other rigged objects from height. Built for arborist rigging applications, it offers a simple, user-friendly design that helps deliver smooth, controlled friction management during dismantling and lowering operations.
Available in three sizes, the LD Floating Friction Device is suited to a range of rigging setups and rope diameters, making it a versatile option for arborists looking for a reliable lowering device with excellent usability and field practicality.

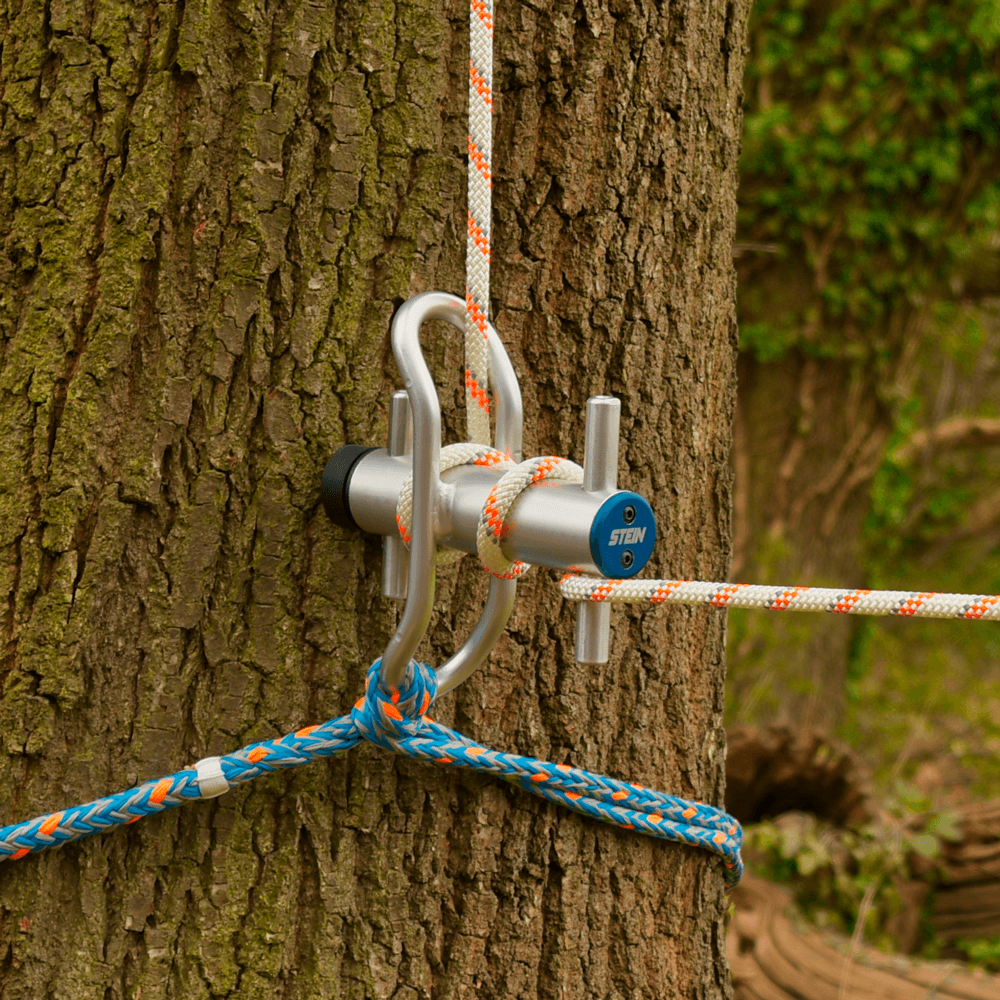

Designed for Controlled Lowering
The Invert-A-Wrap design is intended to provide dependable rope friction for lowering timber or objects from an elevated position in a safe and controlled way. Its layout allows the user to manage rigging lines efficiently while keeping the device straightforward to set up and use on site.
The device can be mounted in either orientation, giving greater flexibility depending on your rigging setup, anchor position and worksite requirements.
Compatible with the STEIN Hauler Kit
One of the key advantages of the LD Floating Friction Device is its ability to work with a STEIN Hauler Kit. This allows you to:
- Raise loads before lowering
- Assist with pre-tensioning the rigging line
This added versatility makes it a useful tool for arborists carrying out more controlled or technical rigging tasks where positioning or tension management is important.
Replaceable Fairleads for Better Rope Control
The Invert-A-Wrap is fitted with replaceable fairleads which serve two practical functions:
- Allow the rigging line to be tied off if required
- Act as redirects so the user can operate the device from a safer distance
This helps improve operational flexibility and can support safer working positions during lowering operations.

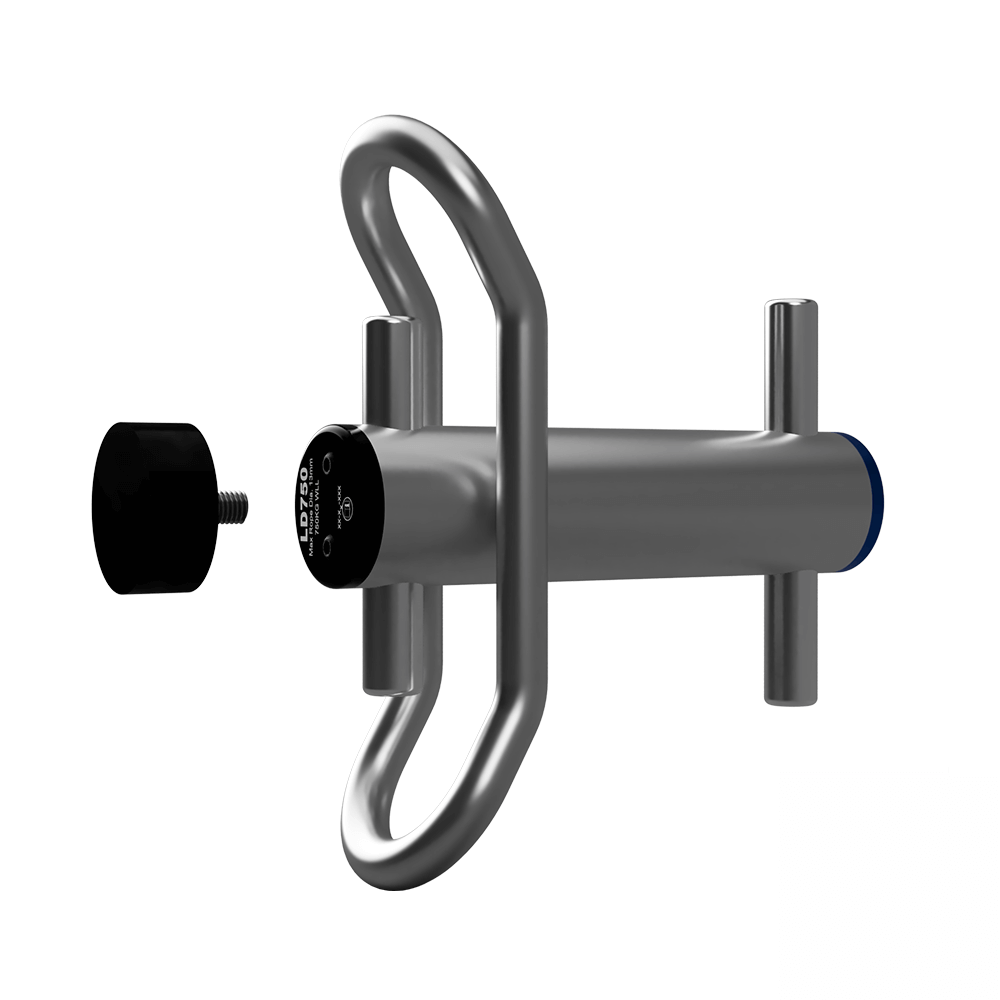

Built for Protection & Long-Term Use
For added durability and tree or structure protection, the LD Floating Friction Device includes a removable and replaceable protective rubber. This helps:
- Protect the structure the device is mounted to
- Protect the product information area
- Cover the unique serial number used for inspection traceability
This thoughtful design detail helps improve product longevity while making ongoing inspection and asset management easier.

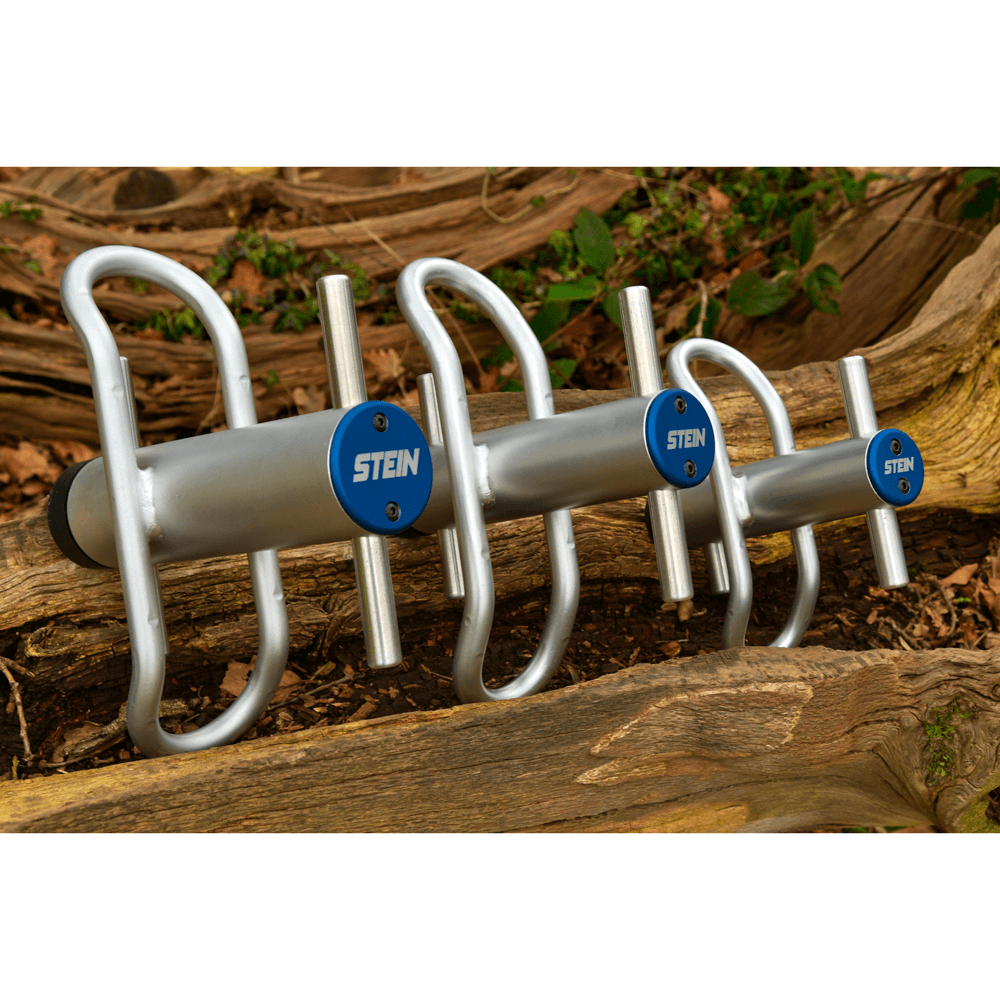

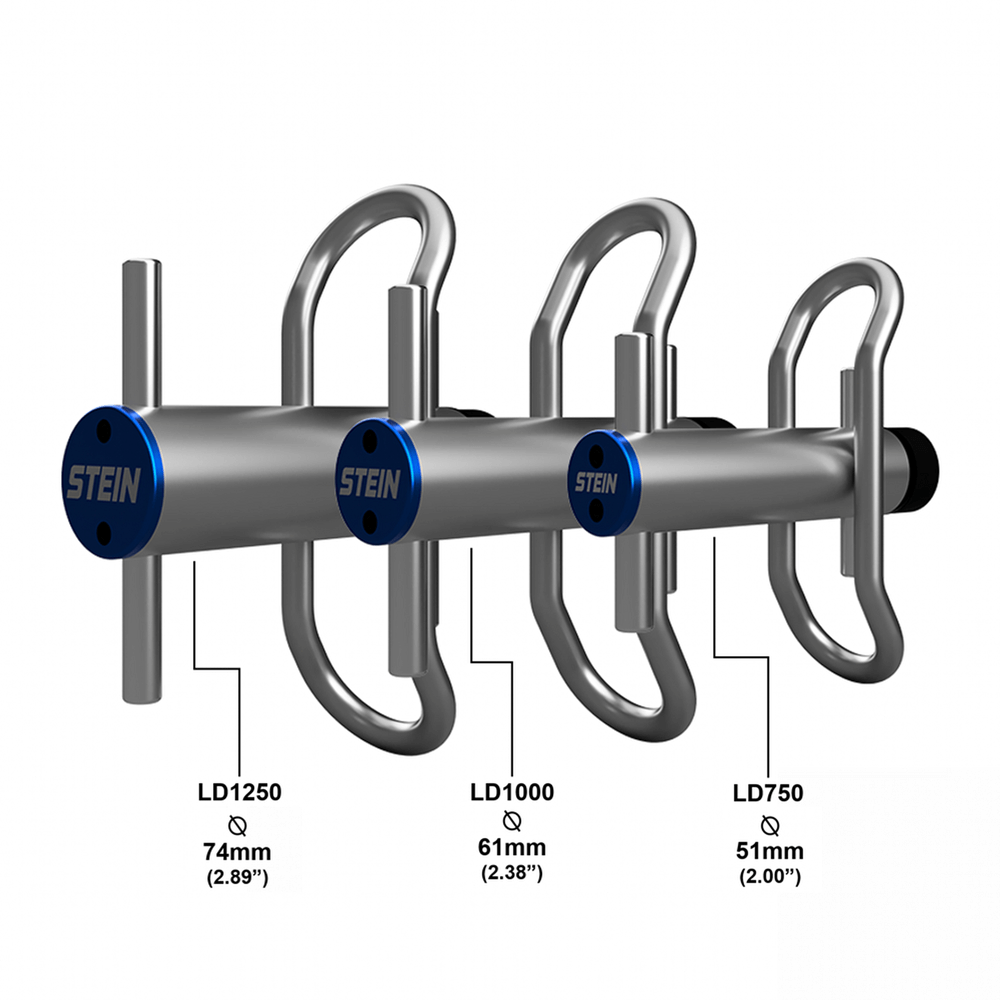

Available Sizes
| Model | Max Rope Diameter | Working Load Limit | Weight |
|---|---|---|---|
| LD750 | 13mm (1/2") | 750kg WLL (1650lbs) | 1.925kg (4.25lbs) |
| LD1000 | 14mm (9/16") | 1000kg WLL (2200lbs) | 3.300kg (7.25lbs) |
| LD1250 | 16mm (5/8") | 1250kg WLL (2755lbs) | 4.430kg (9.75lbs) |
Key Features
- Cost-effective rope friction device for arborist rigging
- Designed for the controlled lowering of timber and objects
- Part of the STEIN Invert-A-Wrap Range
- Can be mounted in either orientation
- Compatible with the STEIN Hauler Kit
- Allows for raising loads or pre-tensioning rigging lines
- Fitted with replaceable fairleads
- Fairleads allow tie-off and redirect operation
- Replaceable protective rubber helps protect mounting surfaces
- Unique serial number for inspection traceability
- Available in LD750, LD1000 and LD1250 sizes
Technical Specifications
| Product Type | Floating Friction Device / Lowering Device |
|---|---|
| Range | STEIN Invert-A-Wrap |
| Application | Timber & Object Lowering / Arborist Rigging |
| Mounting Orientation | Reversible / Either Orientation |
| Additional Compatibility | STEIN Hauler Kit |
| Fairleads | Replaceable |
| Protection Feature | Replaceable Protective Rubber |
| Traceability | Unique Serial Number |
Reliable Rigging Control for Arborists
The STEIN LD Floating Friction Device is built for arborists who want dependable friction control, flexible setup options and practical rigging performance without unnecessary complexity. Whether you're carrying out straightforward lowering or more controlled pre-tensioned rigging, it’s a capable and user-friendly addition to your rigging kit.
Frequently Asked Questions
What is the STEIN LD Floating Friction Device used for?
It is used for the controlled lowering of timber and rigged objects during arborist rigging operations.
Can it be mounted in different orientations?
Yes. The device can be mounted in either orientation for greater setup flexibility.
What do the fairleads do?
The fairleads allow the rope to be tied off if needed and can also act as redirects for safer operation from a distance.
What sizes is it available in?
It is available in LD750, LD1000 and LD1250 to suit different rope diameters and rigging requirements.
Climbing Hardware
| Weight | 2kg |
|---|---|
| Working Load Limit (WLL) | 750kg |
| Rope Size | >13mm |
STEIN LD Floating Friction Device
The STEIN LD Floating Friction Device is part of the all-new Invert-A-Wrap Range — a practical, cost-effective rope friction device designed for the controlled lowering of timber and other rigged objects from height. Built for arborist rigging applications, it offers a simple, user-friendly design that helps deliver smooth, controlled friction management during dismantling and lowering operations.
Available in three sizes, the LD Floating Friction Device is suited to a range of rigging setups and rope diameters, making it a versatile option for arborists looking for a reliable lowering device with excellent usability and field practicality.
Designed for Controlled Lowering
The Invert-A-Wrap design is intended to provide dependable rope friction for lowering timber or objects from an elevated position in a safe and controlled way. Its layout allows the user to manage rigging lines efficiently while keeping the device straightforward to set up and use on site.
The device can be mounted in either orientation, giving greater flexibility depending on your rigging setup, anchor position and worksite requirements.
Compatible with the STEIN Hauler Kit
One of the key advantages of the LD Floating Friction Device is its ability to work with a STEIN Hauler Kit. This allows you to:
- Raise loads before lowering
- Assist with pre-tensioning the rigging line
This added versatility makes it a useful tool for arborists carrying out more controlled or technical rigging tasks where positioning or tension management is important.
Replaceable Fairleads for Better Rope Control
The Invert-A-Wrap is fitted with replaceable fairleads which serve two practical functions:
- Allow the rigging line to be tied off if required
- Act as redirects so the user can operate the device from a safer distance
This helps improve operational flexibility and can support safer working positions during lowering operations.
Built for Protection & Long-Term Use
For added durability and tree or structure protection, the LD Floating Friction Device includes a removable and replaceable protective rubber. This helps:
- Protect the structure the device is mounted to
- Protect the product information area
- Cover the unique serial number used for inspection traceability
This thoughtful design detail helps improve product longevity while making ongoing inspection and asset management easier.
Available Sizes
| Model | Max Rope Diameter | Working Load Limit | Weight |
|---|---|---|---|
| LD750 | 13mm (1/2") | 750kg WLL (1650lbs) | 1.925kg (4.25lbs) |
| LD1000 | 14mm (9/16") | 1000kg WLL (2200lbs) | 3.300kg (7.25lbs) |
| LD1250 | 16mm (5/8") | 1250kg WLL (2755lbs) | 4.430kg (9.75lbs) |
Key Features
- Cost-effective rope friction device for arborist rigging
- Designed for the controlled lowering of timber and objects
- Part of the STEIN Invert-A-Wrap Range
- Can be mounted in either orientation
- Compatible with the STEIN Hauler Kit
- Allows for raising loads or pre-tensioning rigging lines
- Fitted with replaceable fairleads
- Fairleads allow tie-off and redirect operation
- Replaceable protective rubber helps protect mounting surfaces
- Unique serial number for inspection traceability
- Available in LD750, LD1000 and LD1250 sizes
Technical Specifications
| Product Type | Floating Friction Device / Lowering Device |
|---|---|
| Range | STEIN Invert-A-Wrap |
| Application | Timber & Object Lowering / Arborist Rigging |
| Mounting Orientation | Reversible / Either Orientation |
| Additional Compatibility | STEIN Hauler Kit |
| Fairleads | Replaceable |
| Protection Feature | Replaceable Protective Rubber |
| Traceability | Unique Serial Number |
Reliable Rigging Control for Arborists
The STEIN LD Floating Friction Device is built for arborists who want dependable friction control, flexible setup options and practical rigging performance without unnecessary complexity. Whether you're carrying out straightforward lowering or more controlled pre-tensioned rigging, it’s a capable and user-friendly addition to your rigging kit.
Frequently Asked Questions
What is the STEIN LD Floating Friction Device used for?
It is used for the controlled lowering of timber and rigged objects during arborist rigging operations.
Can it be mounted in different orientations?
Yes. The device can be mounted in either orientation for greater setup flexibility.
What do the fairleads do?
The fairleads allow the rope to be tied off if needed and can also act as redirects for safer operation from a distance.
What sizes is it available in?
It is available in LD750, LD1000 and LD1250 to suit different rope diameters and rigging requirements.
Climbing Hardware
| Weight | 2kg |
|---|---|
| Working Load Limit (WLL) | 750kg |
| Rope Size | >13mm |
