Focus Swivel
SKU: DMM | DD-SW440
Key Features
- 26kN MBS, 3kN WLL, both D and Bow variants
- Retrofits onto wire strops, plates, harness bridges
- Fixed eye - clip, splice or swage as needed
- User-maintainable grease port, roller thrust bearings
- Regular price
- €76,95
- Sale price
- €76,95 Ex VAT
- Regular price
-
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications

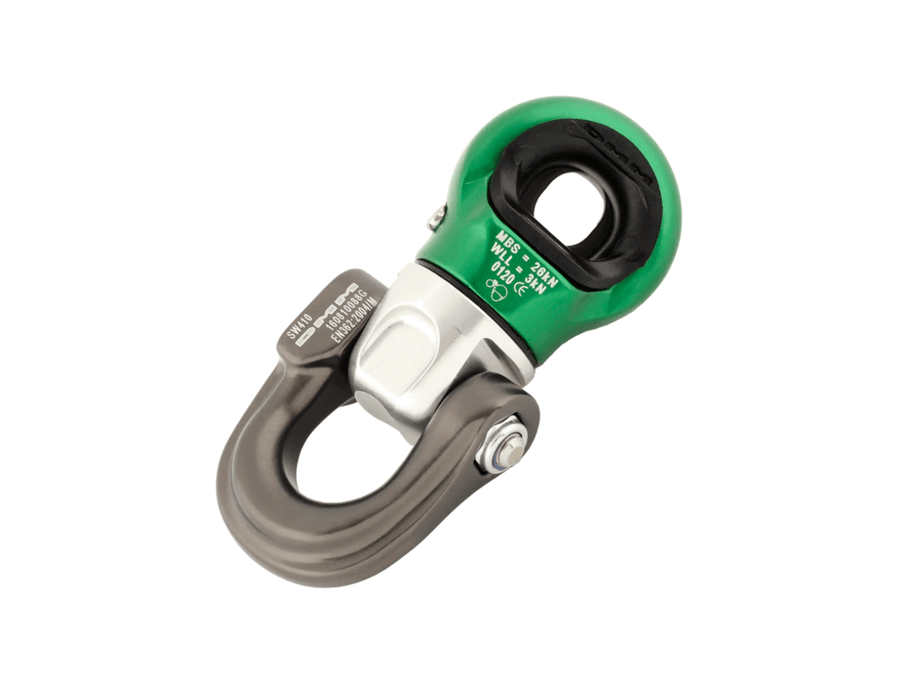

DMM Focus Swivel - D & Bow Shackle Convertors
The DMM Focus Swivel provides a space-saving, high-efficiency solution for managing torsion in climbing and rigging systems, certified with a 26kN minimum breaking strength. Designed to retrofit into the DMM Compact Swivel ecosystem, these convertors allow you to connect directly to fixed loops such as wire strops, rigging plates, harness bridges and textile anchor points.
Available in D-shackle (Focus S) and Bow-shackle (Focus L) sizes, it's in stock at Gustharts as an authorised DMM dealer, with free UK delivery on this order.
The two-way locking spindle enables secure attachment, while the fixed eye can be clipped, spliced, swaged or integrated using a Prest-in configuration aid if required. The system can be optimised for single, tidy attachment points or more complex, multi-directional loading setups.
Constructed using hot-forged aluminium shackles and CNC-machined swivel bodies, the convertors feature roller thrust bearings for smooth rotation and a user-maintainable grease port to extend bearing life. Double-locking stainless-steel axles ensure outstanding durability in professional arborist, rescue and rigging environments.
Key Features & Benefits
- Retro-fittable swivel convertors for fixed loops and anchor points

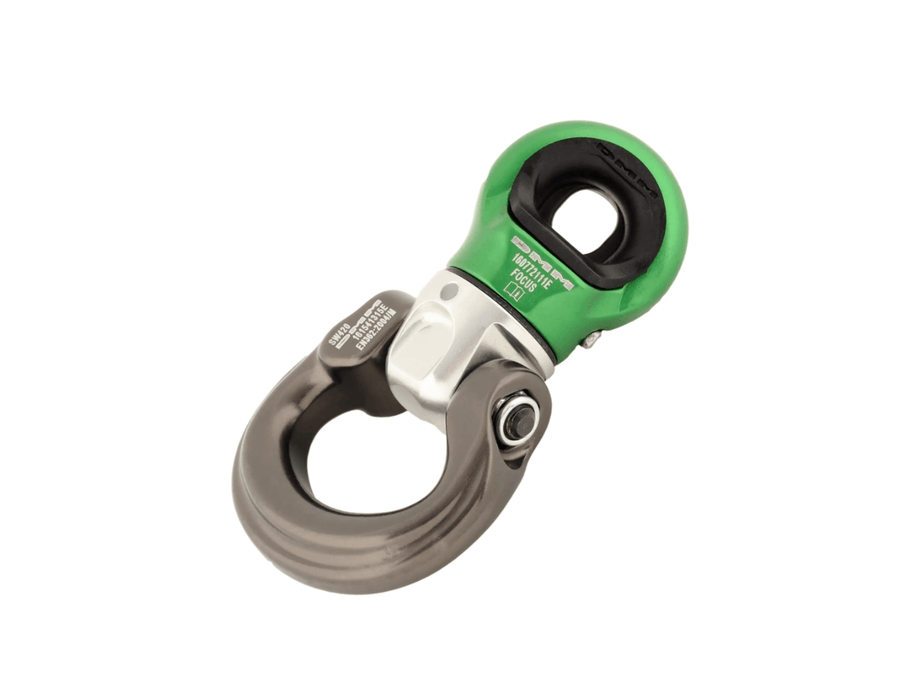

- Available in D-shackle (compact) and Bow-shackle (multi-attachment) options
- Hot-forged aluminium shackles and CNC-machined swivel bodies

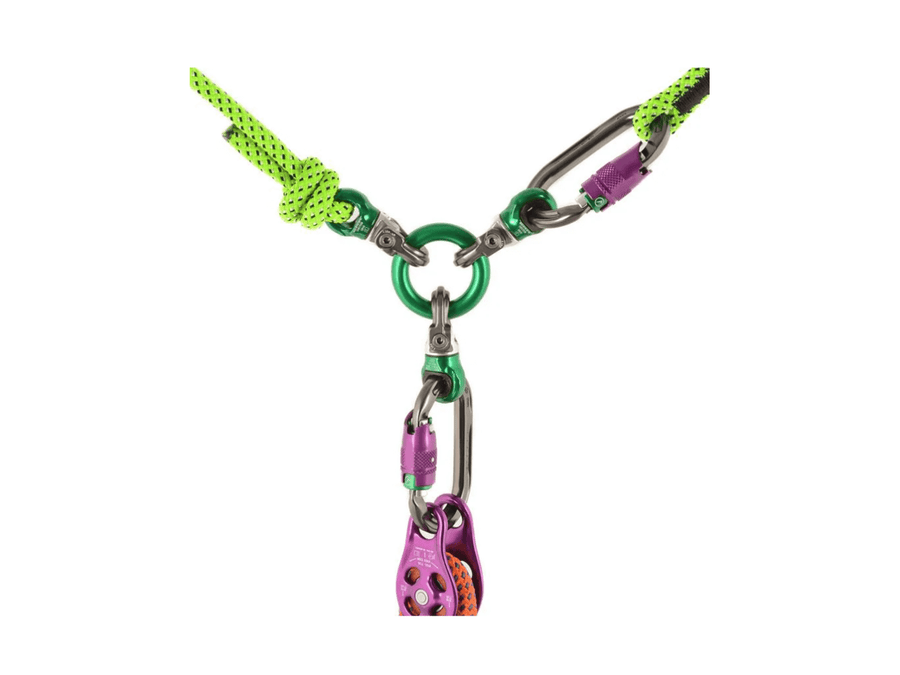

- Roller thrust bearings for smooth rotational efficiency
- User-maintainable grease port for longer bearing life

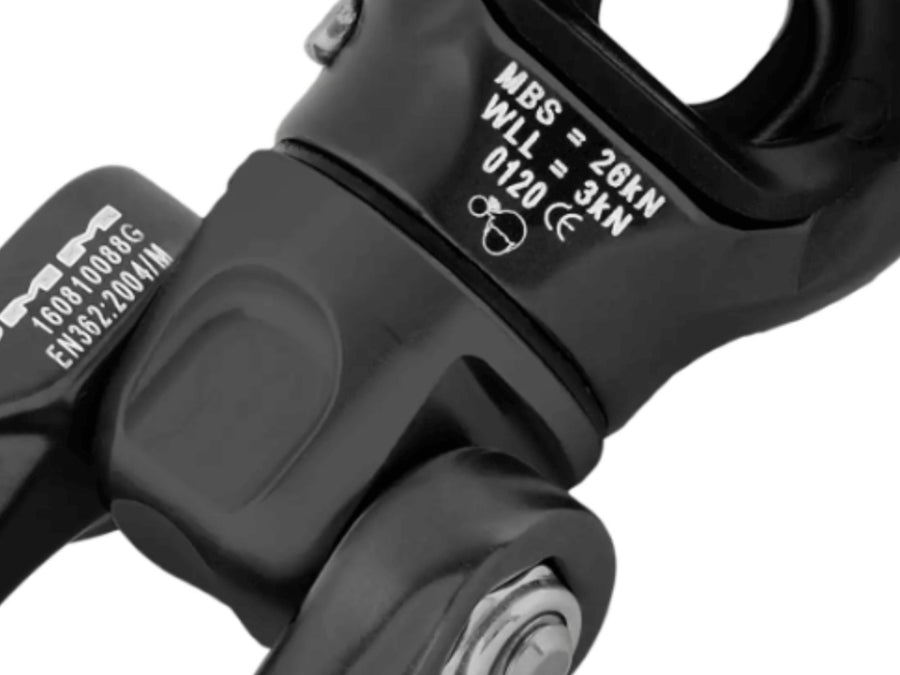

- Double-locking high-tensile stainless-steel axles
- Textile-friendly radiused attachment points
- Shackle uses 4mm and 2mm Allen keys for secure locking
Technical Details
Why Choose the DMM Focus Swivel?
A fixed eye that can be clipped, spliced or swaged into place, rather than needing a separate connector, is what sets this apart from a standard swivel — it retrofits directly onto wire strops, rigging plates and harness bridges you already have. Choose the D-shackle Focus S for a neat, single attachment point, or the Bow-shackle Focus L when a setup needs to handle loading across the shackle from multiple directions.
Also Known As
Also searched for as: DMM Focus S/L, Compact Swivel Convertor, DMM SW440/SW450, retro-fittable swivel.
FAQs
What is the difference between the D and Bow versions?
The D-shackle (Focus S) is compact and ideal for tidy single attachments, while the Bow-shackle (Focus L) offers more internal volume for complex rigging setups.
Can these be retrofitted to existing Compact Swivels?
Yes, they are designed to be interchangeable components within the Compact Swivel system.
Are they suitable for use with textile elements?
Yes, the rounded, textile-friendly eyes allow safe use with slings, webbing and rope-based connectors.
Do they rotate smoothly under load?
Yes, roller thrust bearings provide smooth, reliable rotation even when loaded.
Can the bearings be maintained?
Yes, the built-in grease port allows simple user maintenance to extend bearing longevity.
Climbing Hardware
| Min Breaking Strength | 26kN |
|---|---|
| Weight | 63g/70g |
| Material | Aluminium |
| Working Load Limit (WLL) | 3kN |
DMM Focus Swivel - D & Bow Shackle Convertors
The DMM Focus Swivel provides a space-saving, high-efficiency solution for managing torsion in climbing and rigging systems, certified with a 26kN minimum breaking strength. Designed to retrofit into the DMM Compact Swivel ecosystem, these convertors allow you to connect directly to fixed loops such as wire strops, rigging plates, harness bridges and textile anchor points.
Available in D-shackle (Focus S) and Bow-shackle (Focus L) sizes, it's in stock at Gustharts as an authorised DMM dealer, with free UK delivery on this order.
The two-way locking spindle enables secure attachment, while the fixed eye can be clipped, spliced, swaged or integrated using a Prest-in configuration aid if required. The system can be optimised for single, tidy attachment points or more complex, multi-directional loading setups.
Constructed using hot-forged aluminium shackles and CNC-machined swivel bodies, the convertors feature roller thrust bearings for smooth rotation and a user-maintainable grease port to extend bearing life. Double-locking stainless-steel axles ensure outstanding durability in professional arborist, rescue and rigging environments.
Key Features & Benefits
- Retro-fittable swivel convertors for fixed loops and anchor points
- Available in D-shackle (compact) and Bow-shackle (multi-attachment) options
- Hot-forged aluminium shackles and CNC-machined swivel bodies
- Roller thrust bearings for smooth rotational efficiency
- User-maintainable grease port for longer bearing life
- Double-locking high-tensile stainless-steel axles
- Textile-friendly radiused attachment points
- Shackle uses 4mm and 2mm Allen keys for secure locking
Technical Details
Why Choose the DMM Focus Swivel?
A fixed eye that can be clipped, spliced or swaged into place, rather than needing a separate connector, is what sets this apart from a standard swivel — it retrofits directly onto wire strops, rigging plates and harness bridges you already have. Choose the D-shackle Focus S for a neat, single attachment point, or the Bow-shackle Focus L when a setup needs to handle loading across the shackle from multiple directions.
Also Known As
Also searched for as: DMM Focus S/L, Compact Swivel Convertor, DMM SW440/SW450, retro-fittable swivel.
FAQs
What is the difference between the D and Bow versions?
The D-shackle (Focus S) is compact and ideal for tidy single attachments, while the Bow-shackle (Focus L) offers more internal volume for complex rigging setups.
Can these be retrofitted to existing Compact Swivels?
Yes, they are designed to be interchangeable components within the Compact Swivel system.
Are they suitable for use with textile elements?
Yes, the rounded, textile-friendly eyes allow safe use with slings, webbing and rope-based connectors.
Do they rotate smoothly under load?
Yes, roller thrust bearings provide smooth, reliable rotation even when loaded.
Can the bearings be maintained?
Yes, the built-in grease port allows simple user maintenance to extend bearing longevity.
Climbing Hardware
| Min Breaking Strength | 26kN |
|---|---|
| Weight | 63g/70g |
| Material | Aluminium |
| Working Load Limit (WLL) | 3kN |
