Compact Rigging Pulley 13mm Rope
SKU: ISC | IS-RP048A1
Key Features
- 85kN MBS, 17kN WLL, hot-forged aluminium

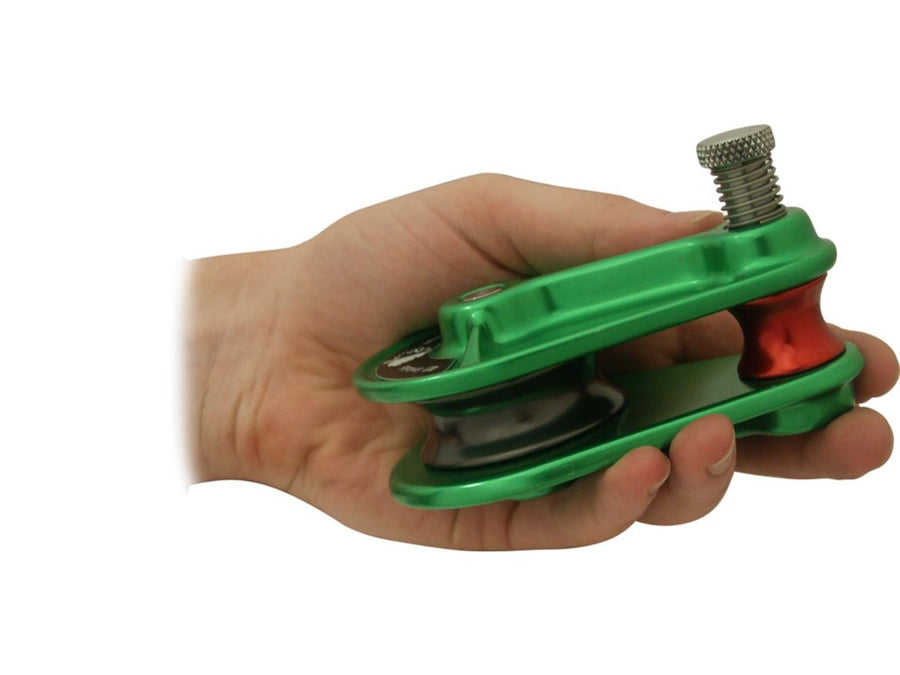

- Half the size of standard small rigging pulley, 490g
- Dual sheave: 13mm working line, 16mm topping strop
- CE 0120 approved, individually serial numbered
- Regular price
- €117,95
- Sale price
- €117,95 Ex VAT
- Regular price
-
Free Delivery Over £75 *
Worldwide Shipping from the UK
Trusted UK Arborist Retailer
30-Day Easy Returns
Product information & specifications
ISC Compact Rigging Pulley 13mm Rope
The ISC Compact Rigging Pulley 13mm Rope is a high-strength professional rigging pulley designed for arborist lowering, lifting and controlled dismantling applications. At approximately half the size of the standard small rigging pulley and weighing only 490g, it delivers an impressive strength-to-weight ratio for demanding tree rigging work.
Manufactured using hot-forged aluminium pulley plates, this compact rigging pulley provides excellent dynamic load-bearing capacity while keeping weight and bulk to a minimum. With an 85kN minimum breaking strength and a 17kN working load limit, it is ideal for professional arborists who need compact hardware without compromising strength.
Key Features
- ISC Compact Rigging Pulley for professional arborist rigging
- Designed for use with 13mm working rope
- Approximately half the size of the standard small rigging pulley
- Lightweight design weighing only 490g
- 85kN minimum breaking strength
- 17kN working load limit
- Hot-forged aluminium pulley plates for high strength
- Spring-lock closure mechanism
- Individually serial numbered for traceability
- Approved to CE 0120 Machinery Directive

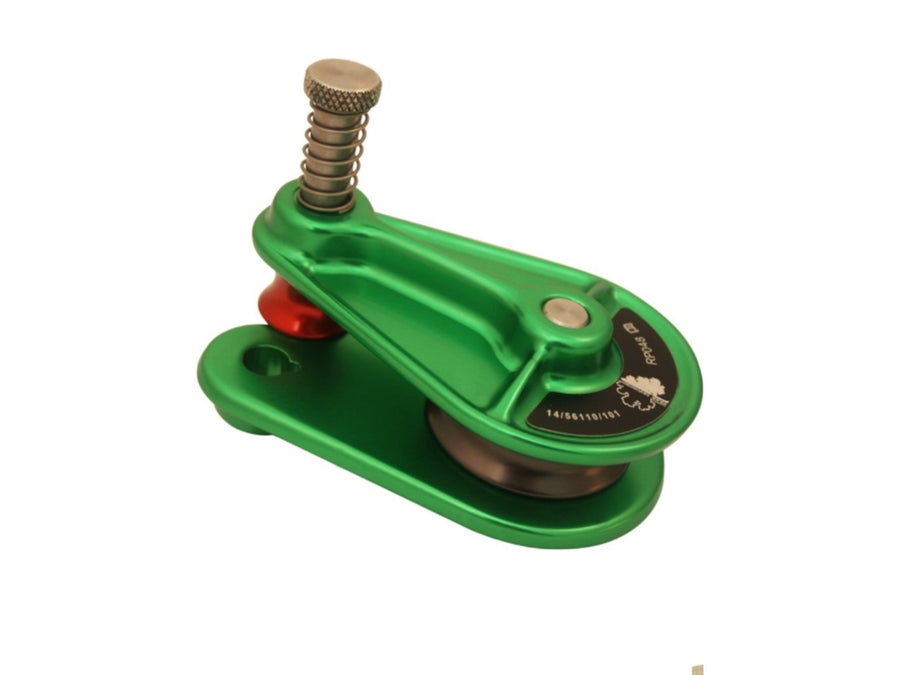

Dual Sheave Rope Capacity
The pulley features separate working line and topping strop sheaves, allowing it to handle demanding rigging configurations while maintaining controlled rope movement.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | ISC Compact Rigging Pulley 13mm Rope |
| Weight | 490g / 1lb approx. |
| Minimum Breaking Strength | 85kN / 19,000lbf |
| Working Load Limit | 17kN / 3,800lbf |
| Pulley Plate Material | Hot-forged aluminium |
| Closure | Spring-lock closure mechanism |
| Approved Standard | CE 0120 Machinery Directive |
Rope Compatibility
| Sheave | Rope Diameter | Strength Rating |
|---|---|---|
| Working Line / Grey Sheave | 13mm / 1/2" | 38kN / 8,500lbf |
| Topping Strop / Red Sheave | 16mm / 5/8" | 74kN / 16,650lbf |
Why Choose the ISC Compact Rigging Pulley?
With its hot-forged aluminium construction, compact size, high strength rating and spring-lock closure, the ISC Compact Rigging Pulley delivers excellent performance for professional tree rigging systems. The separate working line and topping strop sheaves genuinely simplify complex rigging configurations that would otherwise need two separate pulleys.
Pairs Well With
Also Known As
Also searched for as: ISC compact pulley, 13mm rigging pulley, dual sheave rigging pulley, arborist lowering pulley.
FAQs
How much smaller is this than a standard rigging pulley?
Approximately half the size of the standard small rigging pulley, while weighing only 490g.
What is the minimum breaking strength?
85kN, with a 17kN working load limit.
What rope sizes does it accept?
13mm on the working line sheave (38kN rated) and 16mm on the topping strop sheave (74kN rated).
What is the closure mechanism?
A spring-lock closure for secure, efficient operation during rigging setup.
Is it individually traceable?
Yes, each pulley is individually serial numbered and approved to CE 0120 Machinery Directive.
Ideal For
- Professional arborist rigging systems
- Tree dismantling and lowering operations
- Compact rigging setups where weight matters
- Controlled lowering with 13mm rigging rope
